78
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
KDL-46S3000 ONLY

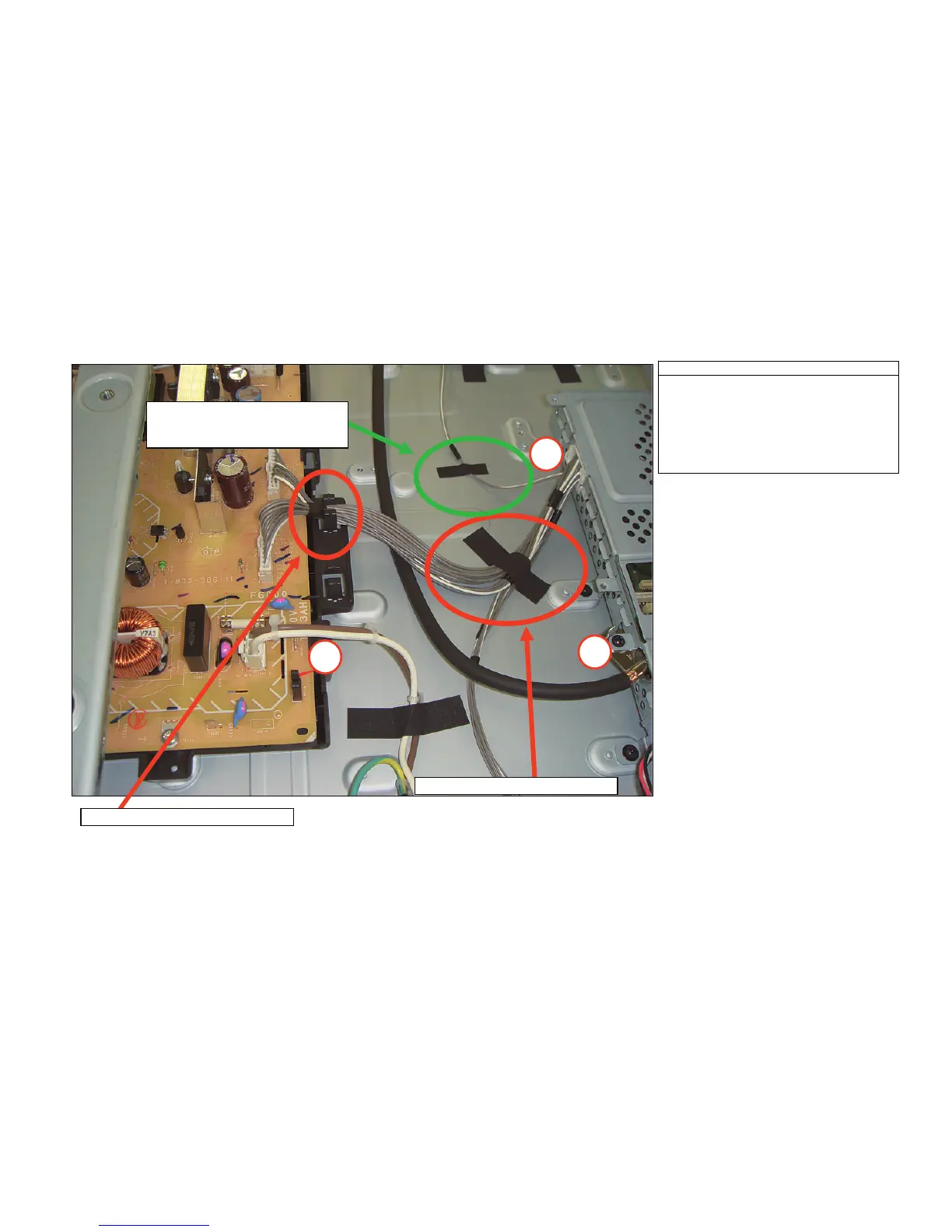

1. Route/Dress Core-Block cables as shown
2. Put Attention on the position of Sheet Core
C and the routing of the cables between
G3-Bd and Core Block.
OPERATION PROCESS
1
Dress G3-Bd Cables in G-Bracket Clip
Apply Sheet Core C to dress cables.
Apply LCD Tape to dress H1 cables.
Use UL tape on H1 cables as Ref.
Use "Score Line" in Panel as Ref.
1
2
CORE BLOCK HARNESS (CONTINUED)
To Next Page
