KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
KDL-46S3000 ONLY

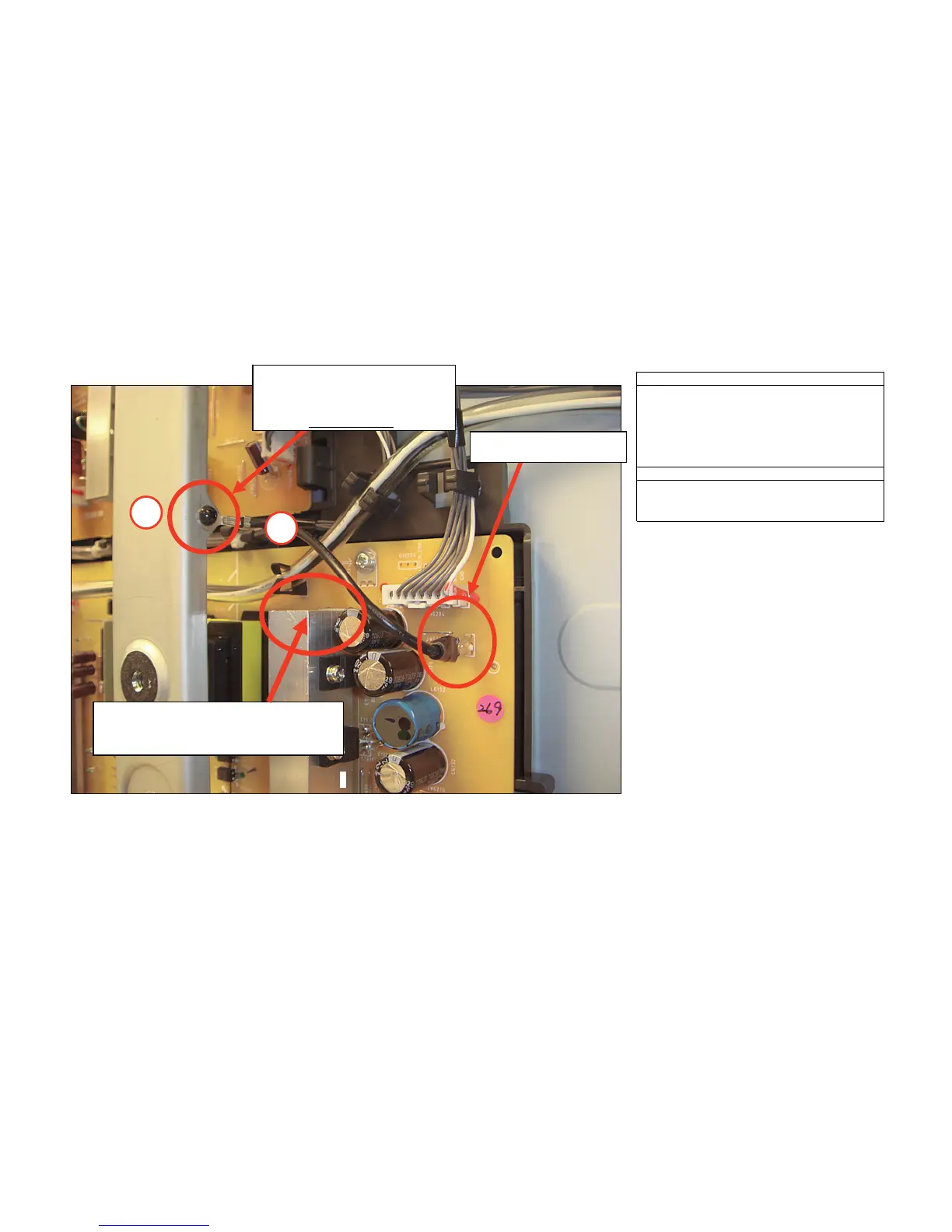

Attach ESD Grounding wire as shown
shown.
NOTE: 3x8mm Screws are located.
3mm TORQUE: 6.0kg.cm (+-1.0kg.cm)
OPERATION PROCESS
TORQUE SPECIFICATION
Install 3x8mm screw to GND Tab
on R VESA Bracket(LEFT SIDE).
NOTE: This screw can be applied
off-line as
pre-assembly operation.
Install Faston Tab on G3-Bd
(CN6003).
2
1
CAUTION:
DRESS GND. WIRE AWAY FROM HEAT SINK
SHARP EDGE.
VESA BRACKER GROUND WIRE
