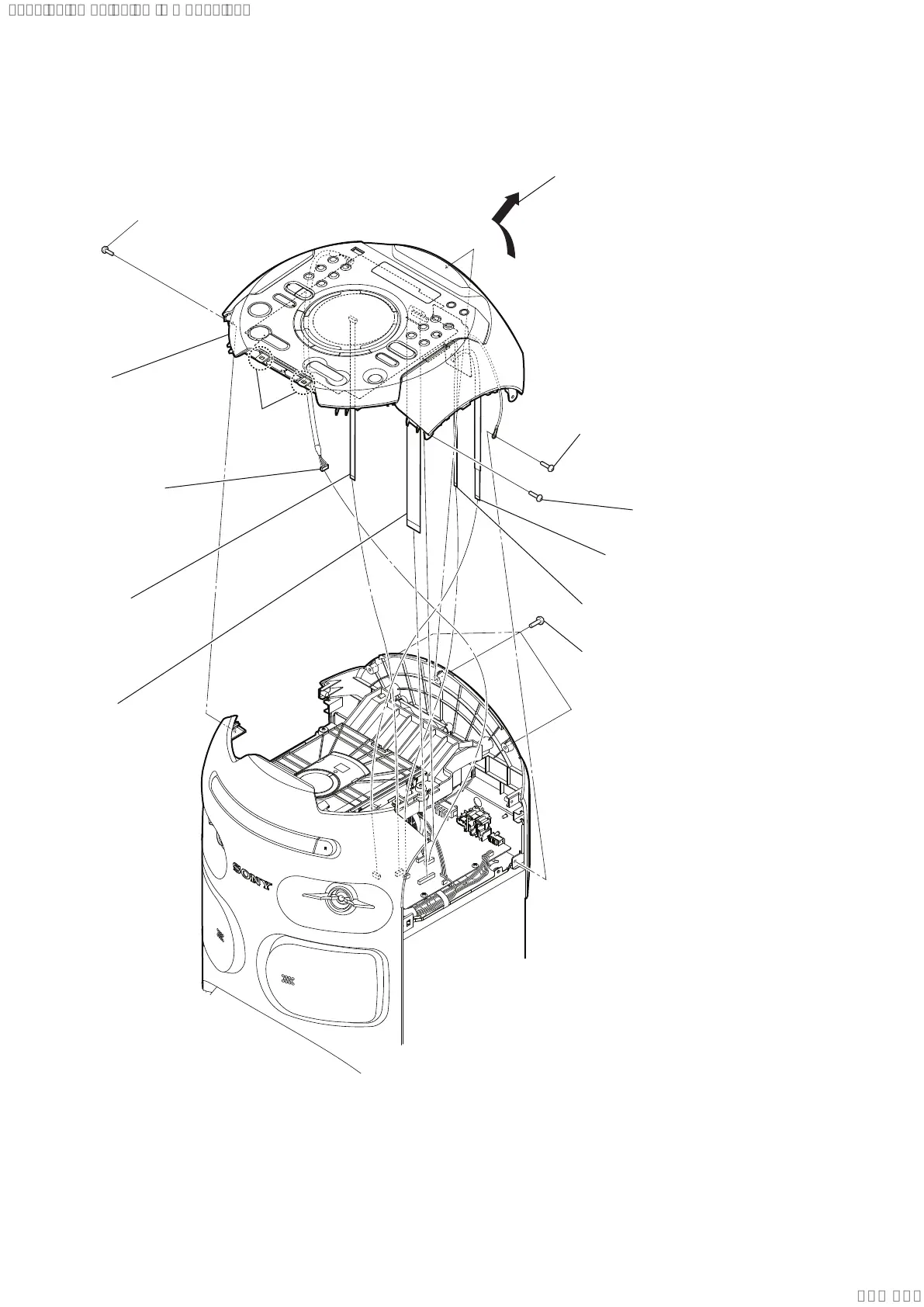

2-3. TOP PANEL SECTION
two claws
7 three screws
(+BVTP 3 × 8) (BLACK)
8 one screw
(+BVTP 3 × 8) (SILVER)
9 Remove the panel, top section
in the direction of the arrow.
0
2 flexible flat cable
(9 core) (CN902)
3 flexible flat cable
(6 core) (CN105)
4 flexible flat cable
(15 core) (CN103)
5 flexible flat cable
(7 core) (CN120)
6 CN451 (5P)
1 one screw
(+BVTP 3 × 8) (SILVER)
8 one screw
(+BVTP 3 × 8) (SILVER)
qa panel, top section
SYSSET
2019/03/0500:47:46(GMT+09:00)
