Sony MHC-V42D - Loading Panel Assy

MHC-V42D
13

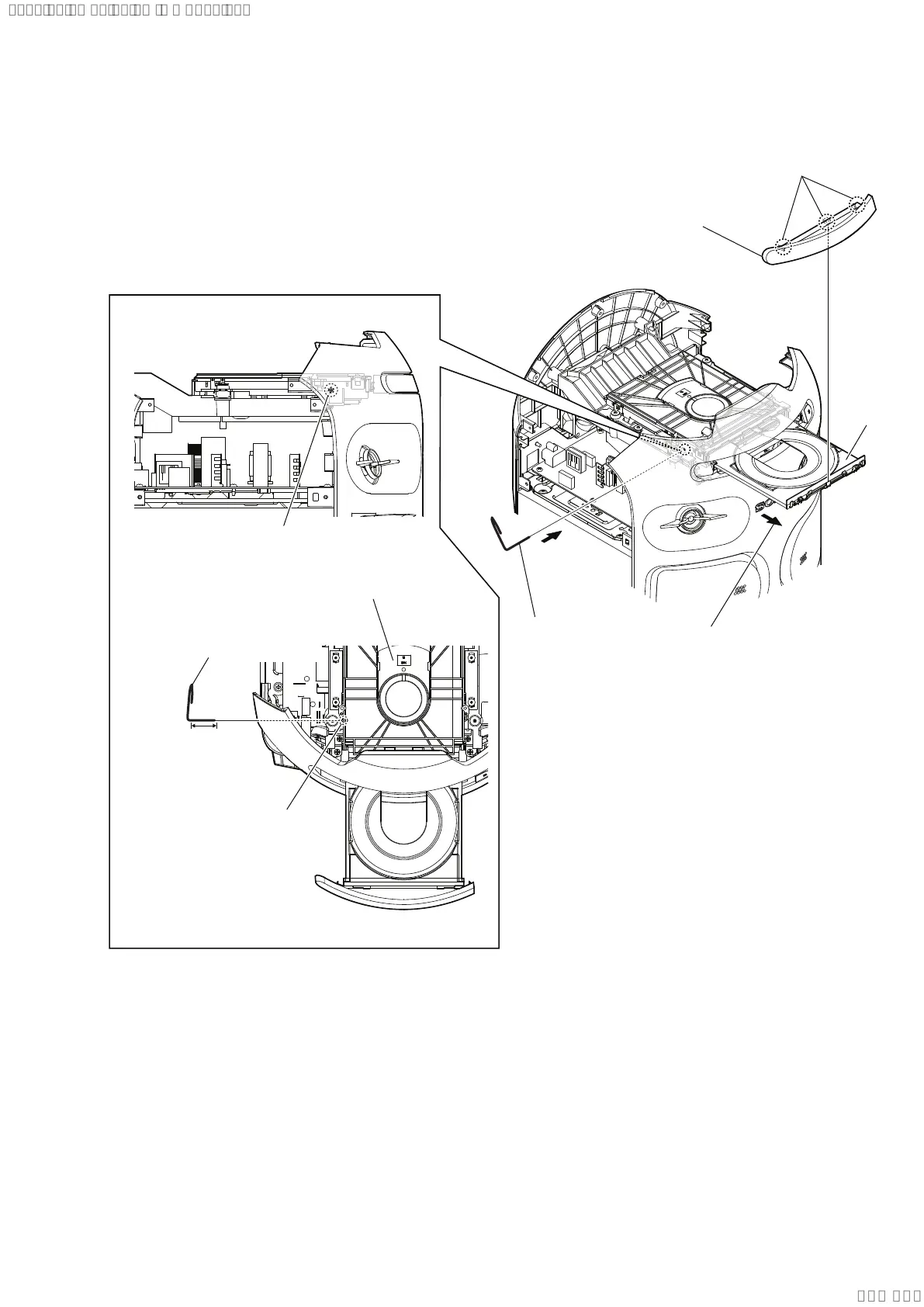

2-4. LOADING PANEL ASSY
1 Insert the clip etc.
2 Draw out the tray.
tray
4 panel, loading assy
hole
DVD mechanism
deck
Insert the clip etc. processed to the
length of 5 cm or more in the hole
on the side of the CDM and push.
5 cm or more
Note : Push after it inserts it
in this hole well.
- Left view -
- Top view -
tray
3 three claws
