Sony MHC-V42D - CDM Section

MHC-V42D
14

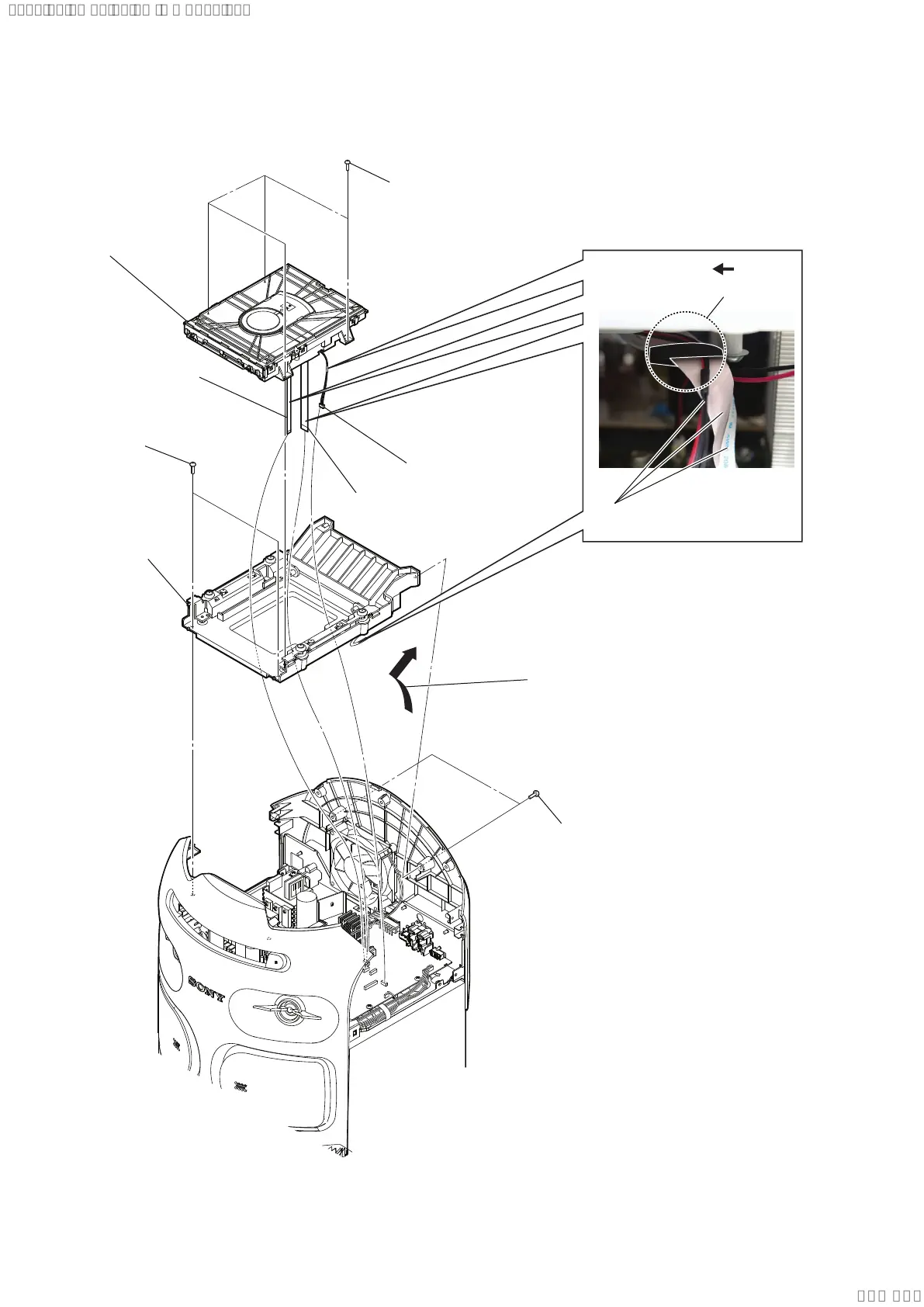

2-5. CDM SECTION
9 four screws
(+BVTP 3 × 8) (SILVER)
1 flexible flat cable
(24 core) (CN302)
3 CN402 (4P)
5 two screws
(+BVTP 3 × 8) (BLACK)
6 two screws
(+BVTP 3 × 8) (SILVER)
8 bracket, CDM
7 Remove the CDM section
in the direction of the arrow.
2 flexible flat cable
(5 core) (CN303)
0 CDM90-DVBU204//C
• Wire setting
4 Remove the wires and
FFC from the clip, coating.
clip, coating
front side
SYSSET
