Sony MHC-V42D Service Manual

51
MHC-V42D
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

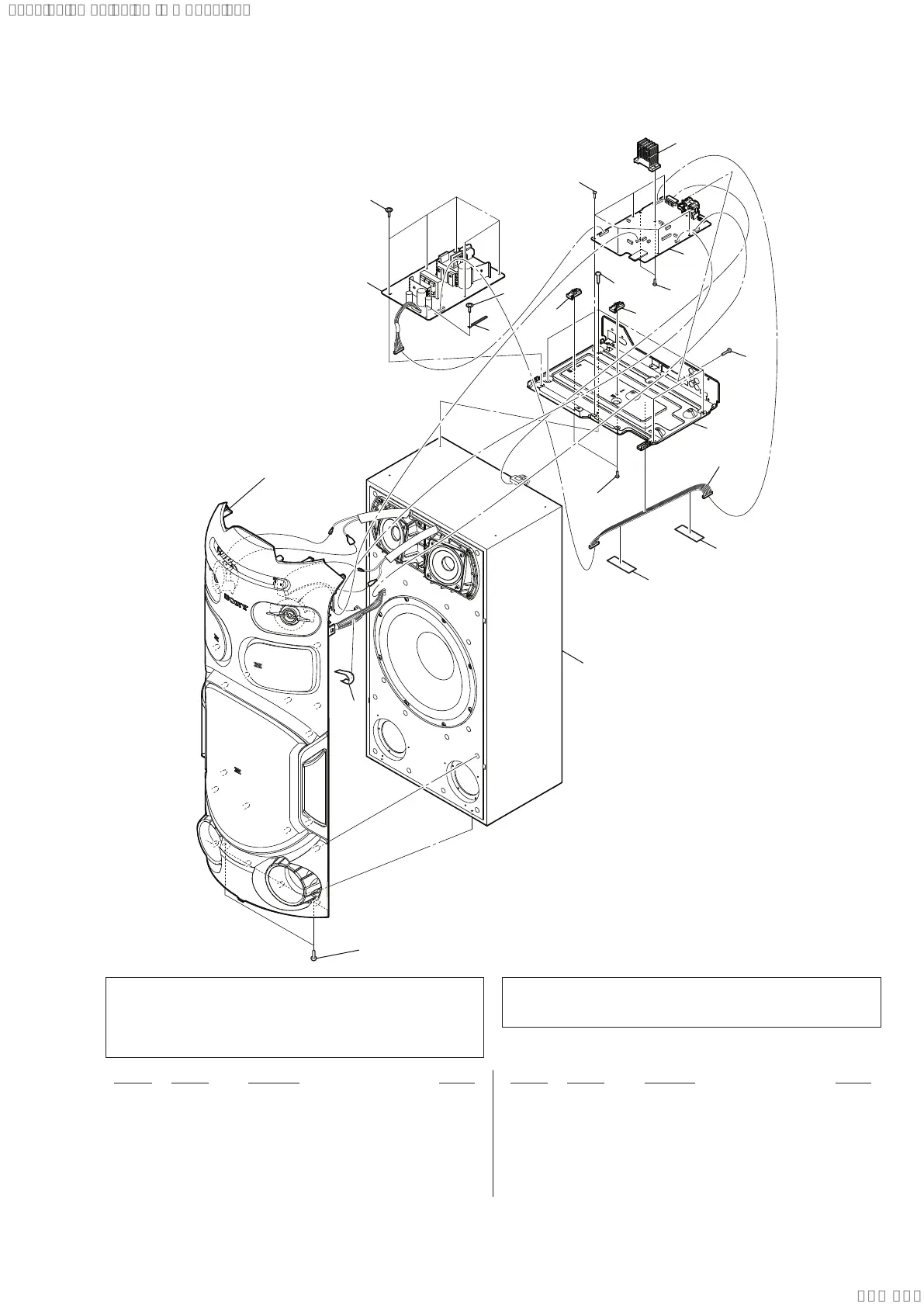

7-5. CHASSIS SECTION
Note 1: When the MOTHERBOARD board is replaced, spread
thecompoundreferringto“NOTEOFREPLACINGTHE
IC2002 ON THE MOTHERBOARD BOARD AND THE
MOTHERBOARD MOUNTED PC BOARD” on servicing
notes (page 6).
Note 2: WhenthecompleteMOTHERBOARDboardisreplaced,
besure toreferto“DESTINATION SETTINGMETHOD”
on page 5.
front panel section
#2
#2
ns
ns
ns
ns
ns
speaker cabinet section
ns
ns
ns
#2
205
203
204
202
201
201
ns
206
201 2-677-839-01 +PWH 3X8 (SUMITITE)
0 202 A-2226-524-A SMPS MOUNTED PC BOARD (AR, TH, E12, LA9)
0 202 A-2228-975-A SMPS MOUNTED PC BOARD (EMC)
(AEP, UK, RU, MY, AUS, E4, E93)
203 3-252-833-01 SCREW (M3), (+) P
9 204 A-2228-423-A MOTHERBOARD MOUNTED PC BOARD
(for SERVICE) (EXCEPT AEP, UK)
9 204 A-2228-427-A MOTHERBOARD MOUNTED PC BOARD
(for SERVICE) (AEP, UK)
205 4-874-614-02 SCREW (1) (3.5X14), TAPPING
206 4-874-614-12 SCREW (1) (3.5X14), TAPPING
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
ns not supplied
SYSSET
2019/03/0500:47:46(GMT+09:00)

Sony MHC-V42D Specifications

General

Speaker type	-
Speaker placement	Floor
Built-in amplifier	Yes
Number of woofer drivers	1
Number of tweeter drivers	2
Type	Home audio mini system
Control type	Buttons, Rotary
Cassette deck	No
Product color	Black
Disc loading type	Tray
Number of optical discs	1 discs
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Quantity per pack	1 pc(s)
RMS rated power	- W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Mid-range driver diameter	80 mm
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Volume control	Digital
Power source	Battery
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	20
Recording on	USB
Playback modes	Normal, Repeat, Shuffle
Playback disc formats	CD audio, DVD-Audio, VCD
Audio formats supported	AAC, MP3, WAV, WMA
Video formats supported	MPEG1, MPEG4, XVID

Weight and Dimensions

Depth	300 mm
Width	328 mm
Height	799 mm
Weight	12600 g
