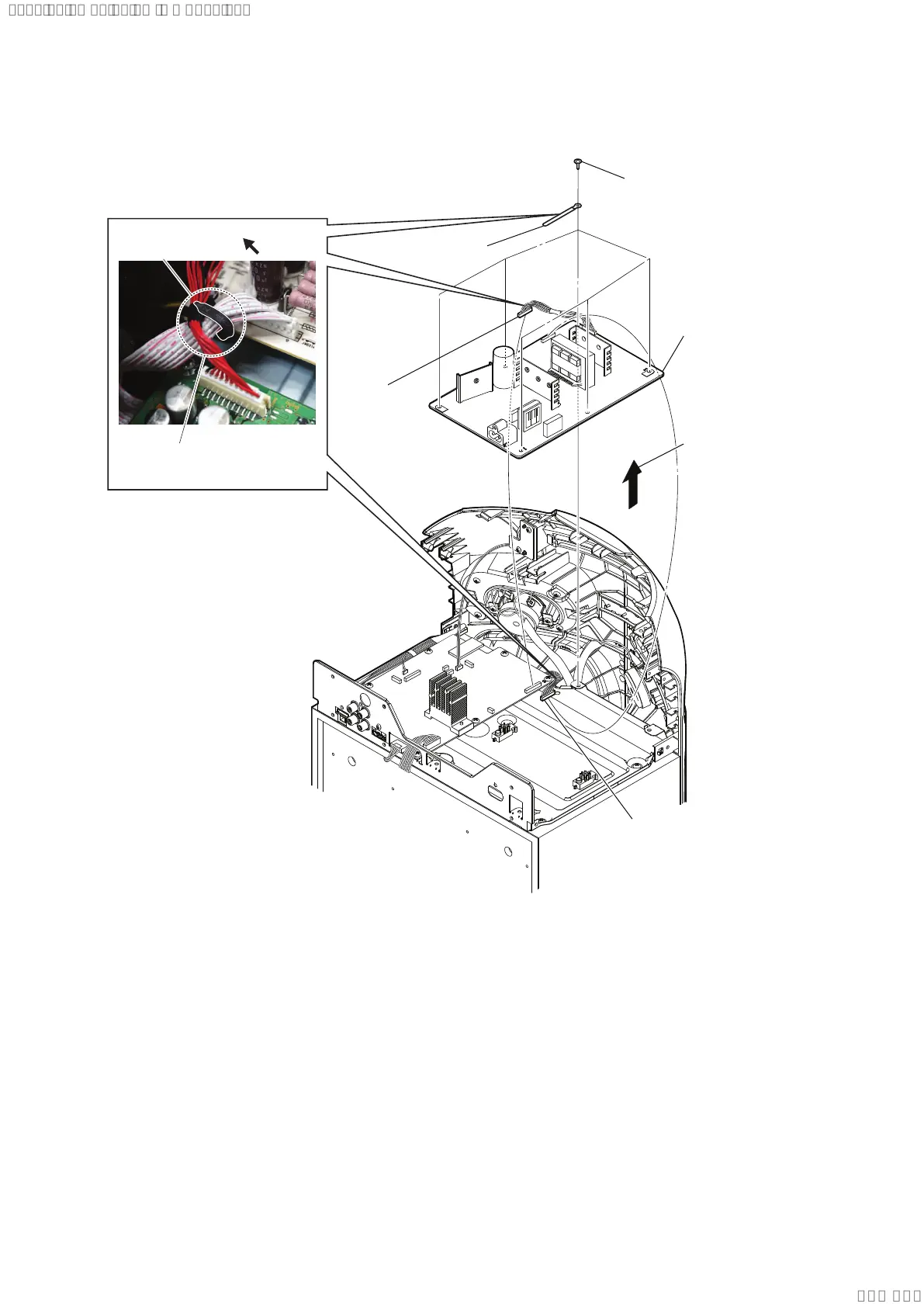

2-8. SMPS BOARD
- Rear view -
7 Remove the SMPS
board in the direction
of the arrow.
1 CN6500 (8P)
2 CN001 (11P)
4 six screws
(+PWH 3 × 8 (SUMITITE))
5 clip, coating
6 SMPS board
(AR, TH, E12, LA9)
SMPS (EMC) board
(AEP, UK, RU, MY, AUS, E4, E93)
clip, coating
• Wire setting
front side
3 Remove the wires from the
clip, coating.
