Sony MHC-V42D Service Manual

47
MHC-V42D
SECTION 7
EXPLODED VIEWS
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
numberintheexplodedviewsarenotsup-
plied.
• Color Indication ofAppearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
PartsColor Cabinet’sColor

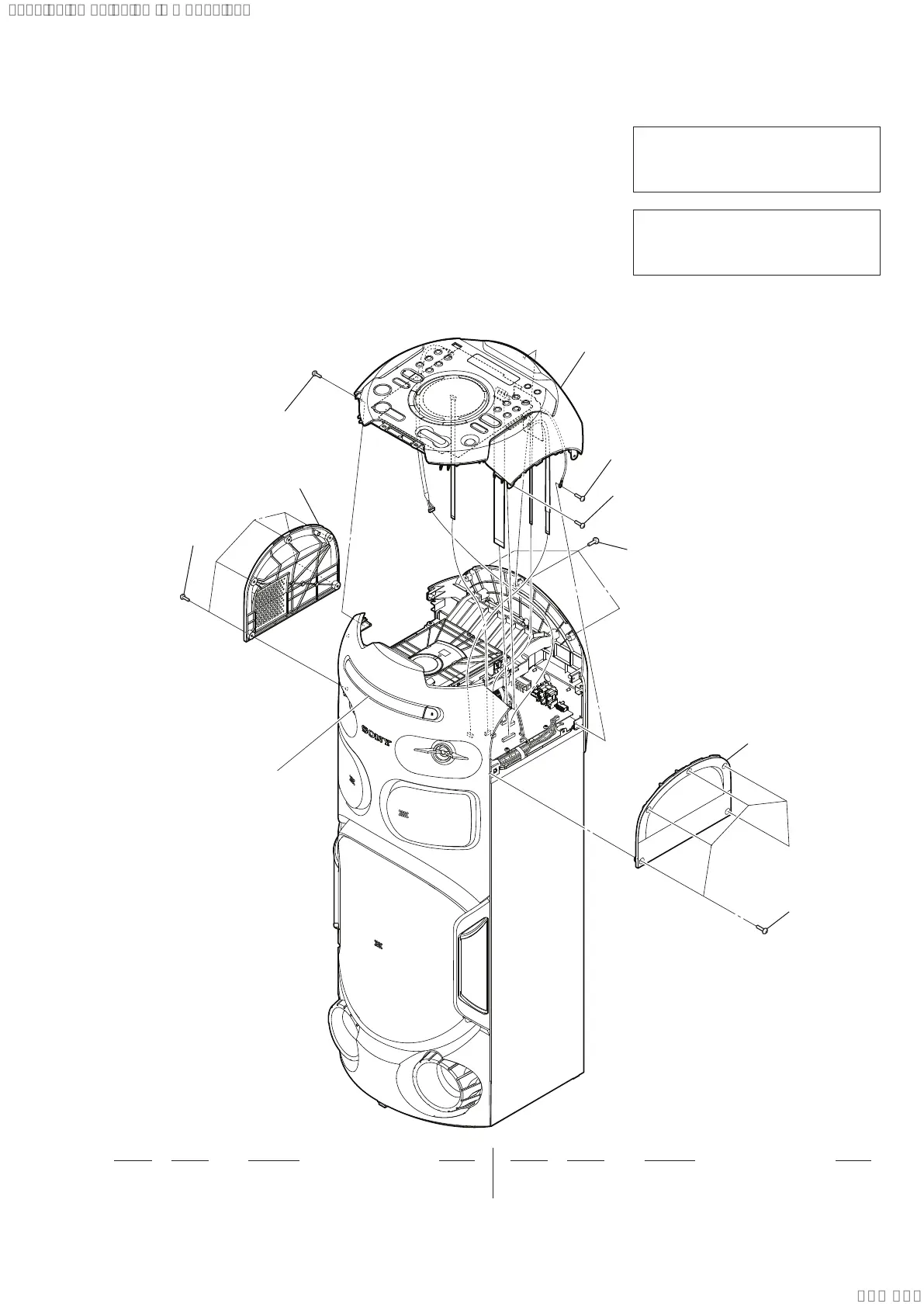

7-1. SIDE PANEL (L), (R)
0 1 4-726-159-01 PANEL, SIDE (L)
0 2 4-726-160-01 PANEL, SIDE (R)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identied by mark 0
or dotted line with mark 0 are critical for
safety.
Replaceonlywithpartnumberspecied.
Thecomponentsidentiedbymark9 con-
taincondentialinformation.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
#1
2
1
#1
#1
#2
#2
#2
loading panel section
top panel section
SYSSET
2019/03/0500:47:46(GMT+09:00)
