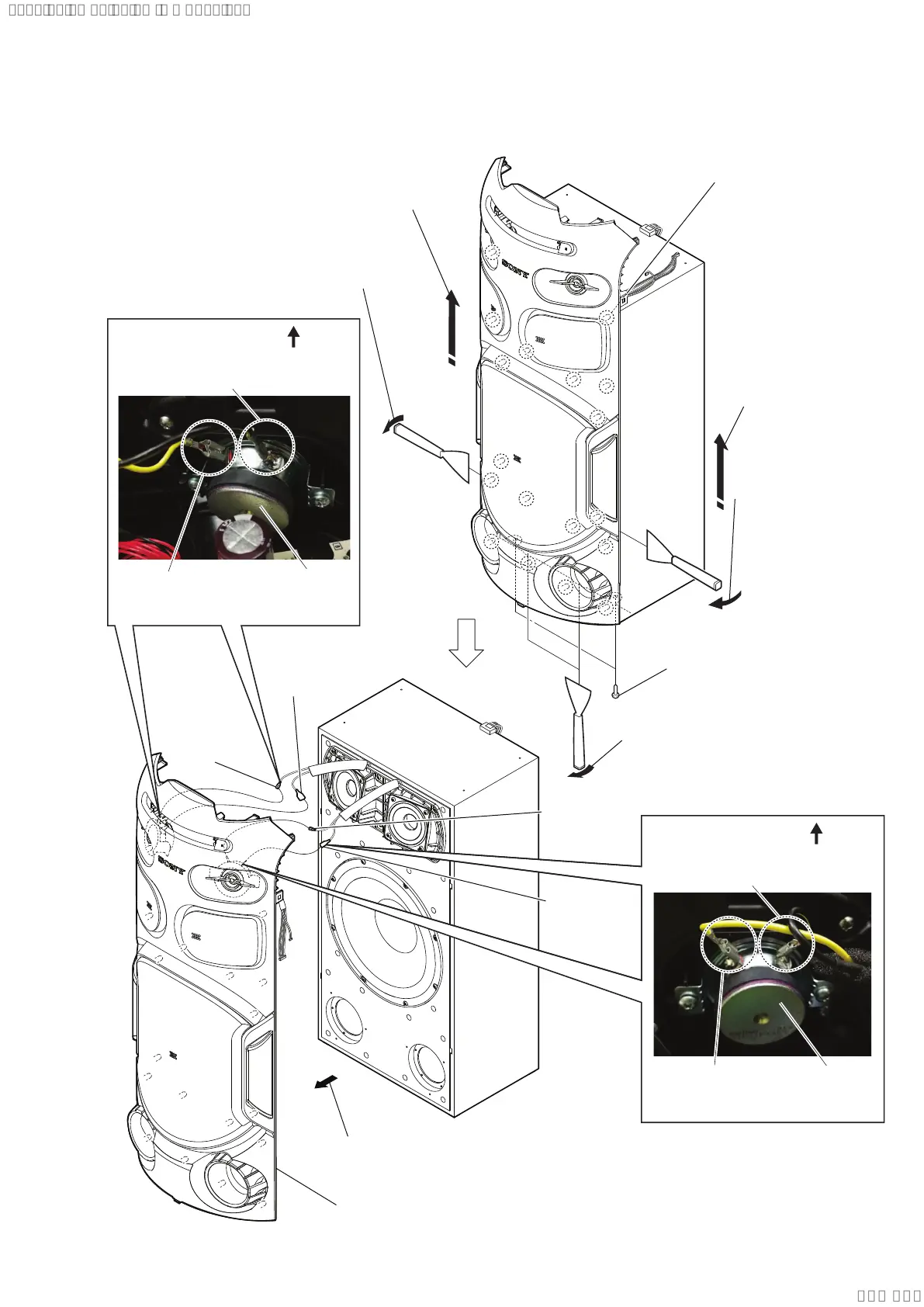

2-10. FRONT PANEL SECTION
2 Insert the jig into a space
and slowly remove the
panel, front section.
Note 1: When using a jig,
please work so as
not to injure panel,
front section and
speaker cabinet.
2 Insert the jig into a space and slowly remove
the panel, front section.
Note 1: When using a jig, please work so as
not to injure panel, front section and
speaker cabinet.
2 Insert the jig into a space and slowly remove the
panel, front section.
Note 1: When using a jig, please work so as
not to injure panel, front section and
speaker cabinet.
3 All bosses are removed while moving
jig in the direction of the arrow and
panel, front section is removed.
4 terminal
(narrow side)
[yellow/black]
5 terminal
(narrow side)
[yellow/black]
5 terminal
(wide side)
[yellow]
4 terminal
(wide side)
[yellow]
3 All bosses are removed
while moving jig in the
direction of the arrow and
panel, front section is
removed.
6 Remove the panel, front
section in the direction of an arrow.
7 panel, front section
total eighteen bosses
1 two screws
(3.5 × 14), TAPPING
• Wire setting
top side
Push the protrusion,
and remove the terminal
(wide side) [yellow].
Push the protrusion, and remove
the terminal (narrow side) [yellow/black].
loudspeaker
(4cm) (SP2)
• Wire setting
top side
Push the protrusion,
and remove the terminal
(wide side) [yellow].
Push the protrusion, and remove
the terminal (narrow side) [yellow/black].
loudspeaker
(4cm) (SP4)
SYSSET
