MHC-V42D
18

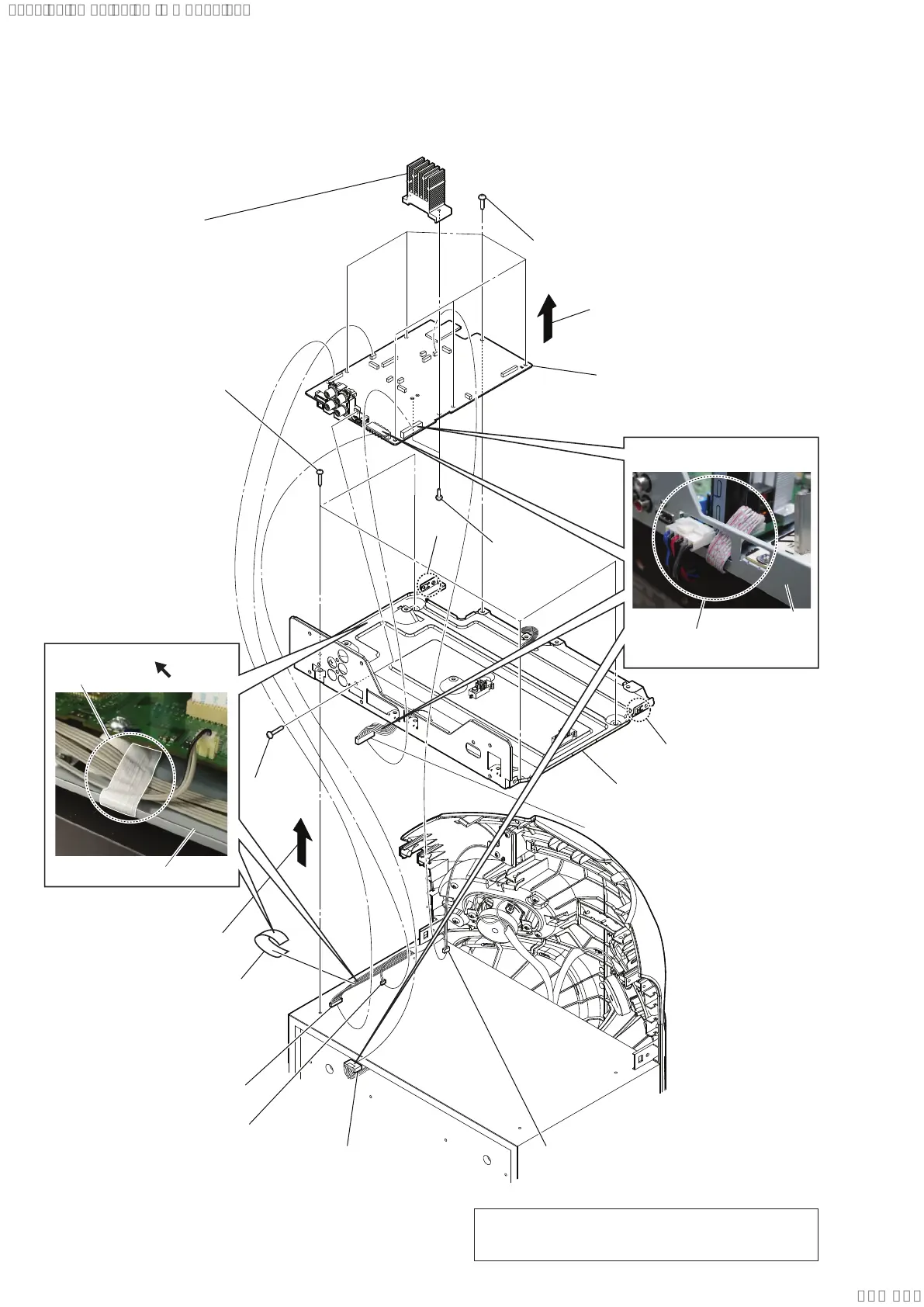

2-9. MOTHERBOARD BOARD, CHASSIS SECTION
Note 1: When the MOTHERBOARD mounted pc board
is replaced, be sure to refer to “DESTINATION
SETTING METHOD” on page 5.
qg Remove the chassis in
the direction of the arrow.
- Rear view -
qs heat sink (MB-L)
When installing the heat sink (MB-L),
spread the compound referring to
“NOTE OF REPLACING THE IC2002
ON THE MOTHERBOARD BOARD
AND THE MOTHERBOARD
MOUNTED PC BOARD” on servicing
notes (page 6).
Note 2:
8 six screws
(+BVTP 3 × 8) (SILVER)
9 Remove the
MOTHERBOARD board
in the direction of the arrow.
0 MOTHERBOARD board
qa two screws
(+BVTP 3 × 8)
(SILVER)
1 CN2007 (8P)
2 CN2021 (6P)
4 CN2206 (8P)
5 CN107 (2P)
6 CN127 (3P)
qd four screws
(3.5 × 14), TAPPING
qf filament tape
qh chassis
claw
claw
7 one screw
(M3)
• Wire setting
front side
chassis
filament tape
• Wire setting
chassis
3 Remove the wires through
the chassis hole.
