Sony MHC-V42D Service Manual

52
MHC-V42D
251 X-2597-804-1 PANEL, FRONT ASSY
252 4-951-620-51 SCREW (2.6), +BVTP
253 A-2225-550-A IR MOUNTED PC BOARD
254 4-726-139-01 WINDOW, IR
255 4-986-971-12 +BV TAPPING SCREW TYPE-2 3.5
256 A-2225-349-A FR PARTY MOUNTED PC BOARD
257 A-2225-351-A SW LED MOUNTED PC BOARD
258 A-2225-350-A FL PARTY MOUNTED PC BOARD
259 4-747-179-01 FOOT, RUBBER
260 4-745-428-01 FRONT, LENS L
261 4-745-429-01 FRONT, LENS R
SP2 1-859-317-11 LOUDSPEAKER (4CM) (Tweeter: L-CH)
SP4 1-859-317-11 LOUDSPEAKER (4CM) (Tweeter: R-CH)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
ns not supplied

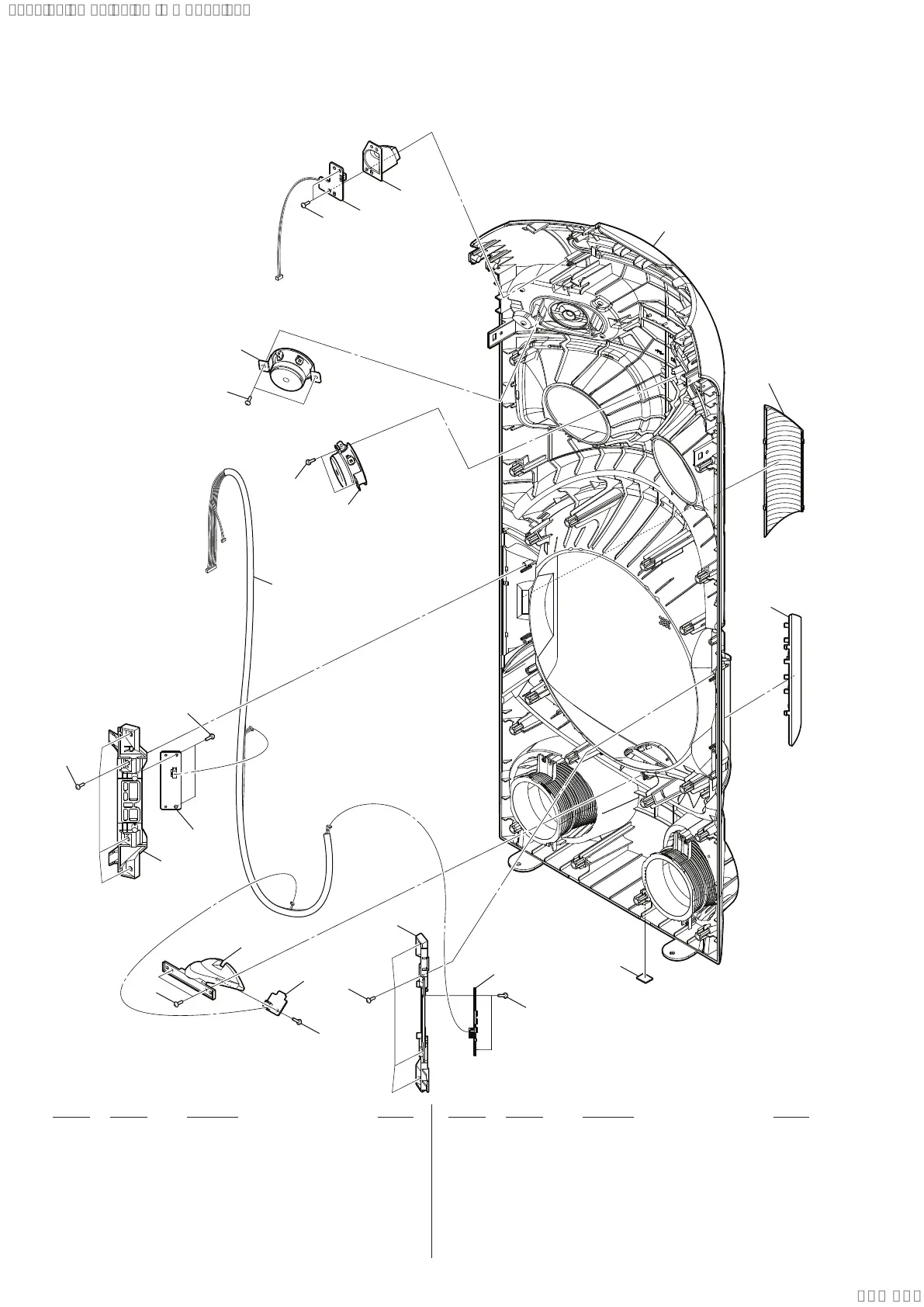

7-6. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
#2
#2
#2
#2
ns
ns
260
ns
ns
254
252
255
251
261
252
252
256
253
258
259
257
255
SP4
SP2
SYSSET
