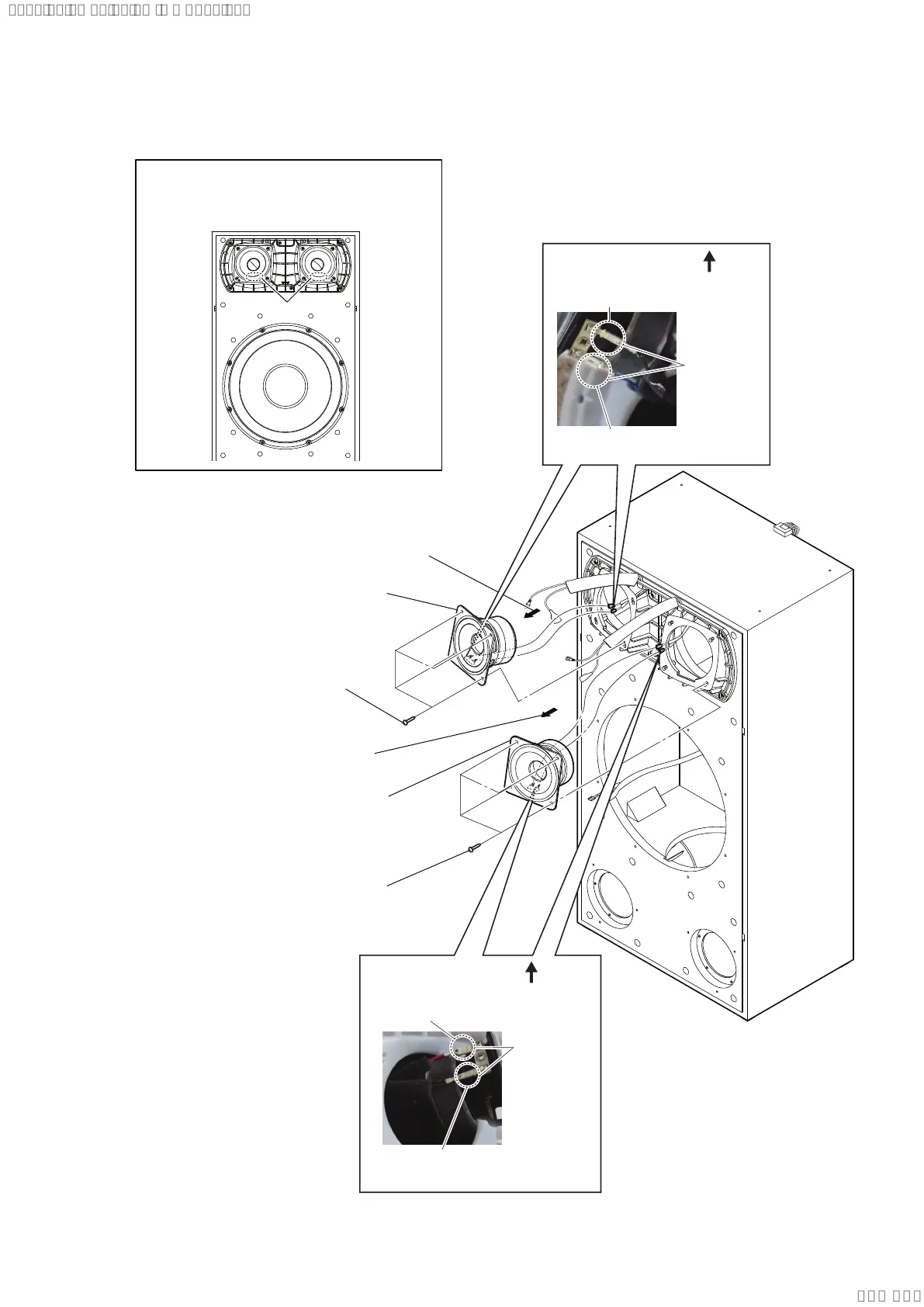

2-12. LOUDSPEAKER 8CM (MID: L-CH) (SP1),
LOUDSPEAKER 8CM (MID: R-CH) (SP3)
4 loudspeaker 8cm (mid: R-CH) (SP3)
1 four screws
(3.5 × 14), TAPPING
3 Remove the loudspeaker 8cm
(mid: R-CH) (SP3) in the direction
of the arrow.
7 Remove the
loudspeaker 8cm
(mid: L-CH) (SP1)
in the direction of the
arrow.
8 loudspeaker 8cm (mid: L-CH) (SP1)
5 four screws
(3.5 × 14), TAPPING
terminal position
• Installation direction for the
loudspeaker 8cm (mid: L-ch) (SP1),
loudspeaker 8cm (mid:R-ch) (SP3)
• Wire setting
top side
Push the protrusion, and remove
the terminal (wide side) [blue].
Push the protrusion, and remove
the terminal (narrow side) [black].
protrusion
• Wire setting
top side
Push the protrusion, and remove
the terminal (narrow side) [red/black].
Push the protrusion, and remove
the terminal (wide side) [red].
protrusion
