MHC-V42D
2
SAFETY-RELATED COMPONENT WARNING!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
1.5 kΩ0.15 µF
AC
voltmeter
(0.75 V)
Parts on Set
Earth Ground

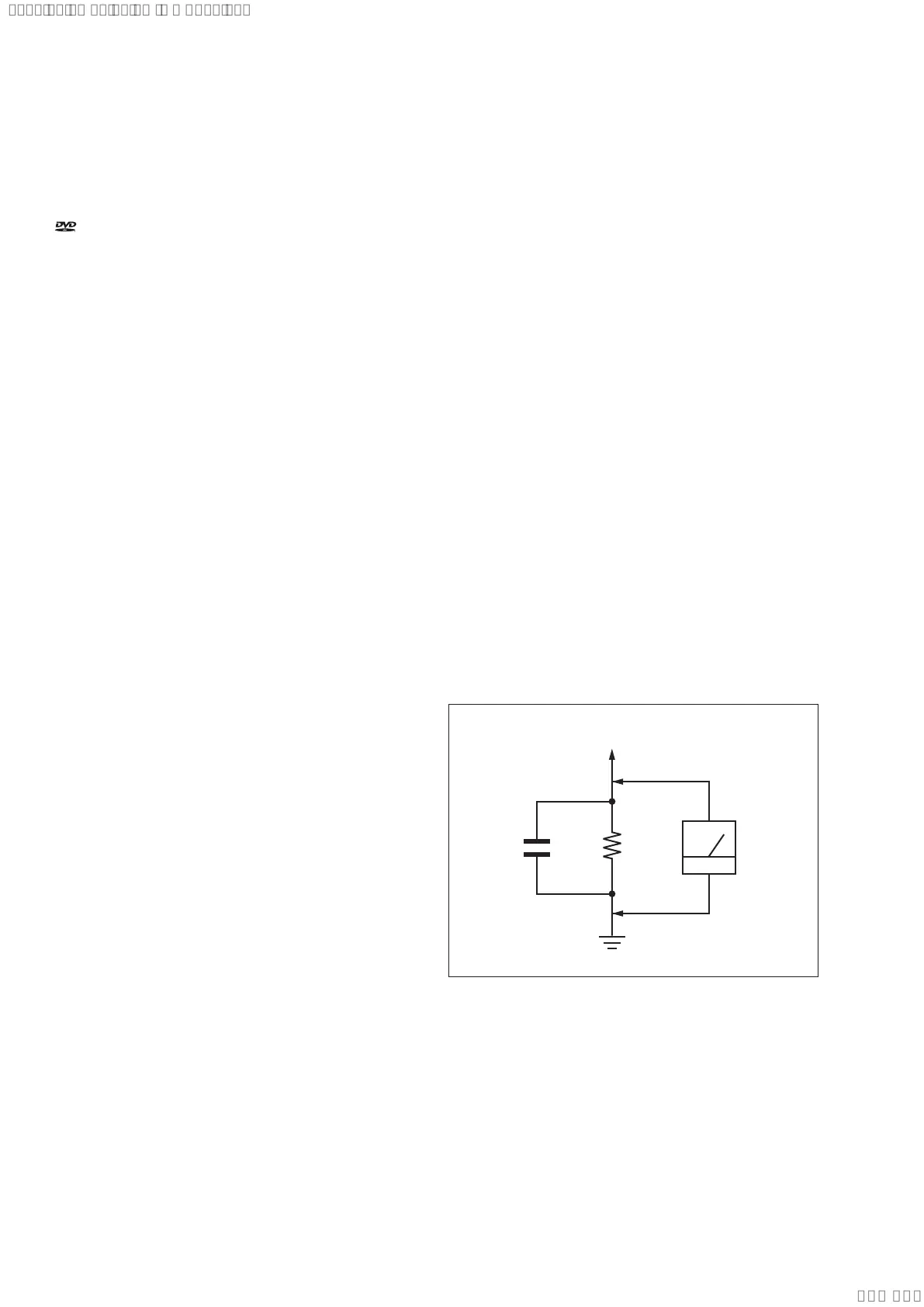

Fig. A. Using an AC voltmeter to check AC leakage.
NOTES ON CHIP COMPONENT REPLACEMENT
• Neverreuseadisconnectedchipcomponent.
• Noticethattheminussideofatantalumcapacitormaybe
damaged by heat.
FLEXIBLE CIRCUIT BOARD REPAIRING
• Keepthetemperatureofthesolderingironaround270°C
during repairing.
• Donottouchthesolderingirononthesameconductorofthe
circuit board (within 3 times).
• Becarefulnottoapplyforceontheconductorwhensoldering
or unsoldering.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage. Check
leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
of a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)
Supplied accessories
Remote control (DC 3 V) (1)
R03 (DC 1.5 V) (size AAA) batteries (2)
FM lead antenna (aerial) (1)
AC power cord (mains lead) (1)
AC plug adaptor* (1) (supplied only for certain areas)
* This plug adaptor is not for the use in Chile, Paraguay
and Uruguay. Use this plug adaptor in the countries/
regions where it is necessary.
License and Trademark Notice
•
is a trademark of DVD Format/Logo Licensing Corporation.
• “DVD+RW”, “DVD-RW”, “DVD+R”, “DVD-R”, “DVD VIDEO”,
and the “CD” logos are trademarks.
• WALKMAN
®
andWALKMAN
®
logo are registered trademarks
of Sony Corporation.
• MPEGLayer-3 audio coding technology and patents licensed from
Fraunhofer IIS and Thomson.
• Windows Media is either a registered trademark or trademark
of Microsoft Corporation in the United States and/or other
countries.
• Thisproductisprotectedby certainintellectualpropertyrights
of Microsoft Corporation. Use or distribution of such technology
outside of this product is prohibited without a license from
Microsoft or an authorized Microsoft subsidiary.
• This system incorporates Dolby* Digital.
* Manufactured under license from Dolby Laboratories. Dolby,
Dolby Audio, and the double-D symbol are trademarks of Dolby
Laboratories.
• ThissystemincorporatesHigh-DefinitionMultimediaInterface
(HDMI™) technology. The terms HDMI and HDMI High-
Definition Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. in the United States and other countries.
• “BRAVIA”isatrademarkofSonyCorporation.
• LDAC™ and LDAC logo are trademarks of Sony Corporation.
• The BLUETOOTH
®
word mark and logos are registered trade-
marks owned by the Bluetooth SIG, Inc. and any use of such
marks by Sony Corporation is under license. Other trademarks
and trade names are those of their respective owners.
• The N-Mark is a trademark or registered trademark of NFC
Forum, Inc. in the United States and in other countries.
• Android, Google Play, and the Google Play logo are trademarks
of Google LLC.
• Apple, the Apple logo, iPhone, iPod, and iPod touch are trade-
marks of Apple Inc., registered in the U.S. and other countries.
App Store is a service mark of Apple Inc., registered in the U.S.
and other countries.
• Use of the Made forApple badge means that an accessory has
been designed to connect specifically to the Apple product(s)
identified in the badge, and has been certified by the developer
to meet Apple performance standards. Apple is not responsible
for the operation of this device or its compliance with safety and
regulatory standards.
• THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL
PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND
NON-COMMERCIAL USE OF A CONSUMER FOR
(i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4
VISUAL STANDARD (“MPEG-4 VIDEO”)
AND/OR
(ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY
A CONSUMER ENGAGED IN A PERSONAL AND NON-
COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM
A VIDEO PROVIDER LICENSED TO PROVIDE MPEG-4
VIDEO.
NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY
OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT
RELATING TO PROMOTIONAL, INTERNAL AND COMMER-
CIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG
LA, L.L.C.
HTTP://WWW.MPEGLA.COM
• Allothertrademarksaretrademarksoftheirrespectiveowners.
• Inthismanual,™and
®
marks are not specified.
SYSSET
2019/03/0500:47:46(GMT+09:00)
