MXD-D40
6363

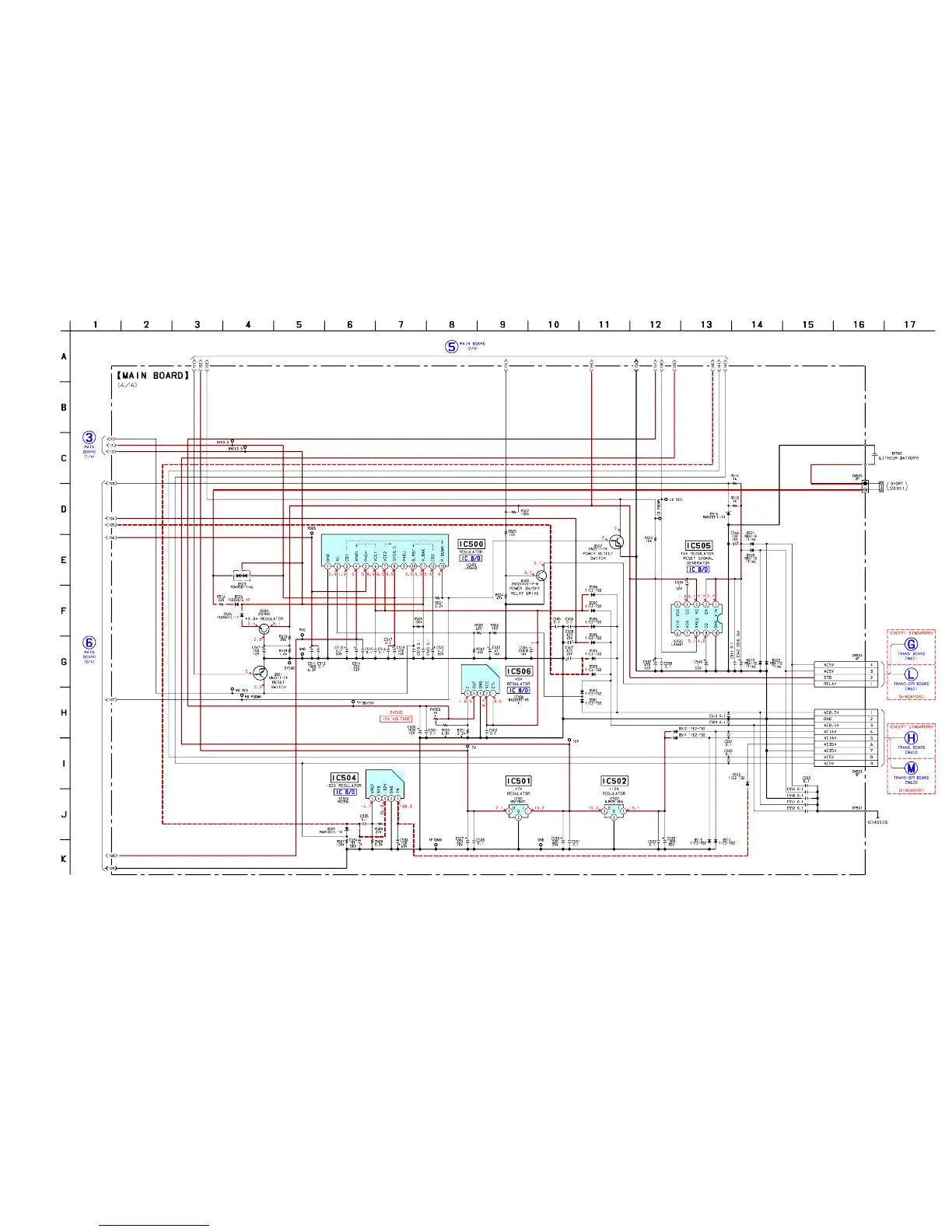

6-15. SCHEMATIC DIAGRAM – MAIN Board (4/4) – • See page 70 for IC Block Diagrams.
Note on Schematic Diagram:
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : MD, CD STOP
Note: Be sure to execute the Voltage Adjustment on page 46, whenever the asterisked parts (IC506, R550, R551, RV500), mounted
MAIN board, and CD base unit (BU-21BD53) were replaced.
(Page 60)
(Page
62)
(Page 61)
(Page 67)
(Page 69)
(Page 67)
(Page 69)
To Next Page
