Sony MXD-D40 - MD Mechanism Deck (MDM-7 X2 A); BD (MD) Board, over Write Head (HR901)

MXD-D40
22

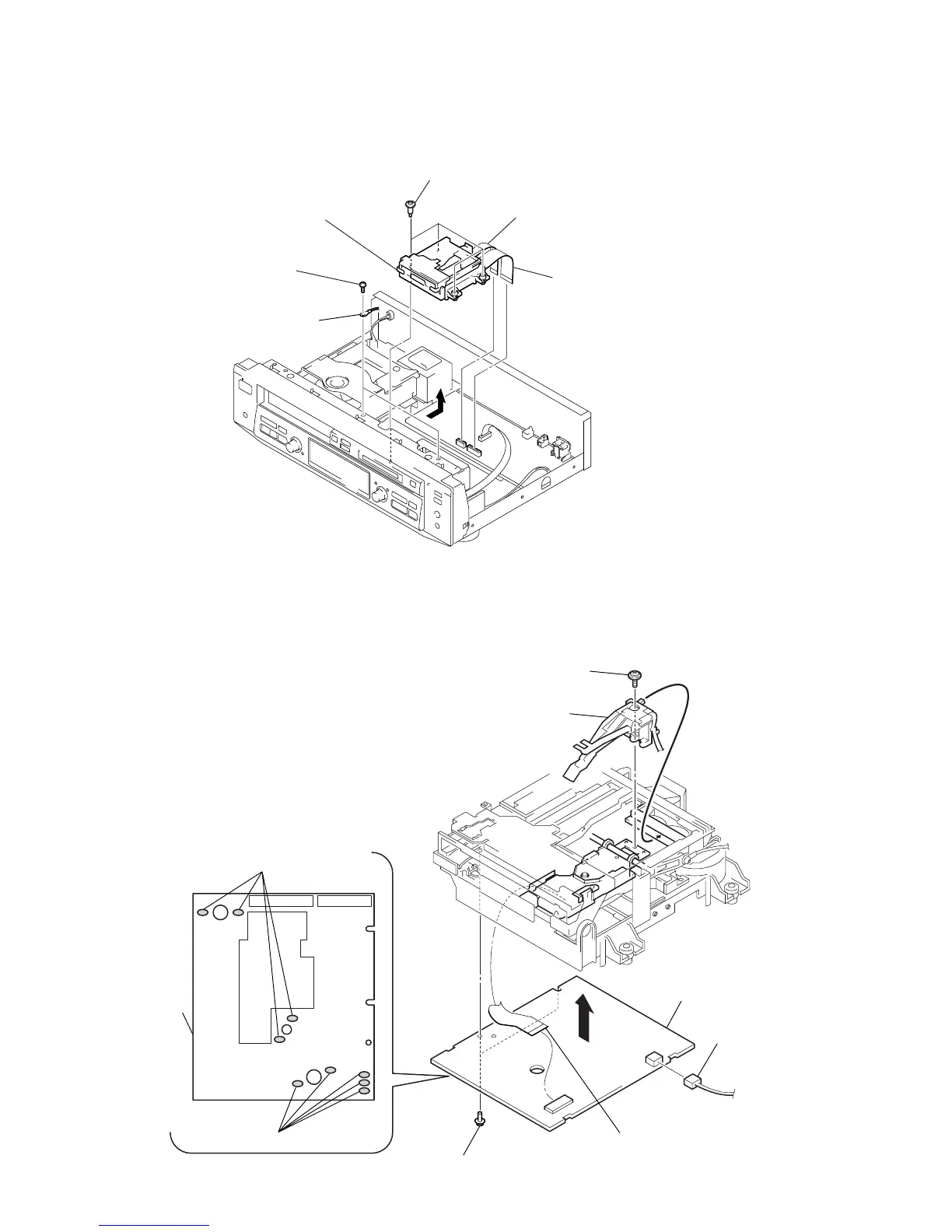

3-6. MD MECHANISM DECK (MDM-7X2A)
3 two lugs
5 MD mechanism deck
(MDM-7X2A)
4 four screws
(BVTTWH M3)
1 wire (flat type) (27core
)
(CN304)
2 two screws
(BVTT 3
× 6)
1 wire (flat type) (17core)
(CN303)
3-7. BD (MD) BOARD, OVER WRITE HEAD (HR901)
6
2 screw (P1.7 × 6)
3 over write head (HR901)
Note: By means of removing 1 connector (CN104),
BD (MD) board can be removed without
removing the over write head (HR901).
Note: The over write head (HR901) should be
handled with care as it is damaged easily.
4 Remove four solders.
4 Remove five solders.
8 BD (MD) board
1 connector
(CN104)
7 flexible board (CN101)
5 two screws (PWH1.7 × 3.5)
BD (MD) board
(side B)
