Sony MXD-D40 - Chassis Section

84
MXD-D40

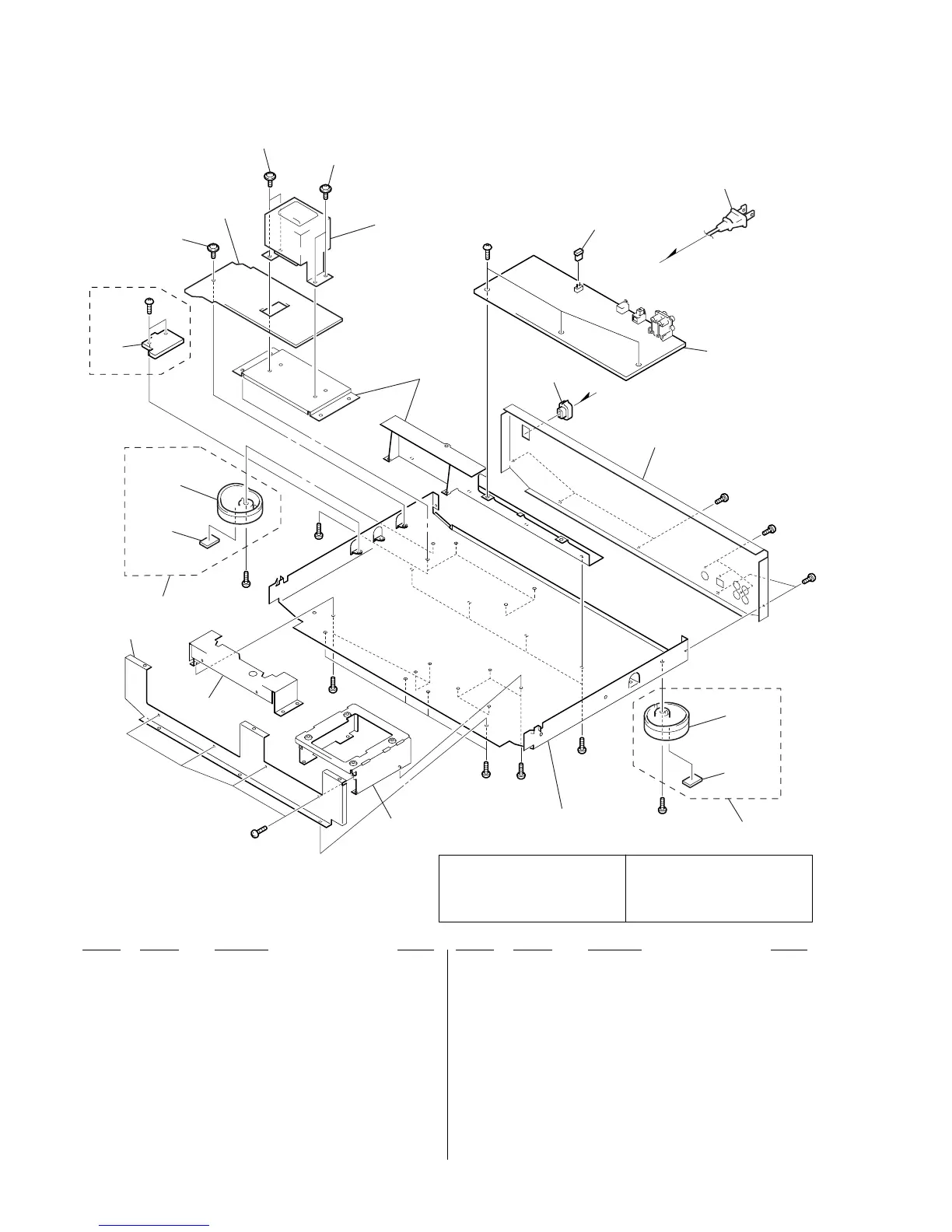

7-3. CHASSIS SECTION
#3
106
102
101
#3
#3
#3
#3
#3
#3
#3
#3
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not supplied
not supplied
102
101
107
107
110
109
107
108
103
104
105
#3
T601, T651
#3
#3
#5
Singapore
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 X-4947-208-1 FOOT ASSY (F50150S) (BLACK)
101 X-4952-298-1 FOOT ASSY (F50150S) (GOLD)
102 4-977-358-11 CUSHION
103 1-569-972-21 SOCKET, SHORT 2P
104 A-4725-638-A MAIN BOARD COMPLETE (AEP, UK)
104 A-4725-645-A MAIN BOARD COMPLETE (US, Canadian)
104 A-4725-653-A MAIN BOARD COMPLETE (Singapore)
* 105 3-703-244-00 BUSHING (2104), CORD (AEP, UK, Singapore)
105 4-966-267-12 BUSHING (FBS001), CORD (US, Canadian)
106 4-230-771-51 PANEL, BACK (US)
106 4-230-771-61 PANEL, BACK (Canadian)
106 4-230-771-71 PANEL, BACK (AEP, UK)
106 4-230-771-81 PANEL, BACK (Singapore)
107 3-703-249-01 SCREW, S TIGHT, +PTTWH 3X6
0108 1-777-071-21 CORD, POWER (AEP)
0108 1-777-071-61 CORD, POWER (Singapore)
0108 1-783-820-11 CORD, POWER (US, Canadian)
0108 1-790-226-11 CORD, POWER (UK)
109 1-677-769-11 TRANS BOARD (EXCEPT Singapore)
109 1-679-008-11 TRANS (SP) BOARD (Singapore)
110 1-679-722-11 LF BOARD (Singapore)
0T601 1-435-650-11 TRANSFORMER, POWER (Singapore)
0T651 1-435-648-11 TRANSFORMER, POWER (US, Canadian)
0T651 1-435-649-11 TRANSFORMER, POWER (AEP, UK)
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
