MXD-D40
505
504
507
510
508
511
512
506
501
503
509
502
514
515
513
520
523
516
517
518
518
519
519
523
526
525
M702
#2
#2
not
supplied

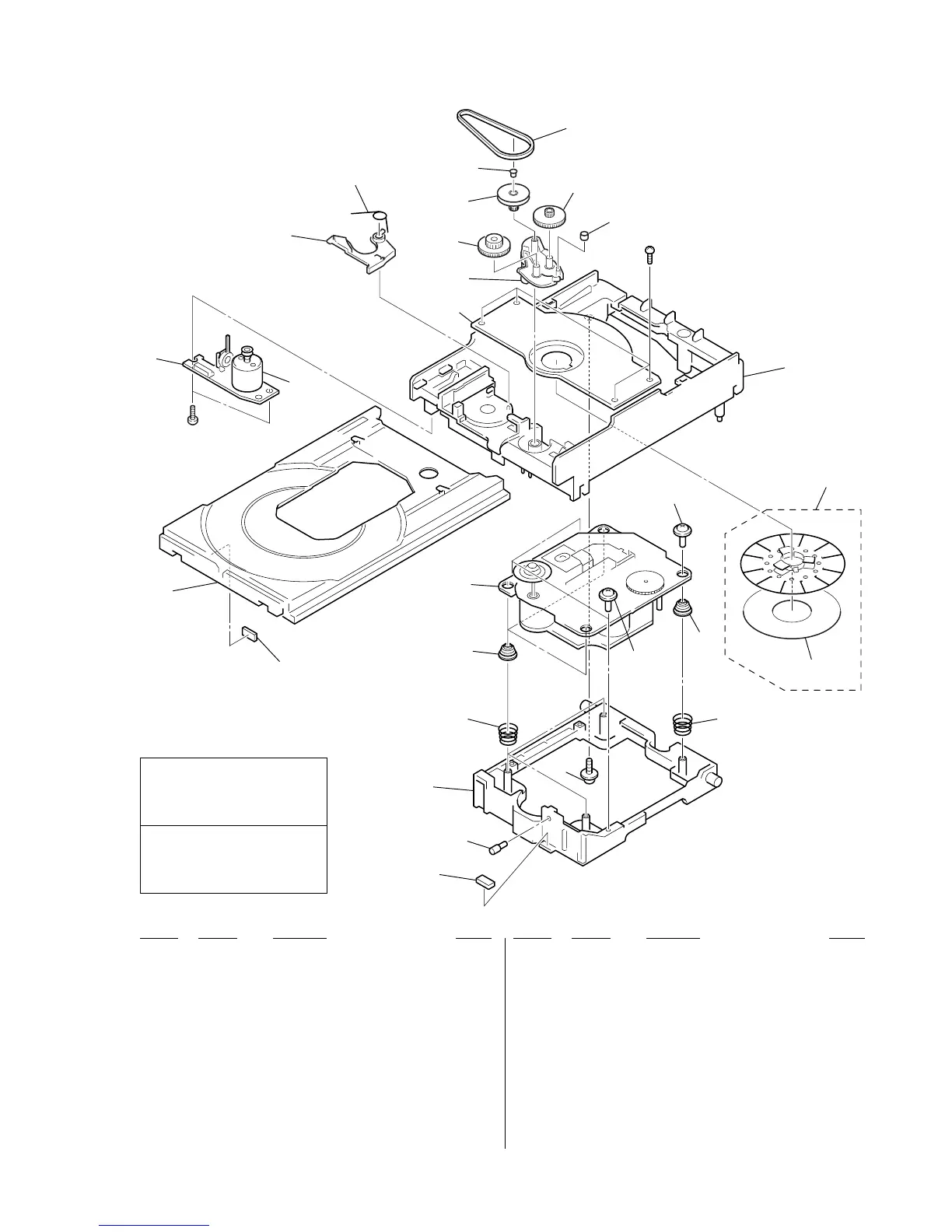

7-6. CD MECHANISM DECK SECTION
(CDM55B-21BD53)
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
501 4-226-180-21 TRAY (55-L)
502 4-925-315-31 DAMPER
503 1-674-336-21 LOADING BOARD
504 4-220-229-01 LEVER (SW)
505 4-220-239-11 SPRING, TORSION
506 4-220-233-01 CAM (CDM55)
507 4-220-238-01 GEAR (B)
508 4-220-234-01 PULLEY (LDG)
509 4-227-598-01 SPACER (55)
510 4-221-816-11 BELT (CDM55)
511 4-220-237-01 GEAR (A)
512 4-221-815-11 ROLLER
513 4-227-236-01 CHASSIS (CDM55C)
514 X-4953-233-1 PULLEY (AT) ASSY
515 4-220-951-02 SHEET (KH)
516 4-227-899-21 SCREW (DIA. 12), FLOATING
0517 A-4677-295-A BU-21BD53
518 4-230-386-01 INSULATOR (BU21)
519 4-230-389-01 SPRING, CONE COIL
520 4-227-218-21 HOLDER (AT)
523 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
525 4-228-353-11 HOLDER (55-BU21)
526 4-229-358-01 SHAFT (BU21)
M702 A-4672-771-A MOTOR (LD) ASSY (LOADING) (for CD)
