Sony MXD-D40 - MD Mechanism Deck Section-1 (MDX-7 X2 A)

85
MXD-D40

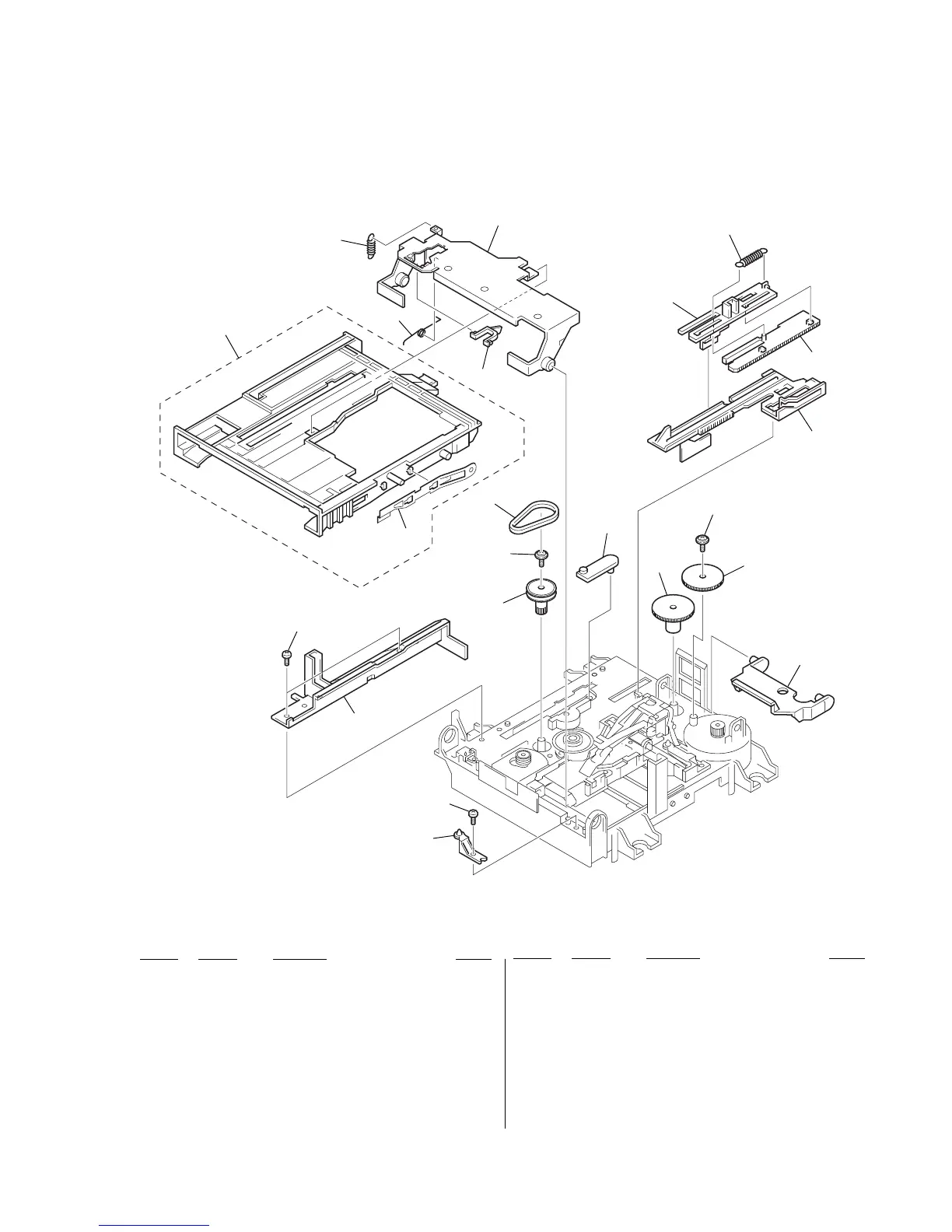

7-4. MD MECHANISM DECK SECTION-1
(MDM-7X2A)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 301 4-996-267-01 BASE (BU-D)
302 4-231-319-01 SCREW (2X6) CZN, +B (P) TRI
303 4-227-007-01 GEAR (SB)
304 4-227-025-01 BELT (LOADING)
305 3-372-761-01 SCREW (M1.7), TAPPING
306 4-227-002-01 GEAR, PULLEY
307 4-226-999-01 LEVER (HEAD)
308 X-4952-665-1 SPRING (SHT) ASSY, LEAF
309 A-4672-990-F LOCK (HOLDER)
310 4-229-533-02 SPRING (STOPPER), TORSION
311 4-227-012-01 SPRING (HOLDER), TENSION
312 4-227-019-02 PLATE (HOLDER), RETAINER
313 4-227-013-01 SPRING (EJ), TENSION
314 4-226-996-01 LIMITTER (EJ)
315 4-226-995-01 SLIDER (EJ)
316 4-226-997-04 SLIDER
317 4-226-998-01 LEVER (CHG)
318 4-227-006-01 GEAR (SA)
319 A-4735-075-A HOLDER ASSY
320 4-226-994-01 GUIDE (L)
304
305
306
302
301
307
305
320
302
311
319
312
310
309
314
313
315
316
318
303
317
308
Ver. 1.2
