Sony MXD-D40 - Schematic Diagram - MAIN Board (1;4)

MXD-D40
6060

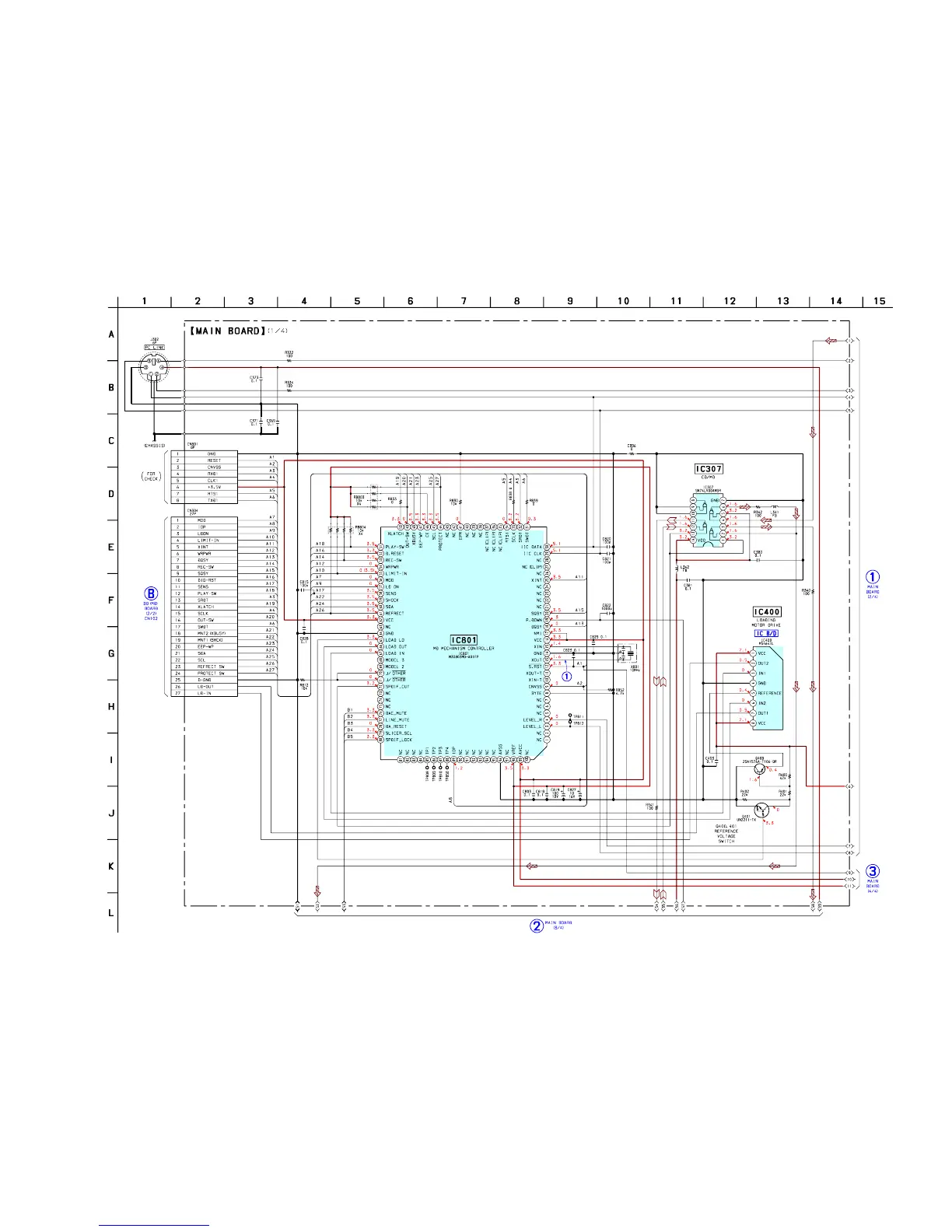

6-12. SCHEMATIC DIAGRAM – MAIN Board (1/4) – • See page 57 for Waveform. • See page 70 for IC Block Diagram.
Note on Schematic Diagram:
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : MD, CD STOP
( ) : MD PLAY
SPDIF BUFFER
(Page 55)
(Page 62)
(Page 61)
(Page 63)
