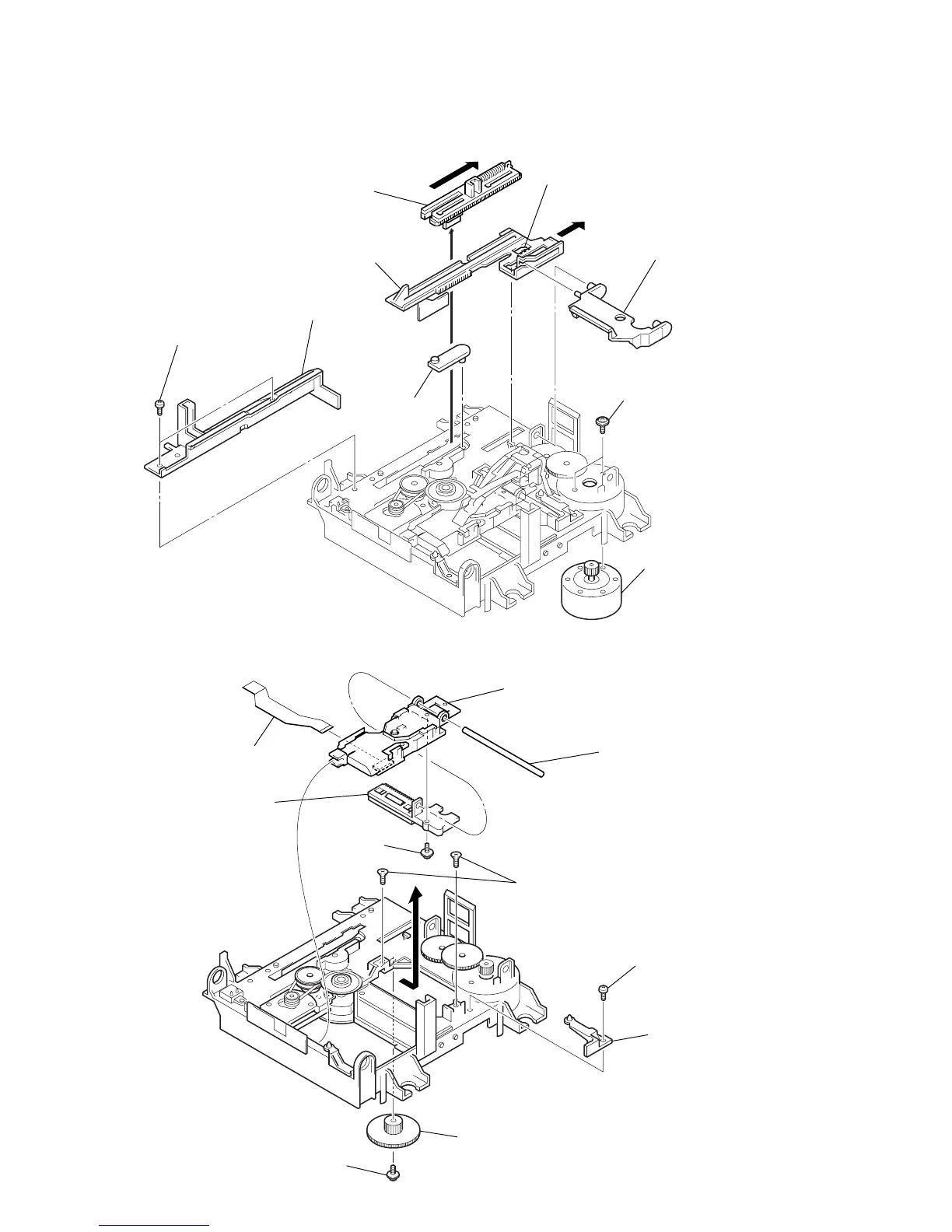

3-10. SLED MOTOR ASSY (M102)
3-11. OPTICAL PICK-UP (KMS-262A)
3
A
4 slider (EJ)
6 slider
2 guide (L)
1 two screws
(B2
× 6)
7 lever (CHG)
5 With holding the claw,
slide the slider fully in the
direction of arrow
A .
8 lever (head)
9 two screws
(PWH1.7
× 2.5)
0 sled motor assy
(M102)
8
1 flexible board
0 SL base
9 screw
(P1.7
× 6)
qa optical pick-up (KMS-262A)
7 Pull out the main shaft.
6 two screws
(KTP2
× 6)
4 screw (B2 × 6)
5 base (BU-A)
3 gear (SD)
2 screw (M1.7)
