Sony MXD-D40 - Holder (BU) Assy; BU-21 BD53, Holder (55-BU21)

MXD-D40
26

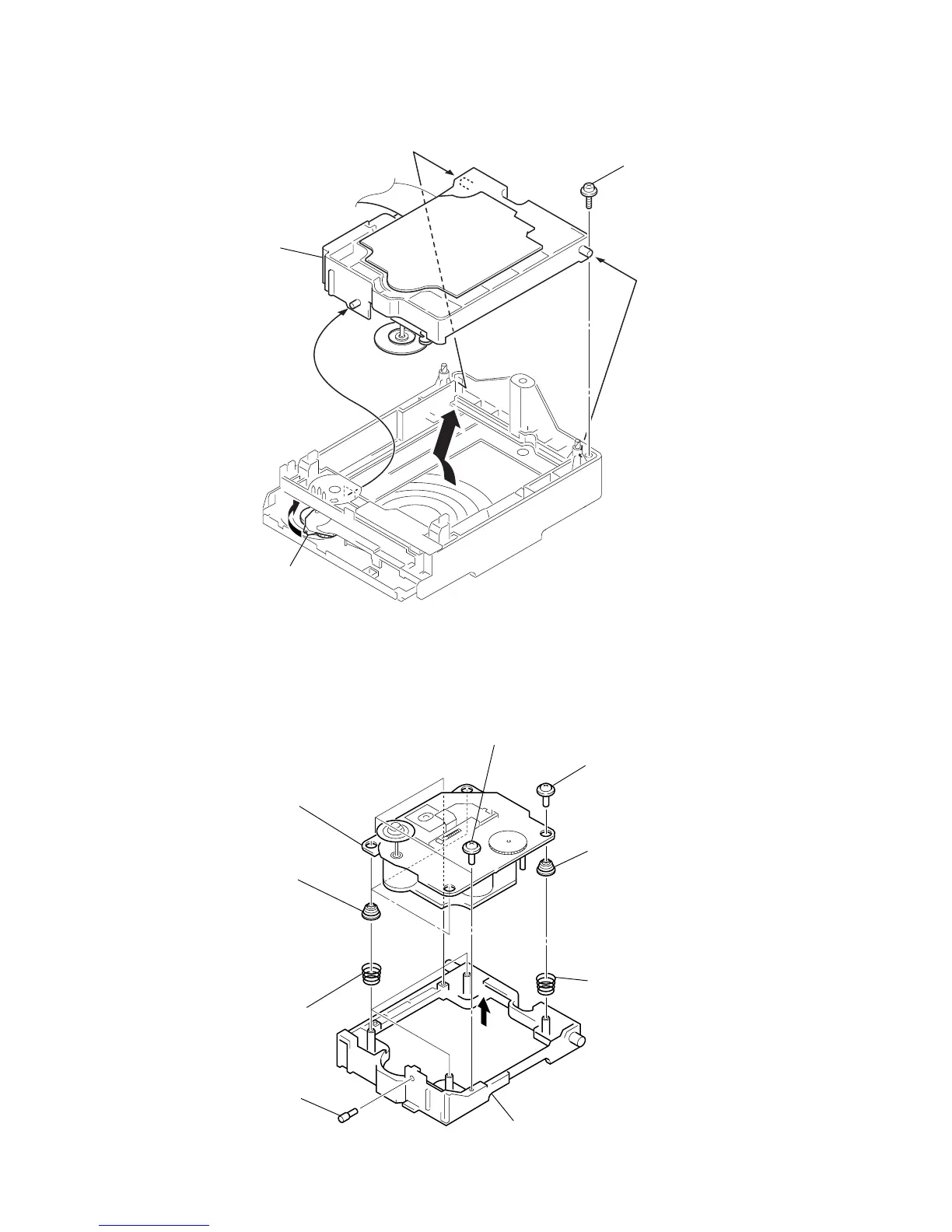

3-14. HOLDER (BU) ASSY
3-15. BU-21BD53, HOLDER (55-BU21)
1 three floating screws
(DIA. 12)
4 three insulators
(BU21)
4 insulator (BU21
)
3
6
cone coil spring
6 three cone coil springs
7 shaft (BU21)
8 holder (55-BU21)
5 base unit
(BU-21BD53)
2 floating screw
(PTPWH M2.6)
A
1 Rotate the lever (SW)
in the direction of the arrow
A .
3
2 floating screw
(PTPWH M2.6
)
4 holder (BU) assy
