Sony MXD-D40 - Schematic Diagram - BD (MD) Board (2;2)

MXD-D40
5555

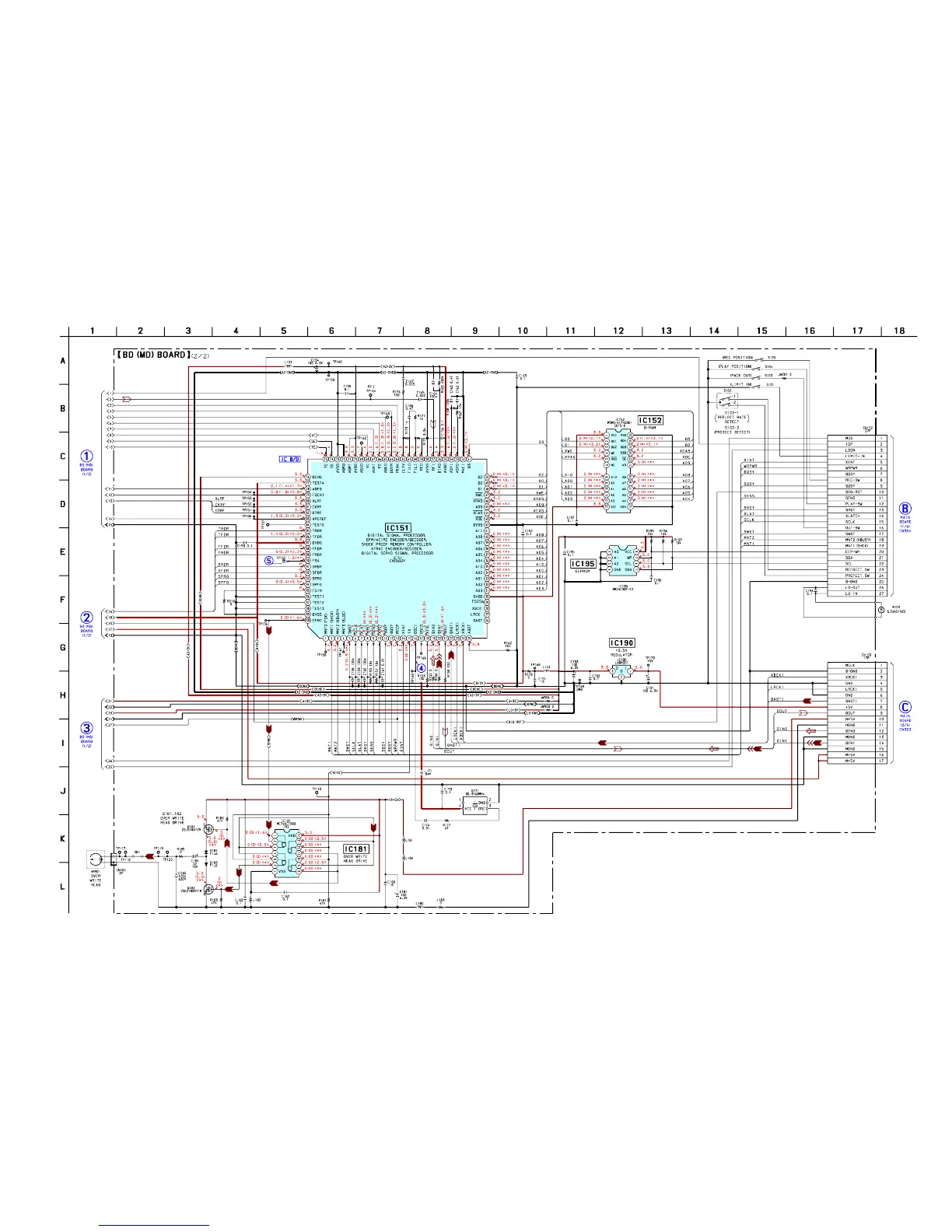

6-8. SCHEMATIC DIAGRAM – BD (MD) Board (2/2) – • See page 57 for Waveforms. • See page 51 for IC Block Diagram.
Note on Schematic Diagram:
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : MD STOP
( ) : MD PLAY
< > : MD REC
∗
: Impossible to measure
(Page 54)
(Page 54)
(Page 54)
(Page 60)
(Page 62)
