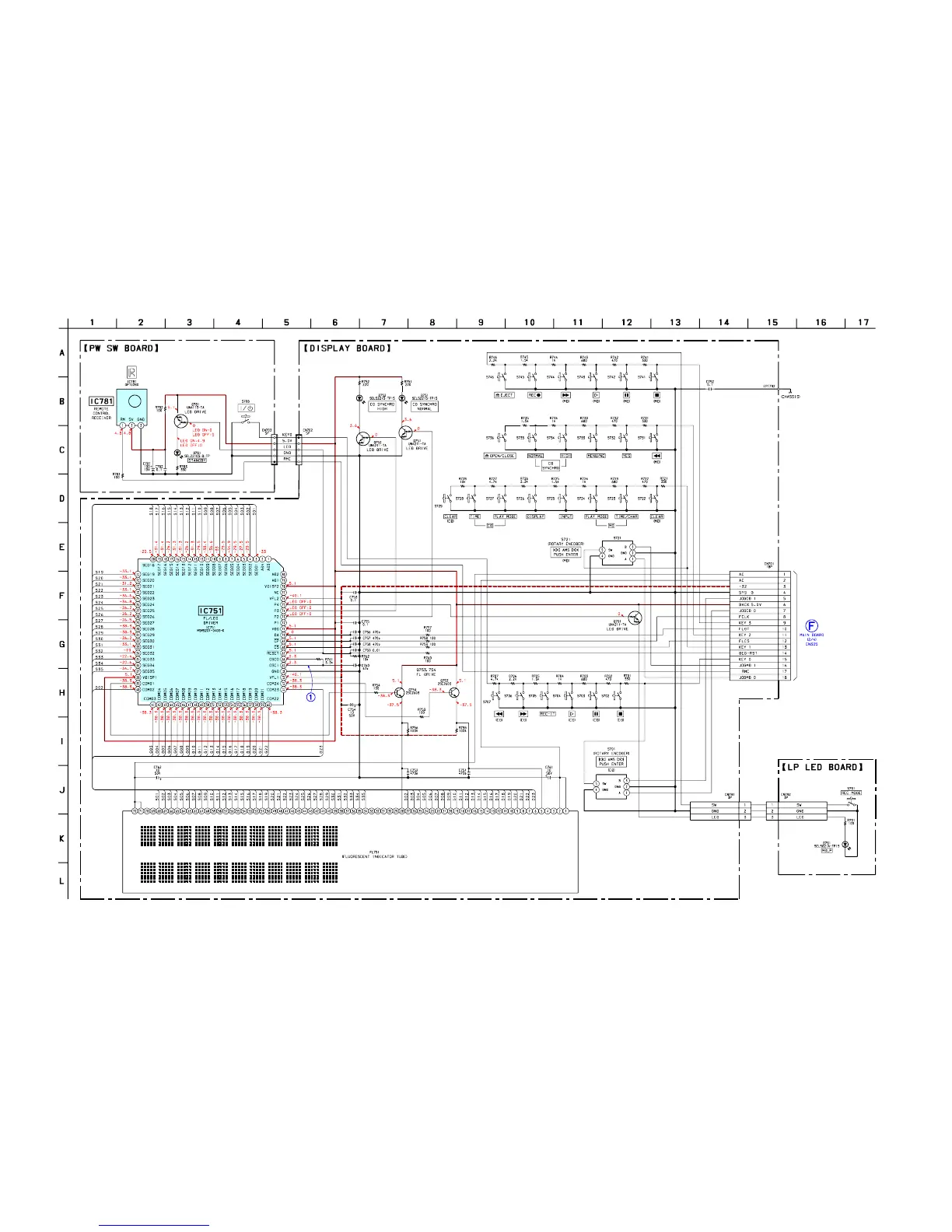

6-17. SCHEMATIC DIAGRAM – DISPLAY/LP LED/PW SW Boards – • See page 57 for Waveform.
Note on Schematic Diagram:
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : MD, CD STOP
(Page 61)
