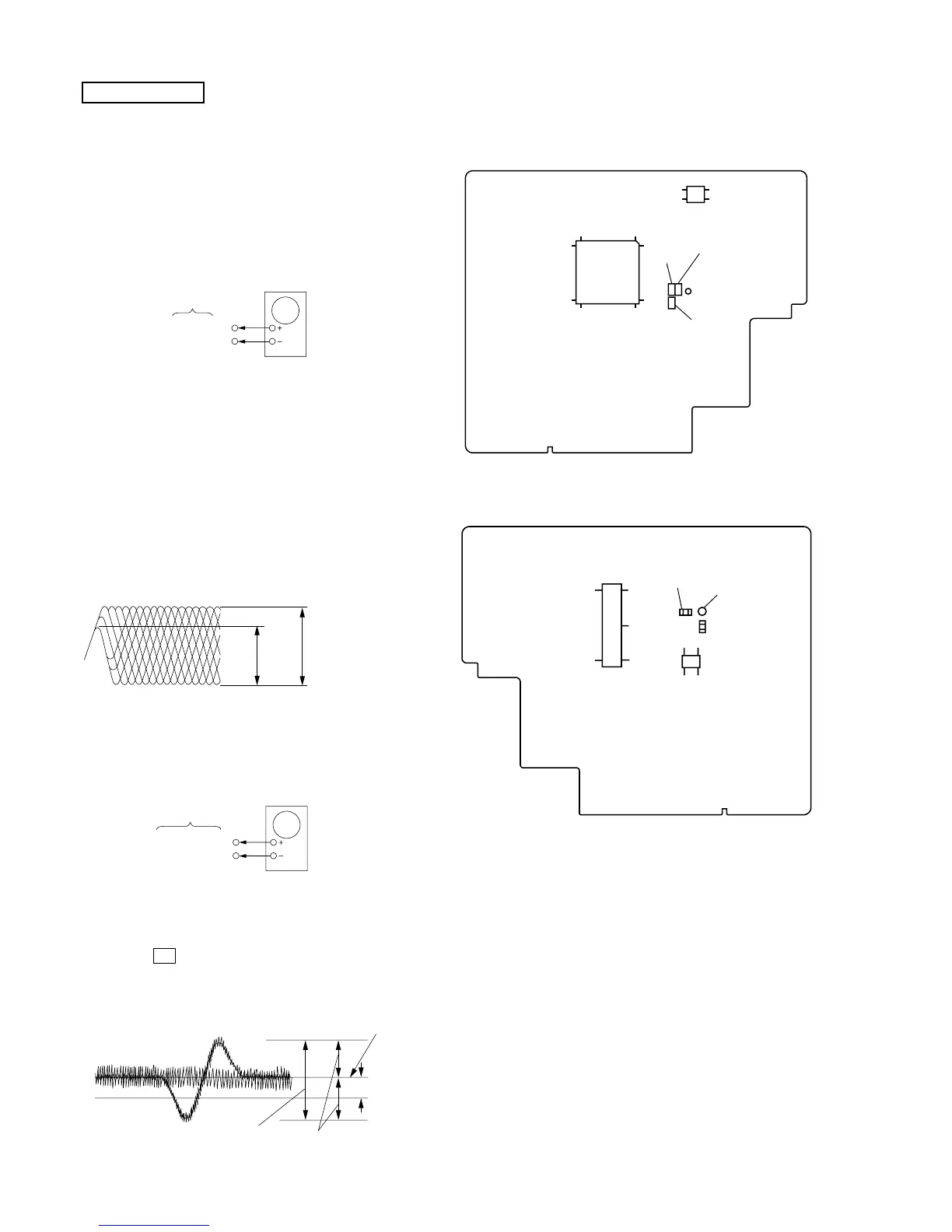

20
RCD-W3
CD-R SECTION
Note :
1. CD Block is basically designed to operate without adjustment.
Therefore, check each item in order given.
2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated.
3. Use an oscilloscope with more than 10M impedance.
4. Clean the object lens by an applicator with neutral detergent
when the signal level is low than specified value with the fol-
lowing checks.
RF Level Check
Procedure :
1. Connect oscilloscope to TP (RRF) and IC302 1 pin.
2. Turned Power switch on.
3. Load a disc (YEDS-18) and playback.
4. Confirm that oscilloscope waveform is clear and check RF sig-
nal level is correct or not.
TP(RRF)
IC302
1
pin
BD-R board
oscilloscope
Note : Clear RF signal waveform means that the shape “ ” can be clearly
distinguished at the center of the waveform.
E-F Balance (1 Track jump) Check
Procedure :
1. Connect oscilloscope to TP (TE1) and PN301 qk Pin.
2. Turned Power switch on.
3. Load a disc (YEDS-18) and playback the number five track.
4. Press the X button. (Becomes the 1 track jump mode.)
5. Confirm that the level B and A (DC voltage) on the oscillo-
scope waveform.
RF signal waveform
VOLT/DIV : 200mV
TIME/DIV : 500ns
3T= 0.55
±
0.07Vp-p
11T= 0.90
±
0.13Vp-p
3T
11T
TP(TE1)
PN301
qk
pin
BD-R board
oscilloscop
e
level=1.3
±
0.6Vp-p
symmetry
A (DC voltage
)
center of
waveform
B
0V
1 track jump waveform
Specified level: –– × 100=less than ±22%
B
A
Adjustment Location:
[BD-R BOARD] (SIDE A)
C396
C363
R3C6
TP(RRF)
1
75
25
26
100
50
76
51
5
4
1
8
IC302
IC301
[BD-R BOARD] (SIDE B)
R369
TP(TE1)
C380
1
31
2
18
32
41
58
PN301
