9(E)

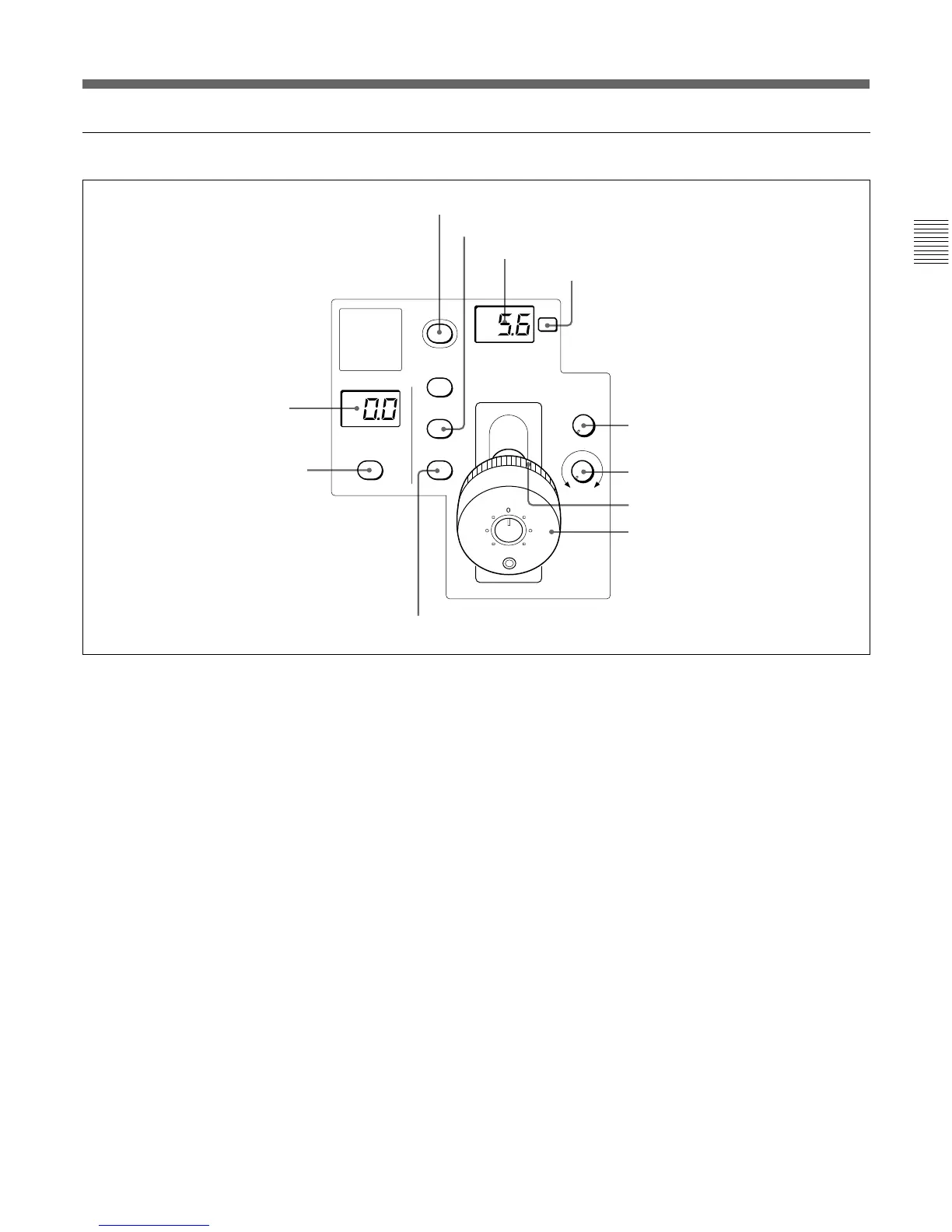

Iris/master black control block (RCP-750)
4 AUTO button
Press and light the button to automatically adjust the
iris according to the amount of input light.
When this button is lit, the reference value for
automatic iris adjustment can be set in a range of ±1f
with the iris control.
If you press the button when lit, it goes dark and
manual iris adjustment is enabled.
5 f-number display
Displays the f number of the current iris setting. When
the iris is closed, “CL” is displayed.
6 EXT (lens extender) indicator
Lights when a lens extender or digital extender is used.
7 SENS (sensitivity) control knob
Used for manual iris adjustment in Absolute mode.
This control is not operative when Relative mode is
selected.
See the table “Iris adjustment functions” on the next page.
8 COARSE control knob
Used for manual iris adjustment.
See the table “Iris adjustment functions” on the next page.
1 MASTER BLACK display
Displays the current master black setting in the range
from –99 to +99.
2 MASTER BLACK RELATIVE button
When the IRIS/MB ACTIVE button is lit, the master
black adjustment mode can be selected with this
button.
Press and light up the button for Relative mode, or
press and turn it dark for Absolute mode.
When the IRIS/MB ACTIVE button is not lit, Relative
mode is automatically selected and this button is not
operative.
3 IRIS/MB ACTIVE (iris/master black active)
button
Press and light up this button to enable the iris/master
black control block of the panel.
When the PANEL ACTIVE button is pressed, this
button also lights.
If you press this button so that it goes dark, the panel
will be locked, preventing accidental misoperation.
IRIS/MB
ACTIVE
AUTO
RELATIVE
COARSE
SENS
OPENCLOSE
RELATIVE
MASTER
BLACK
EXT
IRIS
0 IRIS control lever
3 IRIS/MB ACTIVE button
4 AUTO button
5 f-number display
6 EXT indicator
7 SENS control knob
8 COARSE control knob
9 Master black control ring
1 MASTER BLACK display
2 MASTER BLACK RELATIVE
button
qa IRIS RELATIVE button
