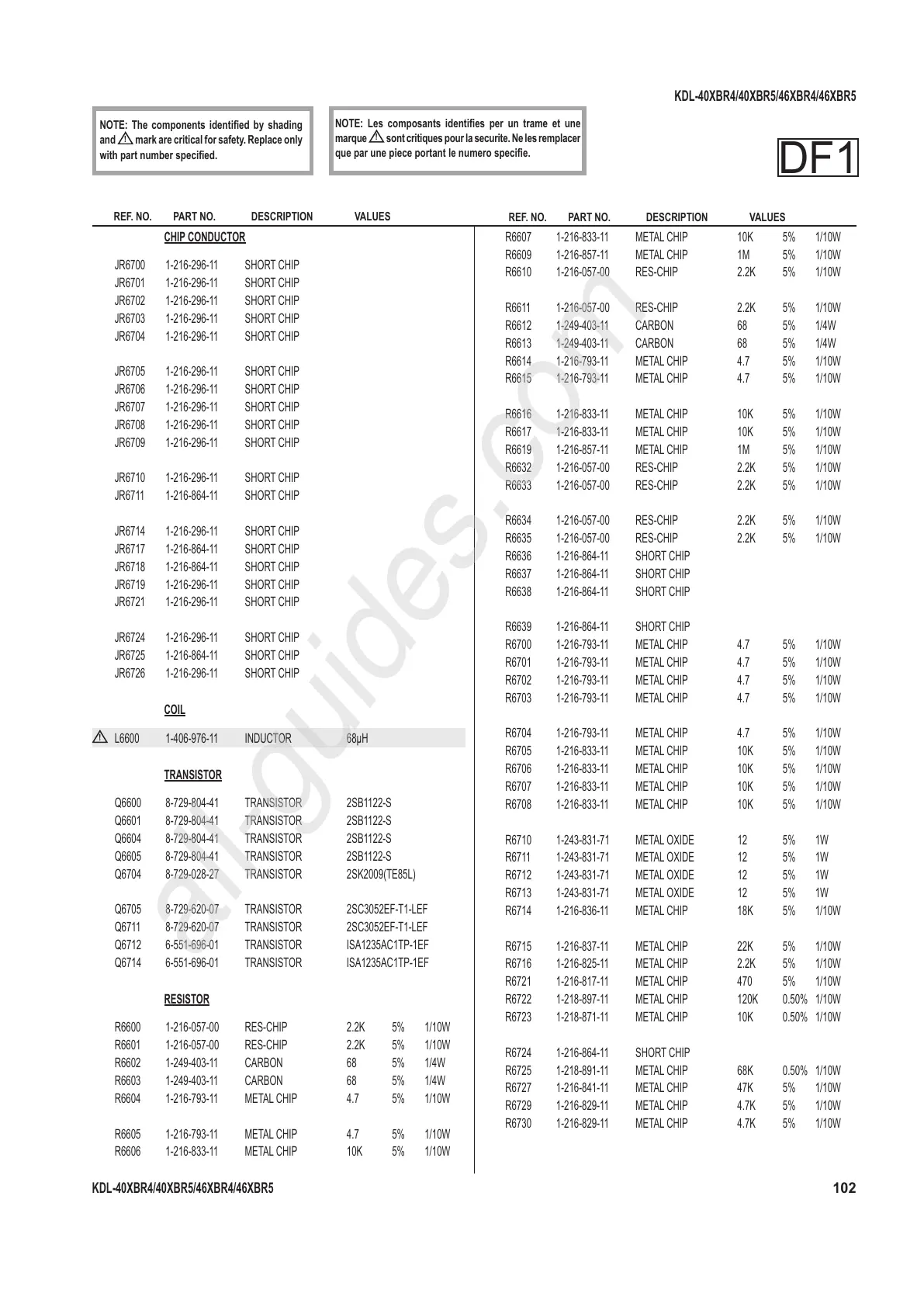

KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5
102
REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: Les composants identifi es per un trame et une
marque
!
sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifi e.
CHIP CONDUCTOR
JR6700 1-216-296-11 SHORT CHIP
JR6701 1-216-296-11 SHORT CHIP
JR6702 1-216-296-11 SHORT CHIP
JR6703 1-216-296-11 SHORT CHIP
JR6704 1-216-296-11 SHORT CHIP
JR6705 1-216-296-11 SHORT CHIP
JR6706 1-216-296-11 SHORT CHIP
JR6707 1-216-296-11 SHORT CHIP
JR6708 1-216-296-11 SHORT CHIP
JR6709 1-216-296-11 SHORT CHIP
JR6710 1-216-296-11 SHORT CHIP
JR6711 1-216-864-11 SHORT CHIP
JR6714 1-216-296-11 SHORT CHIP
JR6717 1-216-864-11 SHORT CHIP
JR6718 1-216-864-11 SHORT CHIP
JR6719 1-216-296-11 SHORT CHIP
JR6721 1-216-296-11 SHORT CHIP
JR6724 1-216-296-11 SHORT CHIP
JR6725 1-216-864-11 SHORT CHIP
JR6726 1-216-296-11 SHORT CHIP
COIL
!
L6600 1-406-976-11 INDUCTOR 68µH
TRANSISTOR
Q6600 8-729-804-41 TRANSISTOR 2SB1122-S
Q6601 8-729-804-41 TRANSISTOR 2SB1122-S
Q6604 8-729-804-41 TRANSISTOR 2SB1122-S
Q6605 8-729-804-41 TRANSISTOR 2SB1122-S
Q6704 8-729-028-27 TRANSISTOR 2SK2009(TE85L)
Q6705 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q6711 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q6712 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q6714 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
RESISTOR
R6600 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R6601 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R6602 1-249-403-11 CARBON 68 5% 1/4W
R6603 1-249-403-11 CARBON 68 5% 1/4W
R6604 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R6605 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R6606 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6607 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6609 1-216-857-11 METAL CHIP 1M 5% 1/10W
R6610 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R6611 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R6612 1-249-403-11 CARBON 68 5% 1/4W
R6613 1-249-403-11 CARBON 68 5% 1/4W
R6614 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R6615 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R6616 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6617 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6619 1-216-857-11 METAL CHIP 1M 5% 1/10W
R6632 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R6633 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R6634 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R6635 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R6636 1-216-864-11 SHORT CHIP
R6637 1-216-864-11 SHORT CHIP
R6638 1-216-864-11 SHORT CHIP
R6639 1-216-864-11 SHORT CHIP
R6700 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R6701 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R6702 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R6703 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R6704 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R6705 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6706 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6707 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6708 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6710 1-243-831-71 METAL OXIDE 12 5% 1W
R6711 1-243-831-71 METAL OXIDE 12 5% 1W
R6712 1-243-831-71 METAL OXIDE 12 5% 1W
R6713 1-243-831-71 METAL OXIDE 12 5% 1W
R6714 1-216-836-11 METAL CHIP 18K 5% 1/10W
R6715 1-216-837-11 METAL CHIP 22K 5% 1/10W
R6716 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R6721 1-216-817-11 METAL CHIP 470 5% 1/10W
R6722 1-218-897-11 METAL CHIP 120K 0.50% 1/10W
R6723 1-218-871-11 METAL CHIP 10K 0.50% 1/10W
R6724 1-216-864-11 SHORT CHIP
R6725 1-218-891-11 METAL CHIP 68K 0.50% 1/10W
R6727 1-216-841-11 METAL CHIP 47K 5% 1/10W
R6729 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R6730 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
DF1
