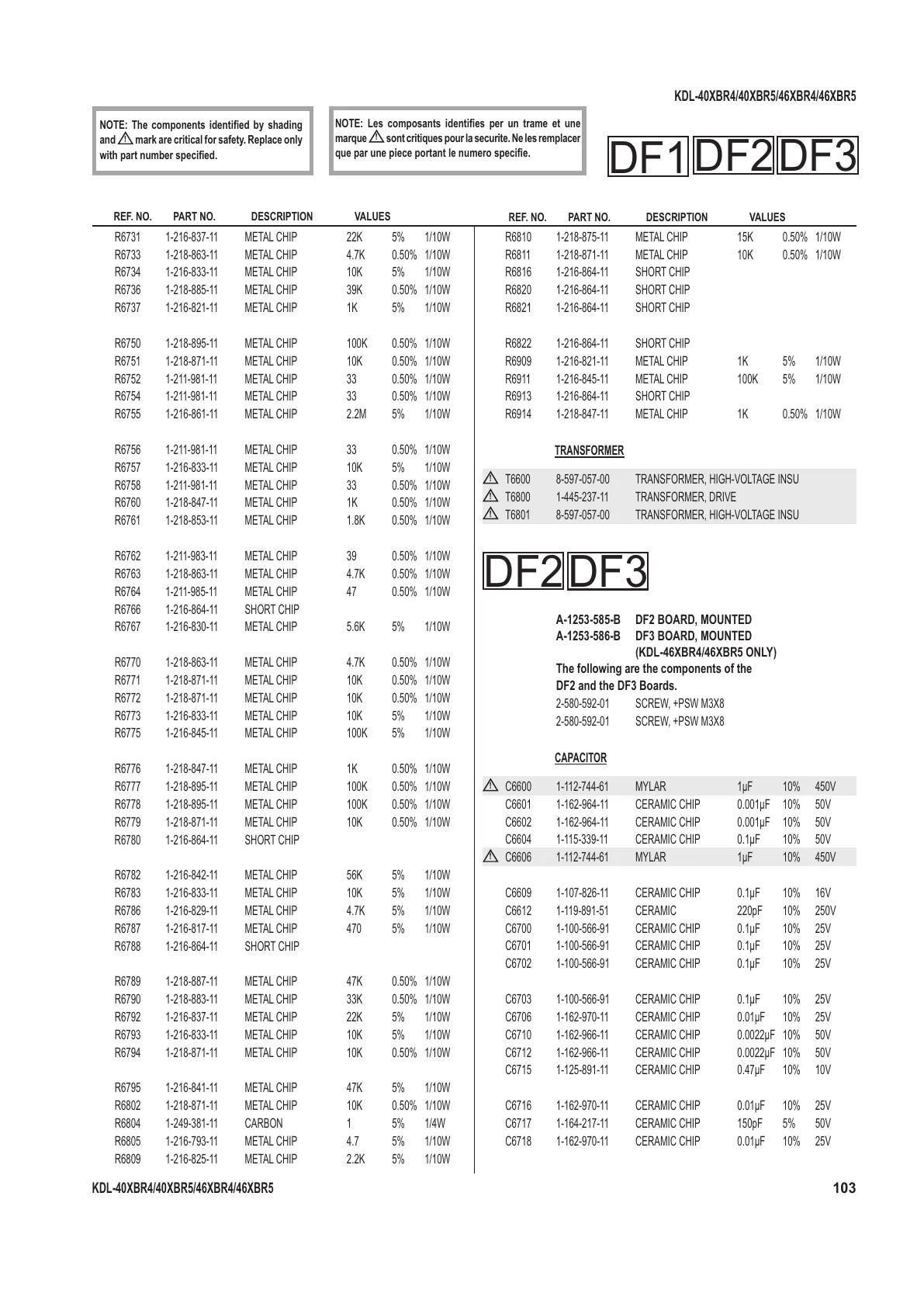

KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5
103
REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: Les composants identifi es per un trame et une
marque
!
sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifi e.
R6731 1-216-837-11 METAL CHIP 22K 5% 1/10W
R6733 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R6734 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6736 1-218-885-11 METAL CHIP 39K 0.50% 1/10W
R6737 1-216-821-11 METAL CHIP 1K 5% 1/10W
R6750 1-218-895-11 METAL CHIP 100K 0.50% 1/10W
R6751 1-218-871-11 METAL CHIP 10K 0.50% 1/10W
R6752 1-211-981-11 METAL CHIP 33 0.50% 1/10W
R6754 1-211-981-11 METAL CHIP 33 0.50% 1/10W
R6755 1-216-861-11 METAL CHIP 2.2M 5% 1/10W
R6756 1-211-981-11 METAL CHIP 33 0.50% 1/10W
R6757 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6758 1-211-981-11 METAL CHIP 33 0.50% 1/10W
R6760 1-218-847-11 METAL CHIP 1K 0.50% 1/10W
R6761 1-218-853-11 METAL CHIP 1.8K 0.50% 1/10W
R6762 1-211-983-11 METAL CHIP 39 0.50% 1/10W
R6763 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R6764 1-211-985-11 METAL CHIP 47 0.50% 1/10W
R6766 1-216-864-11 SHORT CHIP
R6767 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R6770 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R6771 1-218-871-11 METAL CHIP 10K 0.50% 1/10W
R6772 1-218-871-11 METAL CHIP 10K 0.50% 1/10W
R6773 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6775 1-216-845-11 METAL CHIP 100K 5% 1/10W
R6776 1-218-847-11 METAL CHIP 1K 0.50% 1/10W
R6777 1-218-895-11 METAL CHIP 100K 0.50% 1/10W
R6778 1-218-895-11 METAL CHIP 100K 0.50% 1/10W
R6779 1-218-871-11 METAL CHIP 10K 0.50% 1/10W
R6780 1-216-864-11 SHORT CHIP
R6782 1-216-842-11 METAL CHIP 56K 5% 1/10W
R6783 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6786 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R6787 1-216-817-11 METAL CHIP 470 5% 1/10W
R6788 1-216-864-11 SHORT CHIP
R6789 1-218-887-11 METAL CHIP 47K 0.50% 1/10W
R6790 1-218-883-11 METAL CHIP 33K 0.50% 1/10W
R6792 1-216-837-11 METAL CHIP 22K 5% 1/10W
R6793 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6794 1-218-871-11 METAL CHIP 10K 0.50% 1/10W
R6795 1-216-841-11 METAL CHIP 47K 5% 1/10W
R6802 1-218-871-11 METAL CHIP 10K 0.50% 1/10W
R6804 1-249-381-11 CARBON 1 5% 1/4W
R6805 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R6809 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R6810 1-218-875-11 METAL CHIP 15K 0.50% 1/10W
R6811 1-218-871-11 METAL CHIP 10K 0.50% 1/10W
R6816 1-216-864-11 SHORT CHIP
R6820 1-216-864-11 SHORT CHIP
R6821 1-216-864-11 SHORT CHIP
R6822 1-216-864-11 SHORT CHIP
R6909 1-216-821-11 METAL CHIP 1K 5% 1/10W
R6911 1-216-845-11 METAL CHIP 100K 5% 1/10W
R6913 1-216-864-11 SHORT CHIP
R6914 1-218-847-11 METAL CHIP 1K 0.50% 1/10W
TRANSFORMER
!
T6600 8-597-057-00 TRANSFORMER, HIGH-VOLTAGE INSU
!
T6800 1-445-237-11 TRANSFORMER, DRIVE
!
T6801 8-597-057-00 TRANSFORMER, HIGH-VOLTAGE INSU
DF2
DF3
A-1253-585-B DF2 BOARD, MOUNTED
A-1253-586-B DF3 BOARD, MOUNTED
(KDL-46XBR4/46XBR5 ONLY)
The following are the components of the
DF2 and the DF3 Boards.
2-580-592-01 SCREW, +PSW M3X8
2-580-592-01 SCREW, +PSW M3X8
CAPACITOR
!
C6600 1-112-744-61 MYLAR 1µF 10% 450V
C6601 1-162-964-11 CERAMIC CHIP 0.001µF 10% 50V
C6602 1-162-964-11 CERAMIC CHIP 0.001µF 10% 50V
C6604 1-115-339-11 CERAMIC CHIP 0.1µF 10% 50V
!
C6606 1-112-744-61 MYLAR 1µF 10% 450V
C6609 1-107-826-11 CERAMIC CHIP 0.1µF 10% 16V
C6612 1-119-891-51 CERAMIC 220pF 10% 250V
C6700 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6701 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6702 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6703 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6706 1-162-970-11 CERAMIC CHIP 0.01µF 10% 25V
C6710 1-162-966-11 CERAMIC CHIP 0.0022µF 10% 50V
C6712 1-162-966-11 CERAMIC CHIP 0.0022µF 10% 50V
C6715 1-125-891-11 CERAMIC CHIP 0.47µF 10% 10V
C6716 1-162-970-11 CERAMIC CHIP 0.01µF 10% 25V
C6717 1-164-217-11 CERAMIC CHIP 150pF 5% 50V
C6718 1-162-970-11 CERAMIC CHIP 0.01µF 10% 25V
DF1
DF2
DF3
