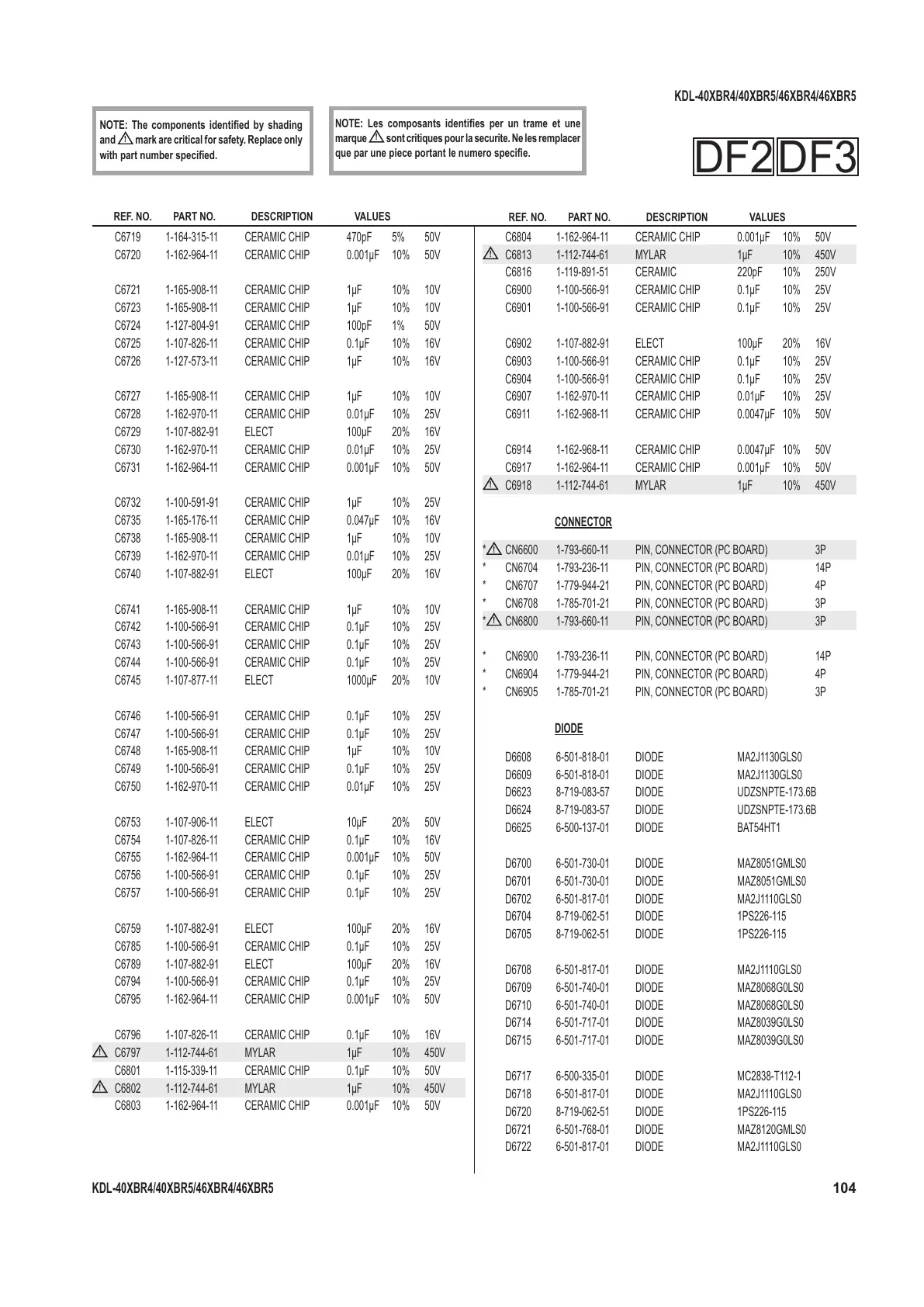

REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: Les composants identifi es per un trame et une
marque
!
sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifi e.
C6719 1-164-315-11 CERAMIC CHIP 470pF 5% 50V
C6720 1-162-964-11 CERAMIC CHIP 0.001µF 10% 50V
C6721 1-165-908-11 CERAMIC CHIP 1µF 10% 10V
C6723 1-165-908-11 CERAMIC CHIP 1µF 10% 10V
C6724 1-127-804-91 CERAMIC CHIP 100pF 1% 50V
C6725 1-107-826-11 CERAMIC CHIP 0.1µF 10% 16V
C6726 1-127-573-11 CERAMIC CHIP 1µF 10% 16V
C6727 1-165-908-11 CERAMIC CHIP 1µF 10% 10V
C6728 1-162-970-11 CERAMIC CHIP 0.01µF 10% 25V
C6729 1-107-882-91 ELECT 100µF 20% 16V
C6730 1-162-970-11 CERAMIC CHIP 0.01µF 10% 25V
C6731 1-162-964-11 CERAMIC CHIP 0.001µF 10% 50V
C6732 1-100-591-91 CERAMIC CHIP 1µF 10% 25V
C6735 1-165-176-11 CERAMIC CHIP 0.047µF 10% 16V
C6738 1-165-908-11 CERAMIC CHIP 1µF 10% 10V
C6739 1-162-970-11 CERAMIC CHIP 0.01µF 10% 25V
C6740 1-107-882-91 ELECT 100µF 20% 16V
C6741 1-165-908-11 CERAMIC CHIP 1µF 10% 10V
C6742 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6743 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6744 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6745 1-107-877-11 ELECT 1000µF 20% 10V
C6746 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6747 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6748 1-165-908-11 CERAMIC CHIP 1µF 10% 10V
C6749 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6750 1-162-970-11 CERAMIC CHIP 0.01µF 10% 25V
C6753 1-107-906-11 ELECT 10µF 20% 50V
C6754 1-107-826-11 CERAMIC CHIP 0.1µF 10% 16V
C6755 1-162-964-11 CERAMIC CHIP 0.001µF 10% 50V
C6756 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6757 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6759 1-107-882-91 ELECT 100µF 20% 16V
C6785 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6789 1-107-882-91 ELECT 100µF 20% 16V
C6794 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6795 1-162-964-11 CERAMIC CHIP 0.001µF 10% 50V
C6796 1-107-826-11 CERAMIC CHIP 0.1µF 10% 16V
!
C6797 1-112-744-61 MYLAR 1µF 10% 450V
C6801 1-115-339-11 CERAMIC CHIP 0.1µF 10% 50V
!
C6802 1-112-744-61 MYLAR 1µF 10% 450V
C6803 1-162-964-11 CERAMIC CHIP 0.001µF 10% 50V
C6804 1-162-964-11 CERAMIC CHIP 0.001µF 10% 50V
!
C6813 1-112-744-61 MYLAR 1µF 10% 450V
C6816 1-119-891-51 CERAMIC 220pF 10% 250V
C6900 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6901 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6902 1-107-882-91 ELECT 100µF 20% 16V
C6903 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6904 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6907 1-162-970-11 CERAMIC CHIP 0.01µF 10% 25V
C6911 1-162-968-11 CERAMIC CHIP 0.0047µF 10% 50V
C6914 1-162-968-11 CERAMIC CHIP 0.0047µF 10% 50V
C6917 1-162-964-11 CERAMIC CHIP 0.001µF 10% 50V
!
C6918 1-112-744-61 MYLAR 1µF 10% 450V
CONNECTOR
*
!
CN6600 1-793-660-11 PIN, CONNECTOR (PC BOARD) 3P
* CN6704 1-793-236-11 PIN, CONNECTOR (PC BOARD) 14P
* CN6707 1-779-944-21 PIN, CONNECTOR (PC BOARD) 4P
* CN6708 1-785-701-21 PIN, CONNECTOR (PC BOARD) 3P
*
!
CN6800 1-793-660-11 PIN, CONNECTOR (PC BOARD) 3P
* CN6900 1-793-236-11 PIN, CONNECTOR (PC BOARD) 14P
* CN6904 1-779-944-21 PIN, CONNECTOR (PC BOARD) 4P
* CN6905 1-785-701-21 PIN, CONNECTOR (PC BOARD) 3P
DIODE
D6608 6-501-818-01 DIODE MA2J1130GLS0
D6609 6-501-818-01 DIODE MA2J1130GLS0
D6623 8-719-083-57 DIODE UDZSNPTE-173.6B
D6624 8-719-083-57 DIODE UDZSNPTE-173.6B
D6625 6-500-137-01 DIODE BAT54HT1
D6700 6-501-730-01 DIODE MAZ8051GMLS0
D6701 6-501-730-01 DIODE MAZ8051GMLS0
D6702 6-501-817-01 DIODE MA2J1110GLS0
D6704 8-719-062-51 DIODE 1PS226-115
D6705 8-719-062-51 DIODE 1PS226-115
D6708 6-501-817-01 DIODE MA2J1110GLS0
D6709 6-501-740-01 DIODE MAZ8068G0LS0
D6710 6-501-740-01 DIODE MAZ8068G0LS0
D6714 6-501-717-01 DIODE MAZ8039G0LS0
D6715 6-501-717-01 DIODE MAZ8039G0LS0
D6717 6-500-335-01 DIODE MC2838-T112-1
D6718 6-501-817-01 DIODE MA2J1110GLS0
D6720 8-719-062-51 DIODE 1PS226-115
D6721 6-501-768-01 DIODE MAZ8120GMLS0
D6722 6-501-817-01 DIODE MA2J1110GLS0
