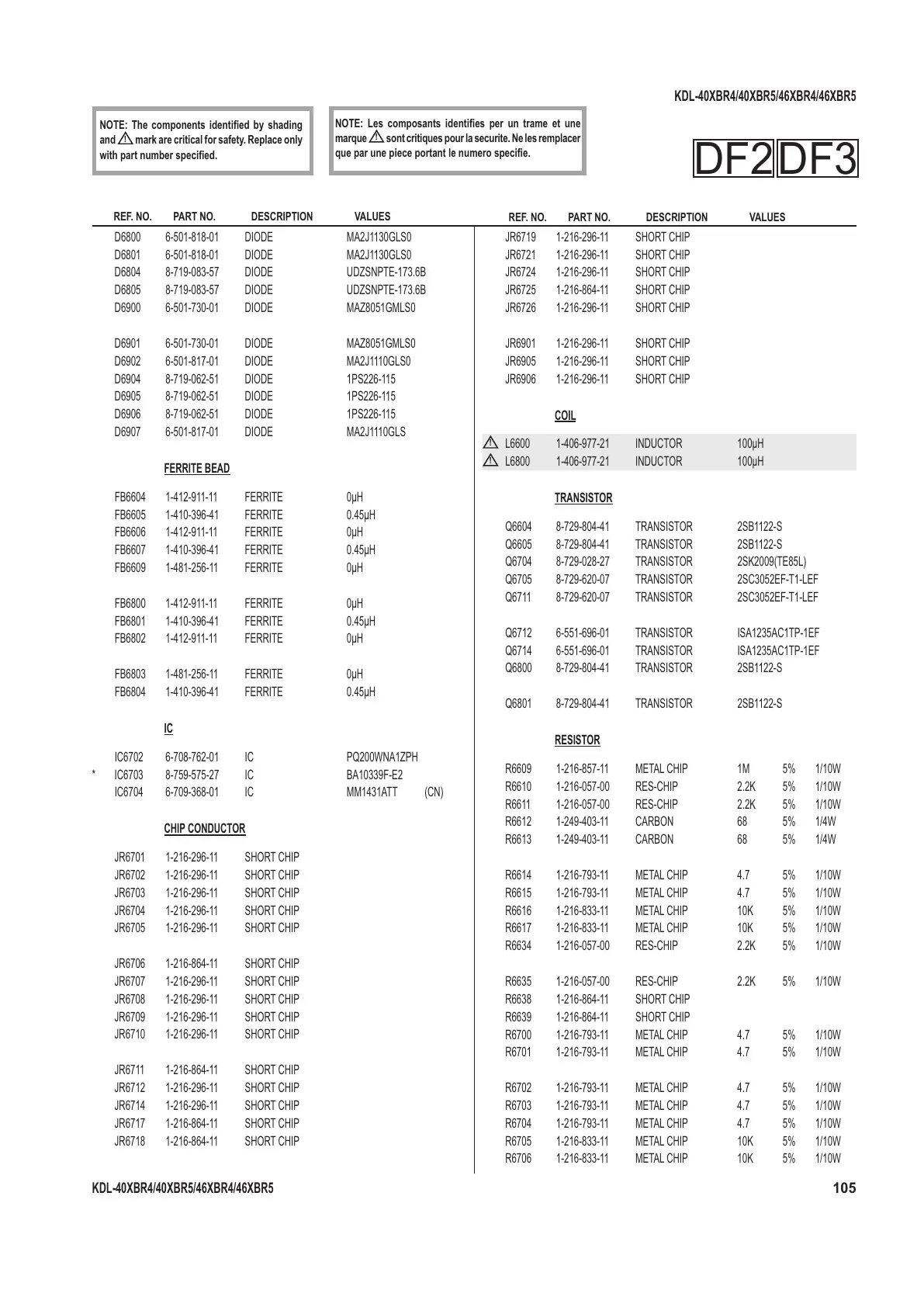

KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5
105
REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: Les composants identifi es per un trame et une
marque
!
sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifi e.
D6800 6-501-818-01 DIODE MA2J1130GLS0
D6801 6-501-818-01 DIODE MA2J1130GLS0
D6804 8-719-083-57 DIODE UDZSNPTE-173.6B
D6805 8-719-083-57 DIODE UDZSNPTE-173.6B
D6900 6-501-730-01 DIODE MAZ8051GMLS0
D6901 6-501-730-01 DIODE MAZ8051GMLS0
D6902 6-501-817-01 DIODE MA2J1110GLS0
D6904 8-719-062-51 DIODE 1PS226-115
D6905 8-719-062-51 DIODE 1PS226-115
D6906 8-719-062-51 DIODE 1PS226-115
D6907 6-501-817-01 DIODE MA2J1110GLS
FERRITE BEAD
FB6604 1-412-911-11 FERRITE 0µH
FB6605 1-410-396-41 FERRITE 0.45µH
FB6606 1-412-911-11 FERRITE 0µH
FB6607 1-410-396-41 FERRITE 0.45µH
FB6609 1-481-256-11 FERRITE 0µH
FB6800 1-412-911-11 FERRITE 0µH
FB6801 1-410-396-41 FERRITE 0.45µH
FB6802 1-412-911-11 FERRITE 0µH
FB6803 1-481-256-11 FERRITE 0µH
FB6804 1-410-396-41 FERRITE 0.45µH
IC
IC6702 6-708-762-01 IC PQ200WNA1ZPH
* IC6703 8-759-575-27 IC BA10339F-E2
IC6704 6-709-368-01 IC MM1431ATT (CN)
CHIP CONDUCTOR
JR6701 1-216-296-11 SHORT CHIP
JR6702 1-216-296-11 SHORT CHIP
JR6703 1-216-296-11 SHORT CHIP
JR6704 1-216-296-11 SHORT CHIP
JR6705 1-216-296-11 SHORT CHIP
JR6706 1-216-864-11 SHORT CHIP
JR6707 1-216-296-11 SHORT CHIP
JR6708 1-216-296-11 SHORT CHIP
JR6709 1-216-296-11 SHORT CHIP
JR6710 1-216-296-11 SHORT CHIP
JR6711 1-216-864-11 SHORT CHIP
JR6712 1-216-296-11 SHORT CHIP
JR6714 1-216-296-11 SHORT CHIP
JR6717 1-216-864-11 SHORT CHIP
JR6718 1-216-864-11 SHORT CHIP
JR6719 1-216-296-11 SHORT CHIP
JR6721 1-216-296-11 SHORT CHIP
JR6724 1-216-296-11 SHORT CHIP
JR6725 1-216-864-11 SHORT CHIP
JR6726 1-216-296-11 SHORT CHIP
JR6901 1-216-296-11 SHORT CHIP
JR6905 1-216-296-11 SHORT CHIP
JR6906 1-216-296-11 SHORT CHIP
COIL
!
L6600 1-406-977-21 INDUCTOR 100µH
!
L6800 1-406-977-21 INDUCTOR 100µH
TRANSISTOR
Q6604 8-729-804-41 TRANSISTOR 2SB1122-S
Q6605 8-729-804-41 TRANSISTOR 2SB1122-S
Q6704 8-729-028-27 TRANSISTOR 2SK2009(TE85L)
Q6705 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q6711 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q6712 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q6714 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q6800 8-729-804-41 TRANSISTOR 2SB1122-S
Q6801 8-729-804-41 TRANSISTOR 2SB1122-S
RESISTOR
R6609 1-216-857-11 METAL CHIP 1M 5% 1/10W
R6610 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R6611 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R6612 1-249-403-11 CARBON 68 5% 1/4W
R6613 1-249-403-11 CARBON 68 5% 1/4W
R6614 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R6615 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R6616 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6617 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6634 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R6635 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R6638 1-216-864-11 SHORT CHIP
R6639 1-216-864-11 SHORT CHIP
R6700 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R6701 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R6702 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R6703 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R6704 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R6705 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6706 1-216-833-11 METAL CHIP 10K 5% 1/10W
DF2
DF3
