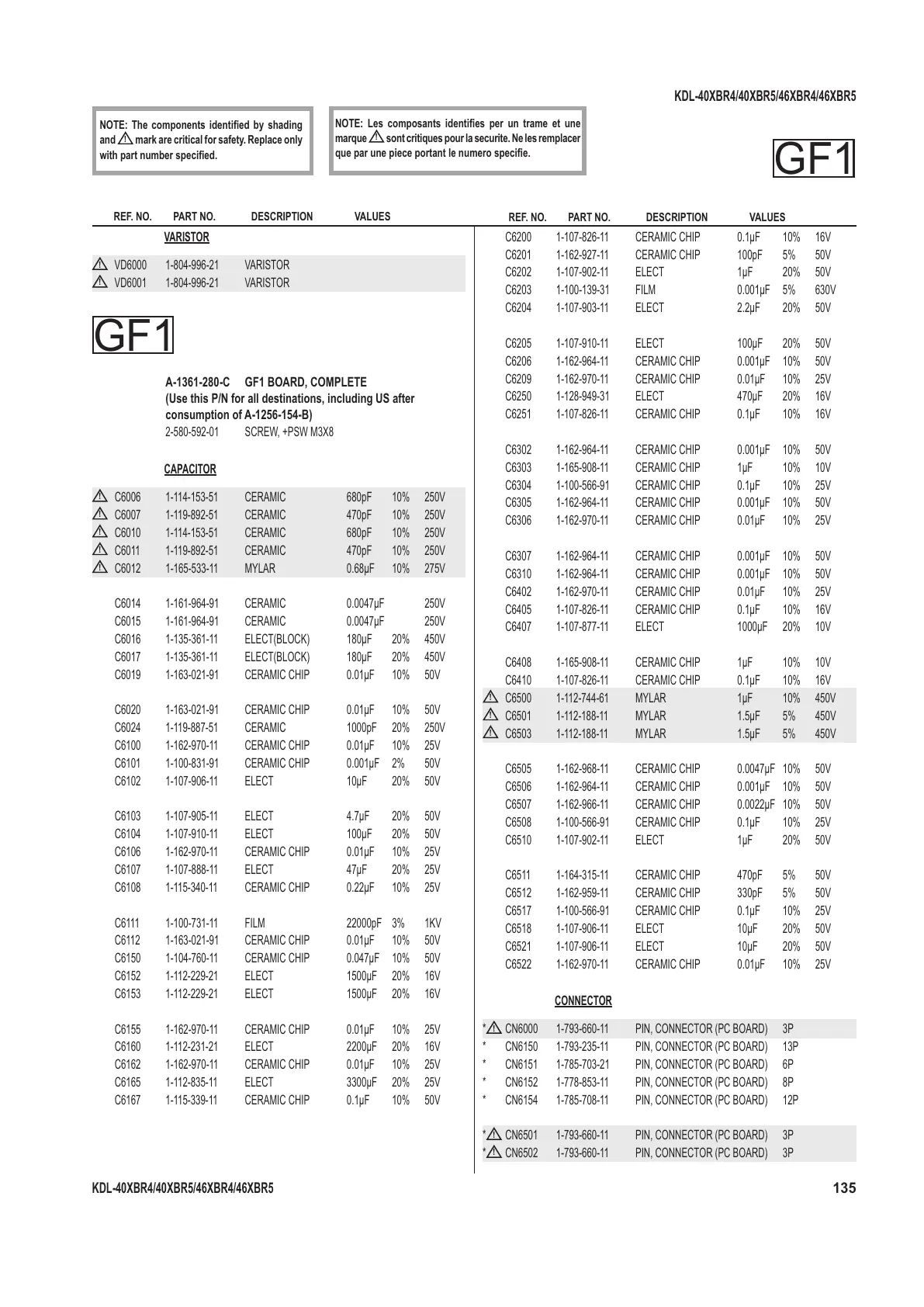

KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5
135
REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: Les composants identifi es per un trame et une
marque
!
sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifi e.
VARISTOR
!
VD6000 1-804-996-21 VARISTOR
!
VD6001 1-804-996-21 VARISTOR
GF1
A-1361-280-C GF1 BOARD, COMPLETE
(Use this P/N for all destinations, including US after
consumption of A-1256-154-B)
2-580-592-01 SCREW, +PSW M3X8
CAPACITOR
!
C6006 1-114-153-51 CERAMIC 680pF 10% 250V
!
C6007 1-119-892-51 CERAMIC 470pF 10% 250V
!
C6010 1-114-153-51 CERAMIC 680pF 10% 250V
!
C6011 1-119-892-51 CERAMIC 470pF 10% 250V
!
C6012 1-165-533-11 MYLAR 0.68µF 10% 275V
C6014 1-161-964-91 CERAMIC 0.0047µF 250V
C6015 1-161-964-91 CERAMIC 0.0047µF 250V
C6016 1-135-361-11 ELECT(BLOCK) 180µF 20% 450V
C6017 1-135-361-11 ELECT(BLOCK) 180µF 20% 450V
C6019 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C6020 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C6024 1-119-887-51 CERAMIC 1000pF 20% 250V
C6100 1-162-970-11 CERAMIC CHIP 0.01µF 10% 25V
C6101 1-100-831-91 CERAMIC CHIP 0.001µF 2% 50V
C6102 1-107-906-11 ELECT 10µF 20% 50V
C6103 1-107-905-11 ELECT 4.7µF 20% 50V
C6104 1-107-910-11 ELECT 100µF 20% 50V
C6106 1-162-970-11 CERAMIC CHIP 0.01µF 10% 25V
C6107 1-107-888-11 ELECT 47µF 20% 25V
C6108 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C6111 1-100-731-11 FILM 22000pF 3% 1KV
C6112 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C6150 1-104-760-11 CERAMIC CHIP 0.047µF 10% 50V
C6152 1-112-229-21 ELECT 1500µF 20% 16V
C6153 1-112-229-21 ELECT 1500µF 20% 16V
C6155 1-162-970-11 CERAMIC CHIP 0.01µF 10% 25V
C6160 1-112-231-21 ELECT 2200µF 20% 16V
C6162 1-162-970-11 CERAMIC CHIP 0.01µF 10% 25V
C6165 1-112-835-11 ELECT 3300µF 20% 25V
C6167 1-115-339-11 CERAMIC CHIP 0.1µF 10% 50V
C6200 1-107-826-11 CERAMIC CHIP 0.1µF 10% 16V
C6201 1-162-927-11 CERAMIC CHIP 100pF 5% 50V
C6202 1-107-902-11 ELECT 1µF 20% 50V
C6203 1-100-139-31 FILM 0.001µF 5% 630V
C6204 1-107-903-11 ELECT 2.2µF 20% 50V
C6205 1-107-910-11 ELECT 100µF 20% 50V
C6206 1-162-964-11 CERAMIC CHIP 0.001µF 10% 50V
C6209 1-162-970-11 CERAMIC CHIP 0.01µF 10% 25V
C6250 1-128-949-31 ELECT 470µF 20% 16V
C6251 1-107-826-11 CERAMIC CHIP 0.1µF 10% 16V
C6302 1-162-964-11 CERAMIC CHIP 0.001µF 10% 50V
C6303 1-165-908-11 CERAMIC CHIP 1µF 10% 10V
C6304 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6305 1-162-964-11 CERAMIC CHIP 0.001µF 10% 50V
C6306 1-162-970-11 CERAMIC CHIP 0.01µF 10% 25V
C6307 1-162-964-11 CERAMIC CHIP 0.001µF 10% 50V
C6310 1-162-964-11 CERAMIC CHIP 0.001µF 10% 50V
C6402 1-162-970-11 CERAMIC CHIP 0.01µF 10% 25V
C6405 1-107-826-11 CERAMIC CHIP 0.1µF 10% 16V
C6407 1-107-877-11 ELECT 1000µF 20% 10V
C6408 1-165-908-11 CERAMIC CHIP 1µF 10% 10V
C6410 1-107-826-11 CERAMIC CHIP 0.1µF 10% 16V
!
C6500 1-112-744-61 MYLAR 1µF 10% 450V
!
C6501 1-112-188-11 MYLAR 1.5µF 5% 450V
!
C6503 1-112-188-11 MYLAR 1.5µF 5% 450V
C6505 1-162-968-11 CERAMIC CHIP 0.0047µF 10% 50V
C6506 1-162-964-11 CERAMIC CHIP 0.001µF 10% 50V
C6507 1-162-966-11 CERAMIC CHIP 0.0022µF 10% 50V
C6508 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6510 1-107-902-11 ELECT 1µF 20% 50V
C6511 1-164-315-11 CERAMIC CHIP 470pF 5% 50V
C6512 1-162-959-11 CERAMIC CHIP 330pF 5% 50V
C6517 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C6518 1-107-906-11 ELECT 10µF 20% 50V
C6521 1-107-906-11 ELECT 10µF 20% 50V
C6522 1-162-970-11 CERAMIC CHIP 0.01µF 10% 25V
CONNECTOR
*
!
CN6000 1-793-660-11 PIN, CONNECTOR (PC BOARD) 3P
* CN6150 1-793-235-11 PIN, CONNECTOR (PC BOARD) 13P
* CN6151 1-785-703-21 PIN, CONNECTOR (PC BOARD) 6P
* CN6152 1-778-853-11 PIN, CONNECTOR (PC BOARD) 8P
* CN6154 1-785-708-11 PIN, CONNECTOR (PC BOARD) 12P
*
!
CN6501 1-793-660-11 PIN, CONNECTOR (PC BOARD) 3P
*
!
CN6502 1-793-660-11 PIN, CONNECTOR (PC BOARD) 3P
GF1
To Next Page
