Sony RM-YD017 - Page 135

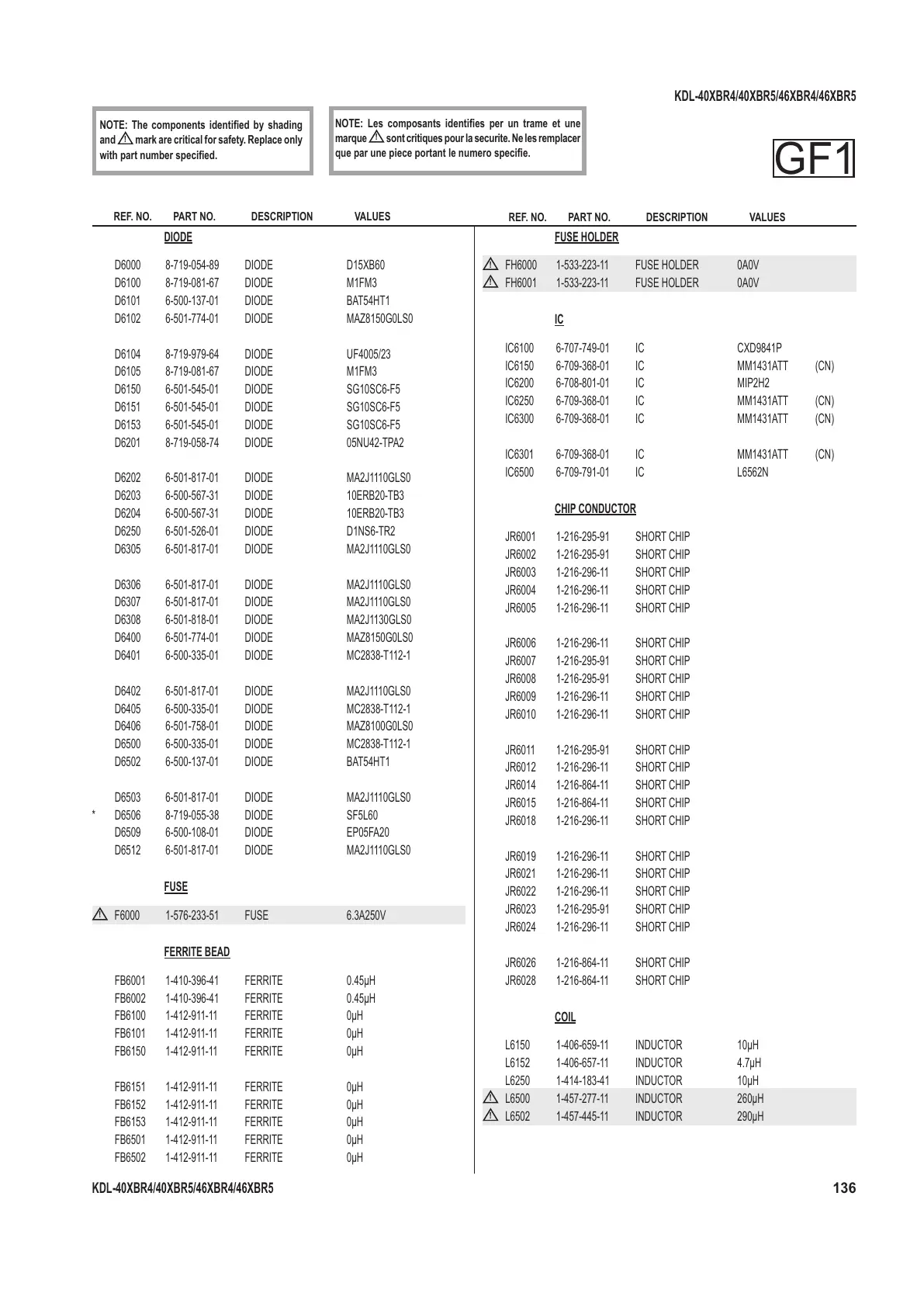

KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5
136
REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: Les composants identifi es per un trame et une
marque
!
sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifi e.
DIODE
D6000 8-719-054-89 DIODE D15XB60
D6100 8-719-081-67 DIODE M1FM3
D6101 6-500-137-01 DIODE BAT54HT1
D6102 6-501-774-01 DIODE MAZ8150G0LS0
D6104 8-719-979-64 DIODE UF4005/23
D6105 8-719-081-67 DIODE M1FM3
D6150 6-501-545-01 DIODE SG10SC6-F5
D6151 6-501-545-01 DIODE SG10SC6-F5
D6153 6-501-545-01 DIODE SG10SC6-F5
D6201 8-719-058-74 DIODE 05NU42-TPA2
D6202 6-501-817-01 DIODE MA2J1110GLS0
D6203 6-500-567-31 DIODE 10ERB20-TB3
D6204 6-500-567-31 DIODE 10ERB20-TB3
D6250 6-501-526-01 DIODE D1NS6-TR2
D6305 6-501-817-01 DIODE MA2J1110GLS0
D6306 6-501-817-01 DIODE MA2J1110GLS0
D6307 6-501-817-01 DIODE MA2J1110GLS0
D6308 6-501-818-01 DIODE MA2J1130GLS0
D6400 6-501-774-01 DIODE MAZ8150G0LS0
D6401 6-500-335-01 DIODE MC2838-T112-1
D6402 6-501-817-01 DIODE MA2J1110GLS0
D6405 6-500-335-01 DIODE MC2838-T112-1
D6406 6-501-758-01 DIODE MAZ8100G0LS0
D6500 6-500-335-01 DIODE MC2838-T112-1
D6502 6-500-137-01 DIODE BAT54HT1
D6503 6-501-817-01 DIODE MA2J1110GLS0
* D6506 8-719-055-38 DIODE SF5L60
D6509 6-500-108-01 DIODE EP05FA20
D6512 6-501-817-01 DIODE MA2J1110GLS0
FUSE
!
F6000 1-576-233-51 FUSE 6.3A250V
FERRITE BEAD
FB6001 1-410-396-41 FERRITE 0.45µH
FB6002 1-410-396-41 FERRITE 0.45µH
FB6100 1-412-911-11 FERRITE 0µH
FB6101 1-412-911-11 FERRITE 0µH
FB6150 1-412-911-11 FERRITE 0µH
FB6151 1-412-911-11 FERRITE 0µH
FB6152 1-412-911-11 FERRITE 0µH
FB6153 1-412-911-11 FERRITE 0µH
FB6501 1-412-911-11 FERRITE 0µH
FB6502 1-412-911-11 FERRITE 0µH
FUSE HOLDER
!
FH6000 1-533-223-11 FUSE HOLDER 0A0V
!
FH6001 1-533-223-11 FUSE HOLDER 0A0V
IC
IC6100 6-707-749-01 IC CXD9841P
IC6150 6-709-368-01 IC MM1431ATT (CN)
IC6200 6-708-801-01 IC MIP2H2
IC6250 6-709-368-01 IC MM1431ATT (CN)
IC6300 6-709-368-01 IC MM1431ATT (CN)
IC6301 6-709-368-01 IC MM1431ATT (CN)
IC6500 6-709-791-01 IC L6562N
CHIP CONDUCTOR
JR6001 1-216-295-91 SHORT CHIP
JR6002 1-216-295-91 SHORT CHIP
JR6003 1-216-296-11 SHORT CHIP
JR6004 1-216-296-11 SHORT CHIP
JR6005 1-216-296-11 SHORT CHIP
JR6006 1-216-296-11 SHORT CHIP
JR6007 1-216-295-91 SHORT CHIP
JR6008 1-216-295-91 SHORT CHIP
JR6009 1-216-296-11 SHORT CHIP
JR6010 1-216-296-11 SHORT CHIP
JR6011 1-216-295-91 SHORT CHIP
JR6012 1-216-296-11 SHORT CHIP
JR6014 1-216-864-11 SHORT CHIP
JR6015 1-216-864-11 SHORT CHIP
JR6018 1-216-296-11 SHORT CHIP
JR6019 1-216-296-11 SHORT CHIP
JR6021 1-216-296-11 SHORT CHIP
JR6022 1-216-296-11 SHORT CHIP
JR6023 1-216-295-91 SHORT CHIP
JR6024 1-216-296-11 SHORT CHIP
JR6026 1-216-864-11 SHORT CHIP
JR6028 1-216-864-11 SHORT CHIP
COIL
L6150 1-406-659-11 INDUCTOR 10µH
L6152 1-406-657-11 INDUCTOR 4.7µH
L6250 1-414-183-41 INDUCTOR 10µH
!
L6500 1-457-277-11 INDUCTOR 260µH
!
L6502 1-457-445-11 INDUCTOR 290µH
GF1
