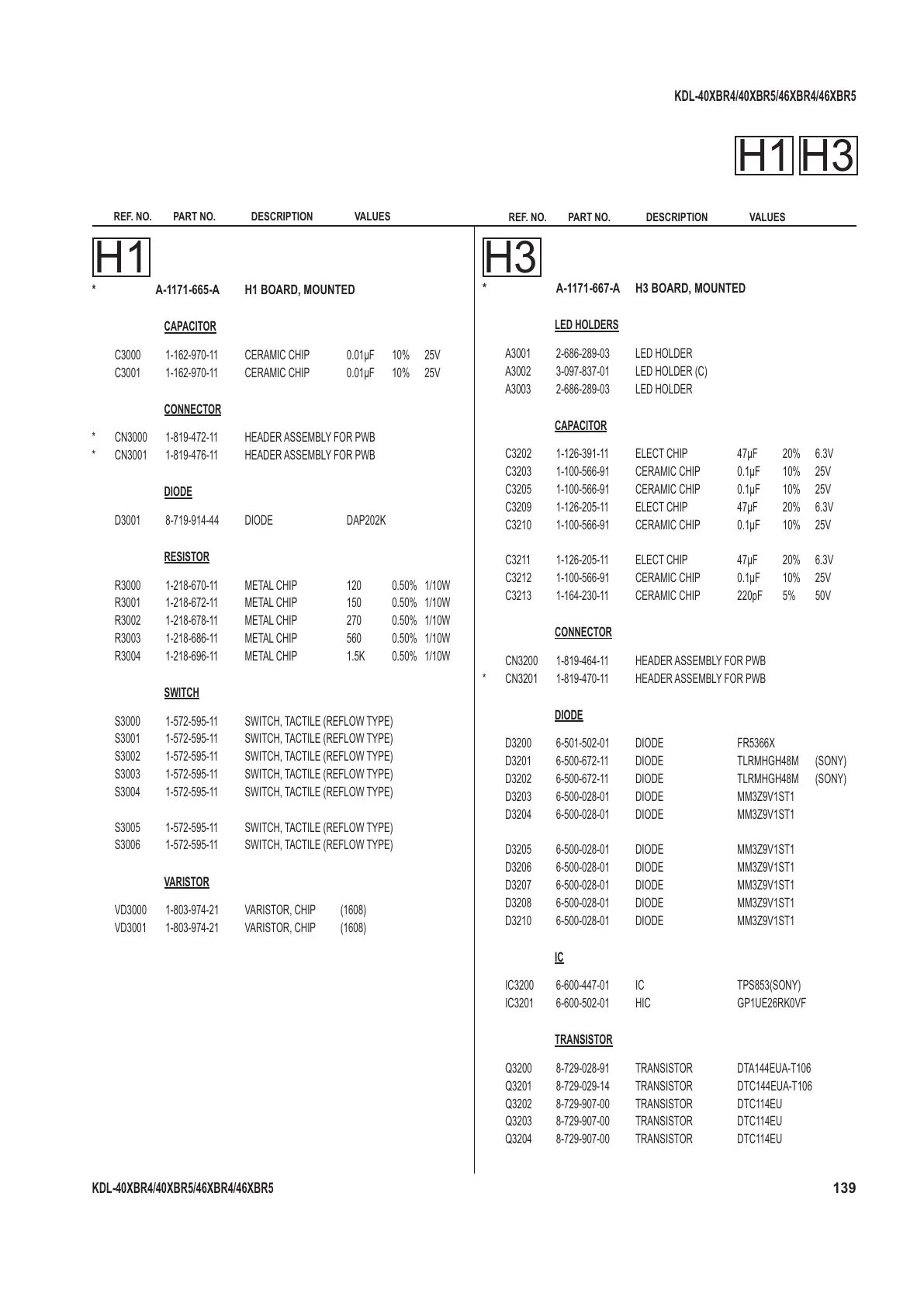

KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5
139
REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
H1
* A-1171-665-A H1 BOARD, MOUNTED
CAPACITOR
C3000 1-162-970-11 CERAMIC CHIP 0.01µF 10% 25V
C3001 1-162-970-11 CERAMIC CHIP 0.01µF 10% 25V
CONNECTOR
* CN3000 1-819-472-11 HEADER ASSEMBLY FOR PWB
* CN3001 1-819-476-11 HEADER ASSEMBLY FOR PWB
DIODE
D3001 8-719-914-44 DIODE DAP202K
RESISTOR
R3000 1-218-670-11 METAL CHIP 120 0.50% 1/10W
R3001 1-218-672-11 METAL CHIP 150 0.50% 1/10W
R3002 1-218-678-11 METAL CHIP 270 0.50% 1/10W
R3003 1-218-686-11 METAL CHIP 560 0.50% 1/10W
R3004 1-218-696-11 METAL CHIP 1.5K 0.50% 1/10W
SWITCH
S3000 1-572-595-11 SWITCH, TACTILE (REFLOW TYPE)
S3001 1-572-595-11 SWITCH, TACTILE (REFLOW TYPE)
S3002 1-572-595-11 SWITCH, TACTILE (REFLOW TYPE)
S3003 1-572-595-11 SWITCH, TACTILE (REFLOW TYPE)
S3004 1-572-595-11 SWITCH, TACTILE (REFLOW TYPE)
S3005 1-572-595-11 SWITCH, TACTILE (REFLOW TYPE)
S3006 1-572-595-11 SWITCH, TACTILE (REFLOW TYPE)
VARISTOR
VD3000 1-803-974-21 VARISTOR, CHIP (1608)
VD3001 1-803-974-21 VARISTOR, CHIP (1608)
H3
* A-1171-667-A H3 BOARD, MOUNTED
LED HOLDERS
A3001 2-686-289-03 LED HOLDER
A3002 3-097-837-01 LED HOLDER (C)
A3003 2-686-289-03 LED HOLDER
CAPACITOR
C3202 1-126-391-11 ELECT CHIP 47µF 20% 6.3V
C3203 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C3205 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C3209 1-126-205-11 ELECT CHIP 47µF 20% 6.3V
C3210 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C3211 1-126-205-11 ELECT CHIP 47µF 20% 6.3V
C3212 1-100-566-91 CERAMIC CHIP 0.1µF 10% 25V
C3213 1-164-230-11 CERAMIC CHIP 220pF 5% 50V
CONNECTOR
CN3200 1-819-464-11 HEADER ASSEMBLY FOR PWB
* CN3201 1-819-470-11 HEADER ASSEMBLY FOR PWB
DIODE
D3200 6-501-502-01 DIODE FR5366X
D3201 6-500-672-11 DIODE TLRMHGH48M (SONY)
D3202 6-500-672-11 DIODE TLRMHGH48M (SONY)
D3203 6-500-028-01 DIODE MM3Z9V1ST1
D3204 6-500-028-01 DIODE MM3Z9V1ST1
D3205 6-500-028-01 DIODE MM3Z9V1ST1
D3206 6-500-028-01 DIODE MM3Z9V1ST1
D3207 6-500-028-01 DIODE MM3Z9V1ST1
D3208 6-500-028-01 DIODE MM3Z9V1ST1
D3210 6-500-028-01 DIODE MM3Z9V1ST1
IC
IC3200 6-600-447-01 IC TPS853(SONY)
IC3201 6-600-502-01 HIC GP1UE26RK0VF
TRANSISTOR
Q3200 8-729-028-91 TRANSISTOR DTA144EUA-T106
Q3201 8-729-029-14 TRANSISTOR DTC144EUA-T106
Q3202 8-729-907-00 TRANSISTOR DTC114EU
Q3203 8-729-907-00 TRANSISTOR DTC114EU
Q3204 8-729-907-00 TRANSISTOR DTC114EU
H1 H3
