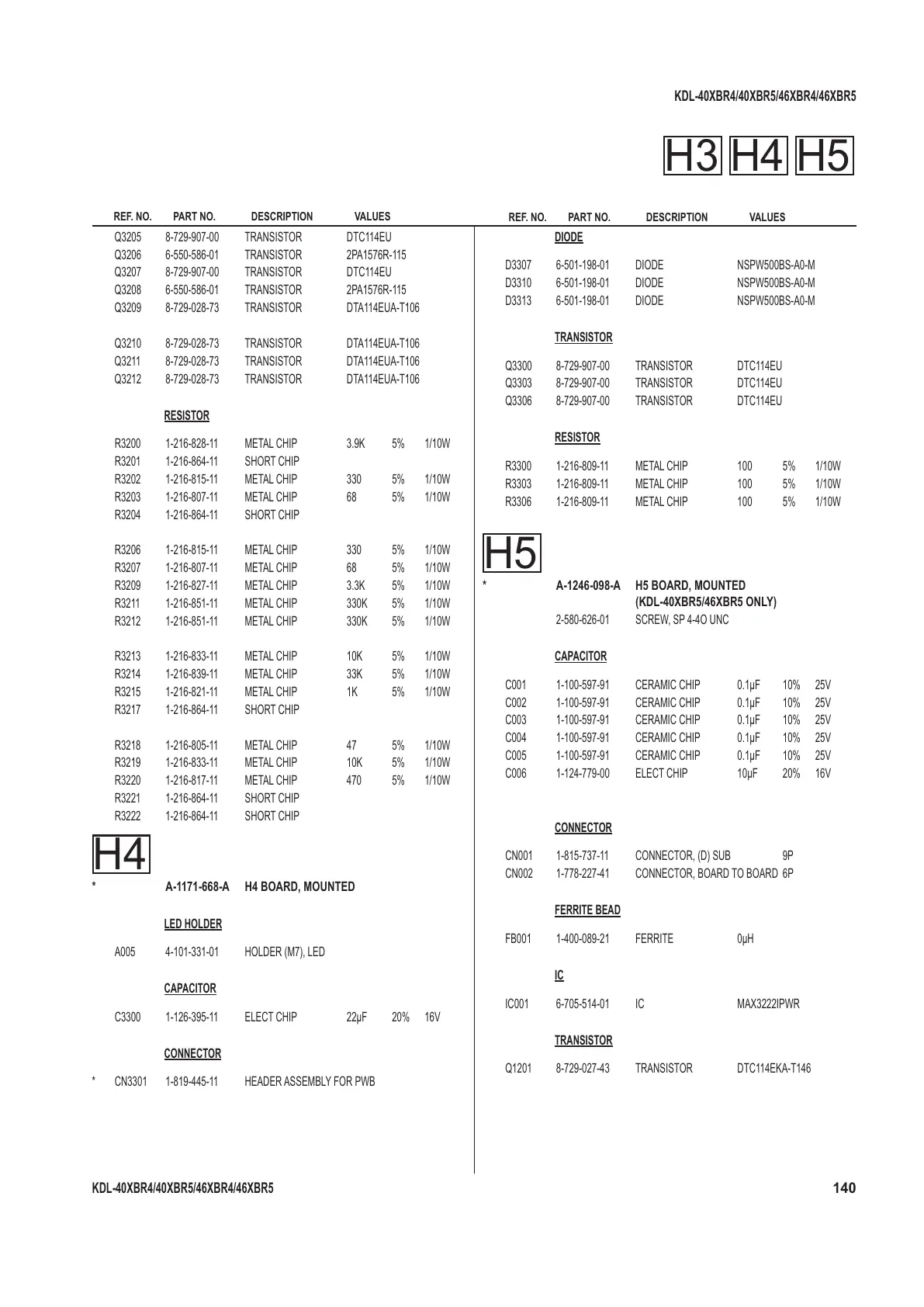

KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5
140
REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
Q3205 8-729-907-00 TRANSISTOR DTC114EU
Q3206 6-550-586-01 TRANSISTOR 2PA1576R-115
Q3207 8-729-907-00 TRANSISTOR DTC114EU
Q3208 6-550-586-01 TRANSISTOR 2PA1576R-115
Q3209 8-729-028-73 TRANSISTOR DTA114EUA-T106
Q3210 8-729-028-73 TRANSISTOR DTA114EUA-T106
Q3211 8-729-028-73 TRANSISTOR DTA114EUA-T106
Q3212 8-729-028-73 TRANSISTOR DTA114EUA-T106
RESISTOR
R3200 1-216-828-11 METAL CHIP 3.9K 5% 1/10W
R3201 1-216-864-11 SHORT CHIP
R3202 1-216-815-11 METAL CHIP 330 5% 1/10W
R3203 1-216-807-11 METAL CHIP 68 5% 1/10W
R3204 1-216-864-11 SHORT CHIP
R3206 1-216-815-11 METAL CHIP 330 5% 1/10W
R3207 1-216-807-11 METAL CHIP 68 5% 1/10W
R3209 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R3211 1-216-851-11 METAL CHIP 330K 5% 1/10W
R3212 1-216-851-11 METAL CHIP 330K 5% 1/10W
R3213 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3214 1-216-839-11 METAL CHIP 33K 5% 1/10W
R3215 1-216-821-11 METAL CHIP 1K 5% 1/10W
R3217 1-216-864-11 SHORT CHIP
R3218 1-216-805-11 METAL CHIP 47 5% 1/10W
R3219 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3220 1-216-817-11 METAL CHIP 470 5% 1/10W
R3221 1-216-864-11 SHORT CHIP
R3222 1-216-864-11 SHORT CHIP
H4
* A-1171-668-A H4 BOARD, MOUNTED
LED HOLDER
A005 4-101-331-01 HOLDER (M7), LED
CAPACITOR
C3300 1-126-395-11 ELECT CHIP 22µF 20% 16V
CONNECTOR
* CN3301 1-819-445-11 HEADER ASSEMBLY FOR PWB
DIODE
D3307 6-501-198-01 DIODE NSPW500BS-A0-M
D3310 6-501-198-01 DIODE NSPW500BS-A0-M
D3313 6-501-198-01 DIODE NSPW500BS-A0-M
TRANSISTOR
Q3300 8-729-907-00 TRANSISTOR DTC114EU
Q3303 8-729-907-00 TRANSISTOR DTC114EU
Q3306 8-729-907-00 TRANSISTOR DTC114EU
RESISTOR
R3300 1-216-809-11 METAL CHIP 100 5% 1/10W
R3303 1-216-809-11 METAL CHIP 100 5% 1/10W
R3306 1-216-809-11 METAL CHIP 100 5% 1/10W
H5
* A-1246-098-A H5 BOARD, MOUNTED
(KDL-40XBR5/46XBR5 ONLY)
2-580-626-01 SCREW, SP 4-4O UNC
CAPACITOR
C001 1-100-597-91 CERAMIC CHIP 0.1µF 10% 25V
C002 1-100-597-91 CERAMIC CHIP 0.1µF 10% 25V
C003 1-100-597-91 CERAMIC CHIP 0.1µF 10% 25V
C004 1-100-597-91 CERAMIC CHIP 0.1µF 10% 25V
C005 1-100-597-91 CERAMIC CHIP 0.1µF 10% 25V
C006 1-124-779-00 ELECT CHIP 10µF 20% 16V
CONNECTOR
CN001 1-815-737-11 CONNECTOR, (D) SUB 9P
CN002 1-778-227-41 CONNECTOR, BOARD TO BOARD 6P
FERRITE BEAD
FB001 1-400-089-21 FERRITE 0µH
IC
IC001 6-705-514-01 IC MAX3222IPWR
TRANSISTOR
Q1201 8-729-027-43 TRANSISTOR DTC114EKA-T146
H5H3 H4
