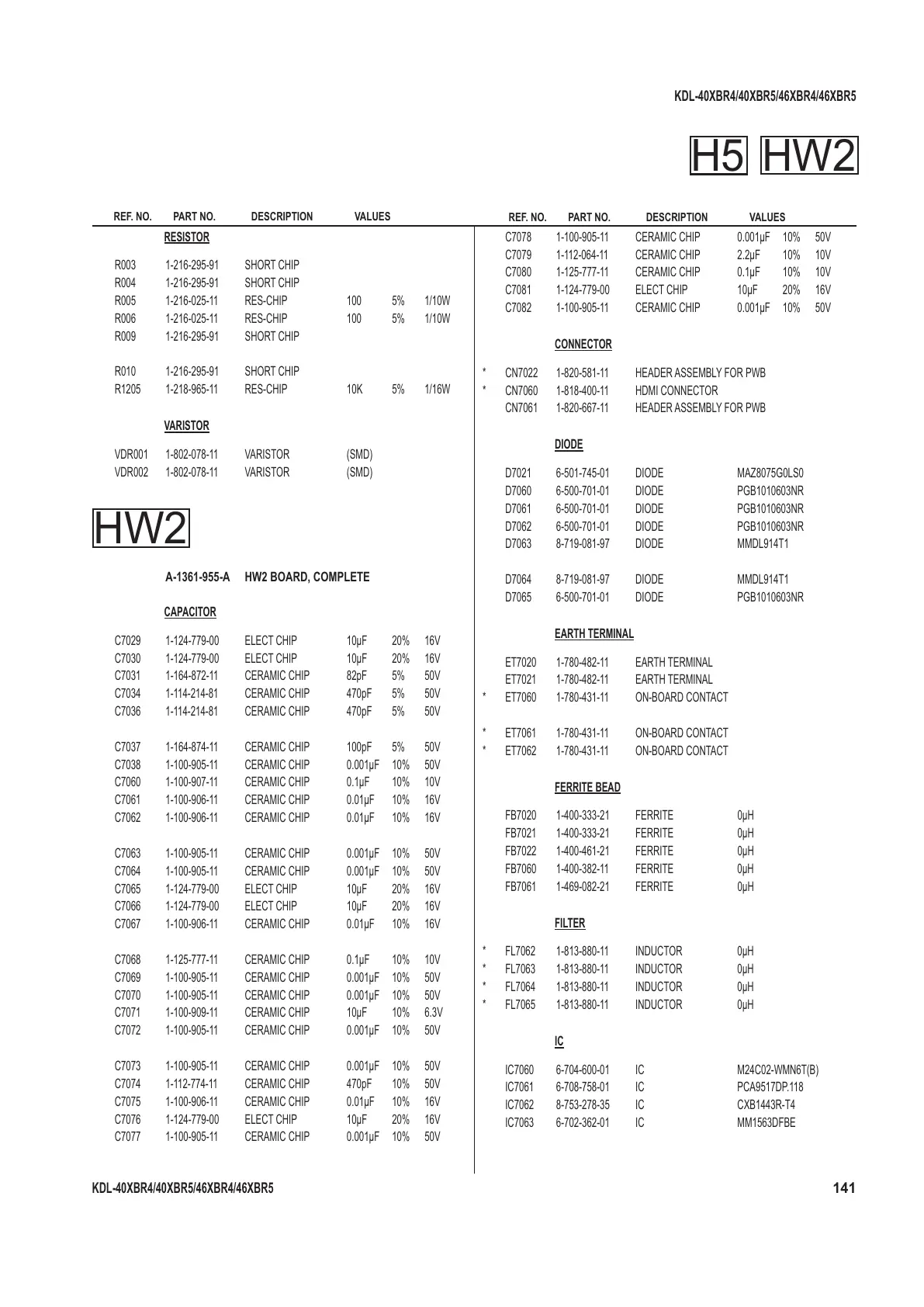

KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5
141
REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
RESISTOR
R003 1-216-295-91 SHORT CHIP
R004 1-216-295-91 SHORT CHIP
R005 1-216-025-11 RES-CHIP 100 5% 1/10W
R006 1-216-025-11 RES-CHIP 100 5% 1/10W
R009 1-216-295-91 SHORT CHIP
R010 1-216-295-91 SHORT CHIP
R1205 1-218-965-11 RES-CHIP 10K 5% 1/16W
VARISTOR
VDR001 1-802-078-11 VARISTOR (SMD)
VDR002 1-802-078-11 VARISTOR (SMD)
HW2
A-1361-955-A HW2 BOARD, COMPLETE
CAPACITOR
C7029 1-124-779-00 ELECT CHIP 10µF 20% 16V
C7030 1-124-779-00 ELECT CHIP 10µF 20% 16V
C7031 1-164-872-11 CERAMIC CHIP 82pF 5% 50V
C7034 1-114-214-81 CERAMIC CHIP 470pF 5% 50V
C7036 1-114-214-81 CERAMIC CHIP 470pF 5% 50V
C7037 1-164-874-11 CERAMIC CHIP 100pF 5% 50V
C7038 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C7060 1-100-907-11 CERAMIC CHIP 0.1µF 10% 10V
C7061 1-100-906-11 CERAMIC CHIP 0.01µF 10% 16V
C7062 1-100-906-11 CERAMIC CHIP 0.01µF 10% 16V
C7063 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C7064 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C7065 1-124-779-00 ELECT CHIP 10µF 20% 16V
C7066 1-124-779-00 ELECT CHIP 10µF 20% 16V
C7067 1-100-906-11 CERAMIC CHIP 0.01µF 10% 16V
C7068 1-125-777-11 CERAMIC CHIP 0.1µF 10% 10V
C7069 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C7070 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C7071 1-100-909-11 CERAMIC CHIP 10µF 10% 6.3V
C7072 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C7073 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C7074 1-112-774-11 CERAMIC CHIP 470pF 10% 50V
C7075 1-100-906-11 CERAMIC CHIP 0.01µF 10% 16V
C7076 1-124-779-00 ELECT CHIP 10µF 20% 16V
C7077 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C7078 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C7079 1-112-064-11 CERAMIC CHIP 2.2µF 10% 10V
C7080 1-125-777-11 CERAMIC CHIP 0.1µF 10% 10V
C7081 1-124-779-00 ELECT CHIP 10µF 20% 16V
C7082 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
CONNECTOR
* CN7022 1-820-581-11 HEADER ASSEMBLY FOR PWB
* CN7060 1-818-400-11 HDMI CONNECTOR
CN7061 1-820-667-11 HEADER ASSEMBLY FOR PWB
DIODE
D7021 6-501-745-01 DIODE MAZ8075G0LS0
D7060 6-500-701-01 DIODE PGB1010603NR
D7061 6-500-701-01 DIODE PGB1010603NR
D7062 6-500-701-01 DIODE PGB1010603NR
D7063 8-719-081-97 DIODE MMDL914T1
D7064 8-719-081-97 DIODE MMDL914T1
D7065 6-500-701-01 DIODE PGB1010603NR
EARTH TERMINAL
ET7020 1-780-482-11 EARTH TERMINAL
ET7021 1-780-482-11 EARTH TERMINAL
* ET7060 1-780-431-11 ON-BOARD CONTACT
* ET7061 1-780-431-11 ON-BOARD CONTACT
* ET7062 1-780-431-11 ON-BOARD CONTACT
FERRITE BEAD
FB7020 1-400-333-21 FERRITE 0µH
FB7021 1-400-333-21 FERRITE 0µH
FB7022 1-400-461-21 FERRITE 0µH
FB7060 1-400-382-11 FERRITE 0µH
FB7061 1-469-082-21 FERRITE 0µH
FILTER
* FL7062 1-813-880-11 INDUCTOR 0µH
* FL7063 1-813-880-11 INDUCTOR 0µH
* FL7064 1-813-880-11 INDUCTOR 0µH
* FL7065 1-813-880-11 INDUCTOR 0µH
IC
IC7060 6-704-600-01 IC M24C02-WMN6T(B)
IC7061 6-708-758-01 IC PCA9517DP.118
IC7062 8-753-278-35 IC CXB1443R-T4
IC7063 6-702-362-01 IC MM1563DFBE
HW2H5
