DVP-NS975V
Power board
PL-035 board
(POWER SWITCH)
IF-115 board
(INTERFACE)
AV-086 board
(VIDEO, AUDIO)
MB-118 board
(SYSTEM, SERVO, 8ch DAC,
PS-TROUGH, PROGE, HDMI)
MB-118 BOARD
A SIDE
IC101 A-2
IC102 C-2
IC103 C-4
IC104 C-4
IC106 C-5
IC201 B-4
IC401 B-4
IC501 E-1
IC503 F-2
IC506 E-2
IC507 F-3
IC508 E-2
IC601 E-4
IC602 F-4
IC603 G-5
Q103 C-1
Q401 B-5
D301 D-4
D403 B-5
B SIDE
IC105 B-5
IC107 D-4
IC108 B-3
IC301 D-2
IC502 F-5
IC505 E-3
IC509 F-4
IC604 F-2
IC605 F-1
IC606 F-2
IC607 G-3
IC608 E-3
Q102 C-5
Q402 B-1
Q403 C-1
Q404 C-1
Q601 E-2
Q602 E-2
D302 D-3
D303 D-3
D601 G-2
D602 G-2
D603 G-2
D604 G-2
D605 G-2
D606 G-2
D607 G-1
D608 G-1
D609 G-1
D610 G-1
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
For printed wiring board
SYSTEM, SERVO, 8ch DAC, PROGRE, HDMI
MB-118

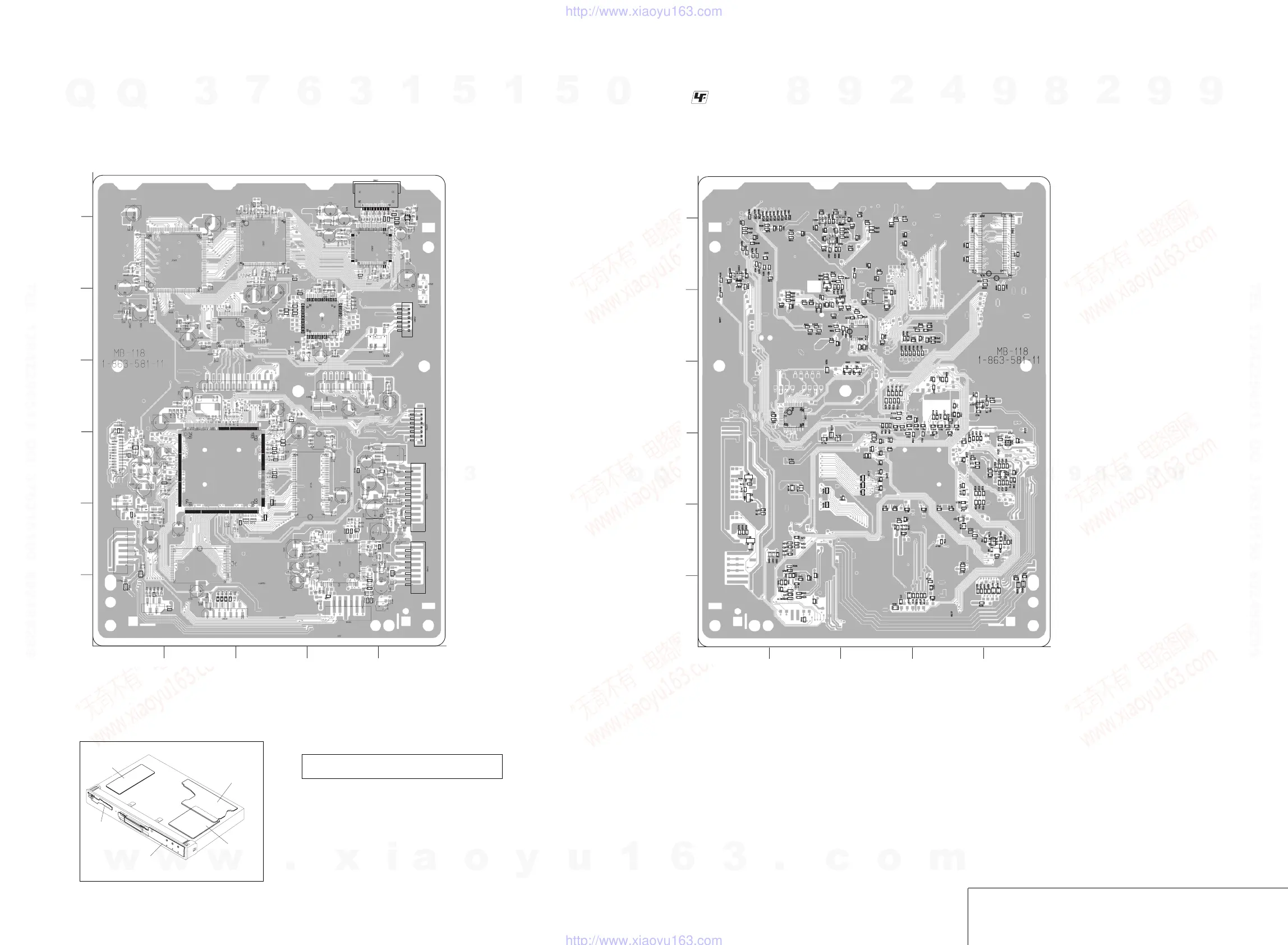

MB-118 (SYSTEM, SERVO, 8ch DAC, PROGRE, HDMI) PRINTED WIRING BOARD
• : Uses unleaded solder.
MB-118 BOARD SIDE A MB-118 BOARD SIDE B
4-5
