Sony SHAKE-99D - Cdm90-Dvbu202;;M; Front Panel Section

HCD-SHAKE99/HCDSHAKE100
11
7 six screws
(+BVTP 3 u 8)
1 flexible flat cable
(10 core) (CN102)
3 flexible flat cable
(23 core) (CN109)
2 ffc 8P (8 core) (CN105)
5 CN451 (10P)
8 front panel section
K
L
M
K
L
M
front side
MOTHERBOARD board
4 Wire is removed
from the pin, lead.
6 CN601 (4P)
:LUHVHWWLQJ
pin, lead
6+$.(86$86
+&'6+$.(($0<6$)

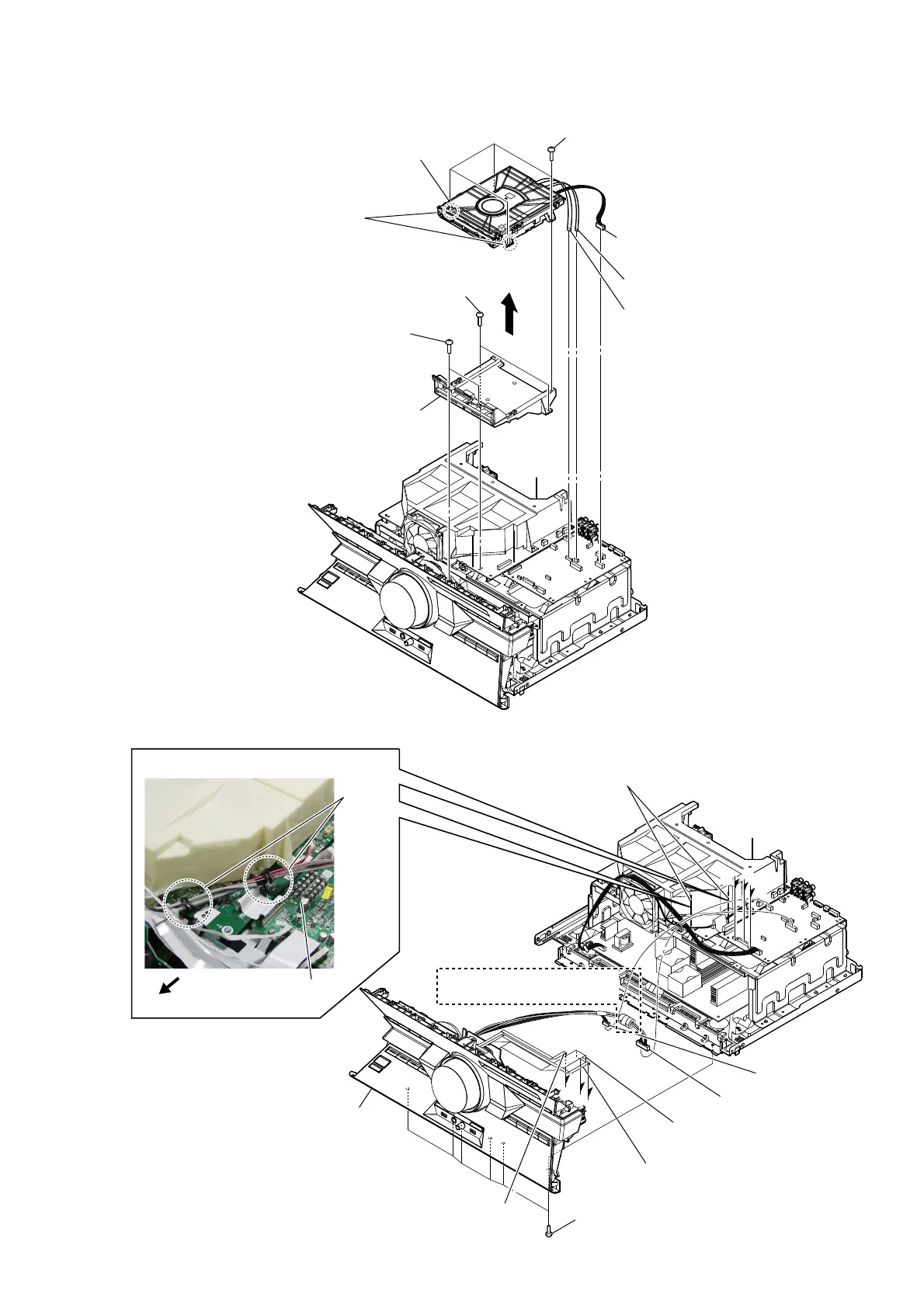

2-4. CDM90-DVBU202//M
2-5. FRONT PANEL SECTION
6
1 CN401 (6P)
2 wire (flat type) (5 core)
(CN303)
3 cable, flexible flat (24 core)
(CN302)
4 four screws
(+BVTP 3 u 8)
8 two screws
(+BVTP 3 u 8)
9 two screws
(+BVTP 3 u 8)
Note: When you install the CD/DVD
drive (CDM90-DVBU202//M),
please match the position of
the boss two places.
5 boss
7 CDM90-DVBU202//M
0 bracket, CDM (M9)
Ver. 1.2
• Abbreviation
AUS : Australian model
EA : Saudi Arabia model
MY : Malaysia model
SAF : South African model
