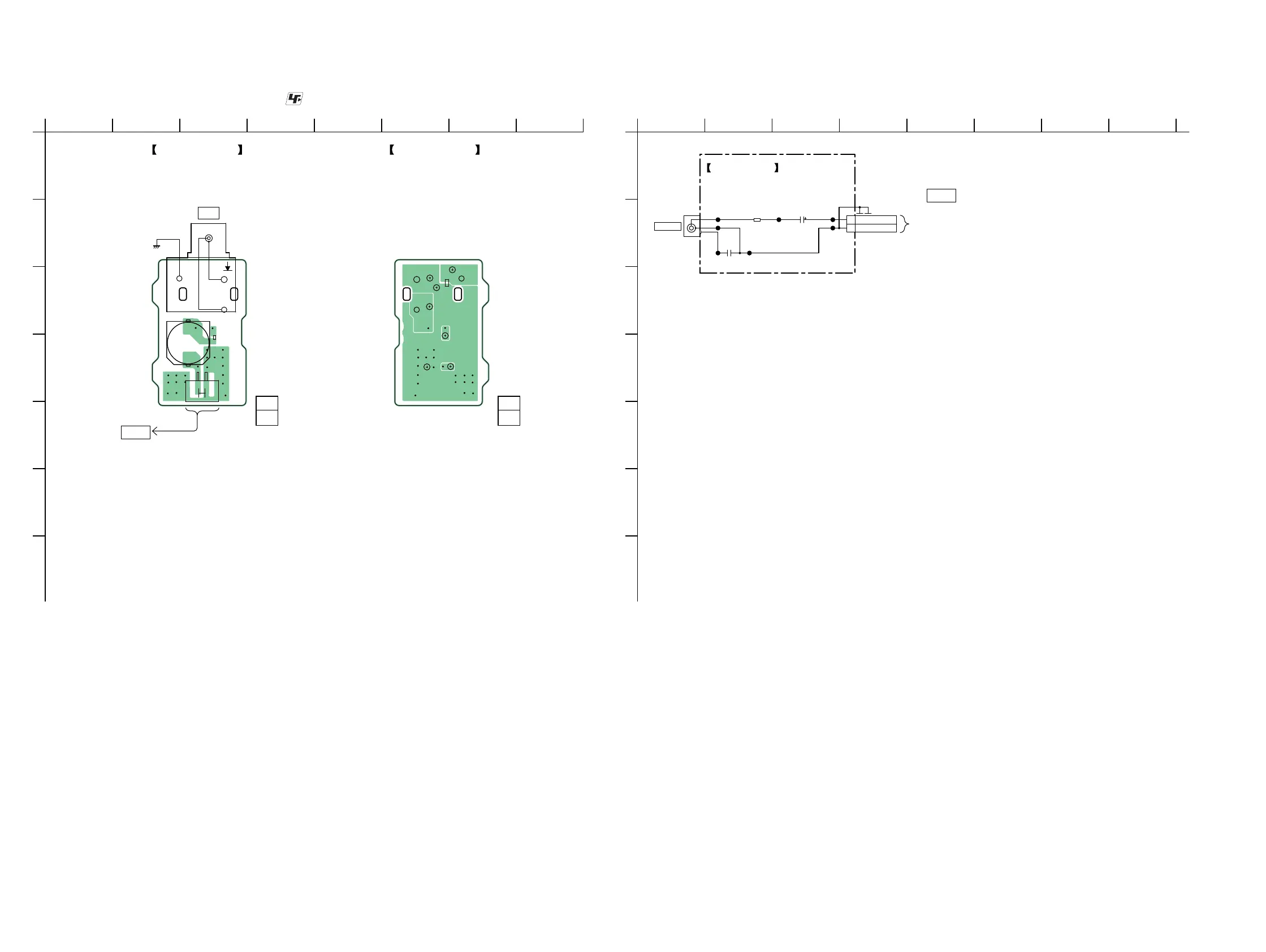

6-39. PRINTED WIRING BOARD - VIDEO Board (HCDSHAKE100) -
• See page 32 for Circuit Boards Location.
•
: Uses unleaded solder.
1
A
B
C
D
E
F
G
2 3 4 5 6 7 8
12
CN5000
C5002
J5000
R5000
CL5000
CL5003
CL5001
CL5005
CL5004
CL5006
CL5002
C5000
VIDEO BOARD
(HCDSHAKE100)
(CONDUCTOR SIDE)
VIDEO BOARD
(HCDSHAKE100)
(COMPONENT SIDE)
1-893-100-
11
(11)
1-893-100-
11
(11)
(CHASSIS)
MOTHERBOARD
BOARD
CN901
(Page 33)
>006P
VIDEO
OUT
6-40. SCHEMATIC DIAGRAM - VIDEO Board (HCDSHAKE100) -
1
A
B
C
D
E
F
G
2 3 4 5 6 7 8
VIDEO BOARD
(HCDSHAKE100)
2P
CN5000
1GND
2 Vout
6.3V
1000u
C5002
75
R5000
0.001u
C5000
J5000
1
2
3
CL5001
CL5002
CL5000
CL5003
CL5004
CL5005
CL5006
>010S
MOTHERBOARD
BOARD
(2/9)
CN901
(Page 36)
VIDEO OUT
