HCD-SHAKE99/HCDSHAKE100
10
qa
qs back panel section
pin, lead
rear side
MOTHERBOARD board
:LUHVHWWLQJ
3 Wire is removed
from the pin, lead.
2 flexible flat cable
(9 core) (CN851)
1 CN901 (2P)
4 CN1003 (3P)
5 CN1004 (3P)
6 four screws
(+BVTP 3 u 8)
7 three screws
(+BVTP 3 u 8)
8 two screws
(+BVTP 3 u 8)
9 two screws
(+BVTP 3 u 8)
0 two screws
(+BVTP 3 u 8)
(HCDSHAKE100)

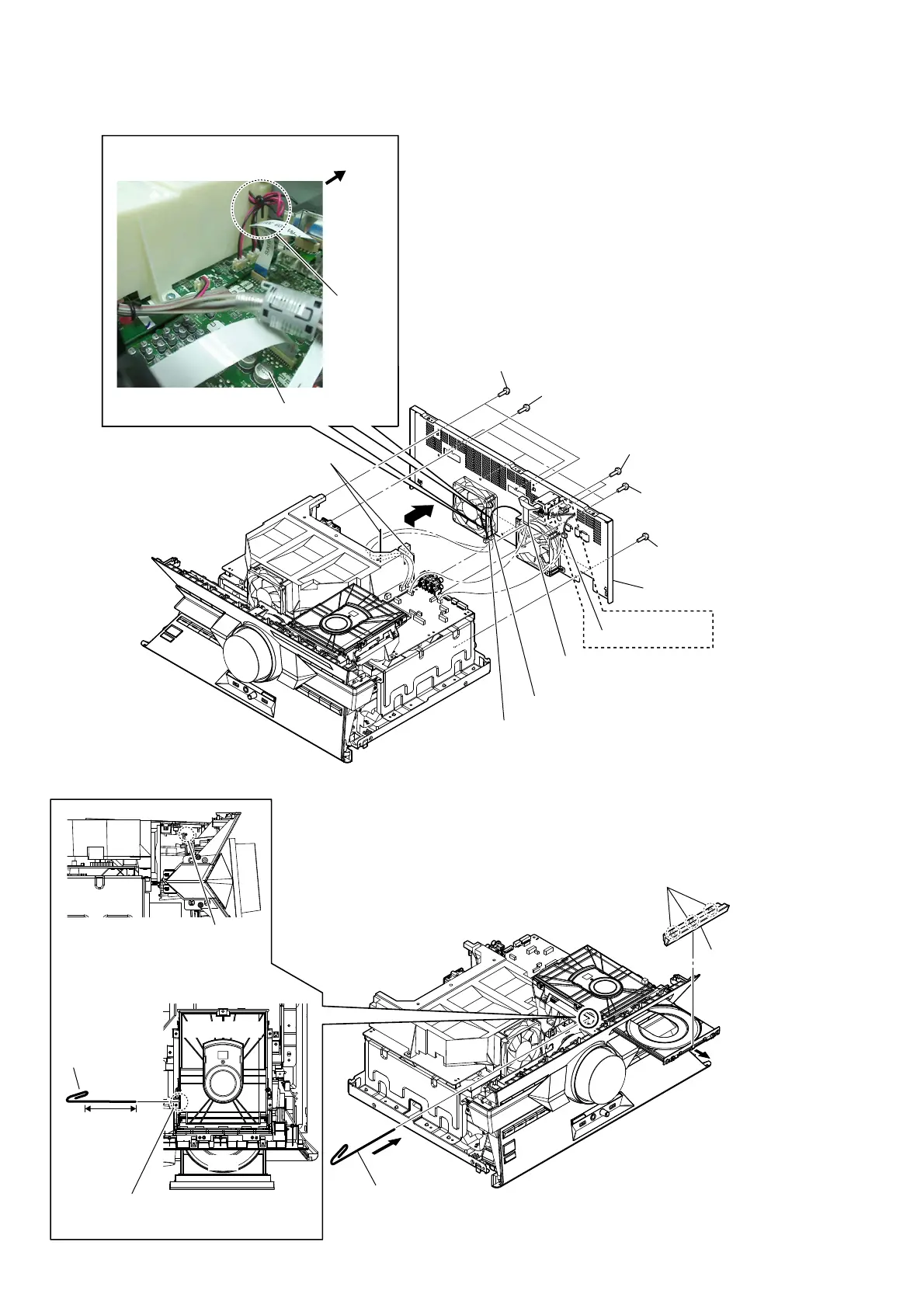

2-2. BACK PANEL SECTION
2-3. PANEL, LOADING ASSY
1 Insert the clip etc.
2
3 three claws
4 panel, loading
assy
CD/DVD drive
tray
Insert the clip etc.
processed to the
length of 8 cm or
more in the hole
on the side of the
chassis and push.
8 cm or more
hole
– Side view –
– Top view –
Note:
Push after it inserts it in this hole well.
