Sony SHAKE-99D - Switching Regulator

HCD-SHAKE99/HCDSHAKE100
13
0 chassis, assy (M9)
1 six screws
(+PWH 3 u 8 (SUMITITE))
4 chassis, sub (M9)
2 holder, wire
3 holder, wire
5 CN101/
CN102 (3P)
7 ten screws
(+PWH 3 u 8 (SUMITITE))
9 SWITCHING REGULATOR
8 clamp
6
(SHAKE99: US, AUS/
HCDSHAKE100: EA,
MY, SAF)

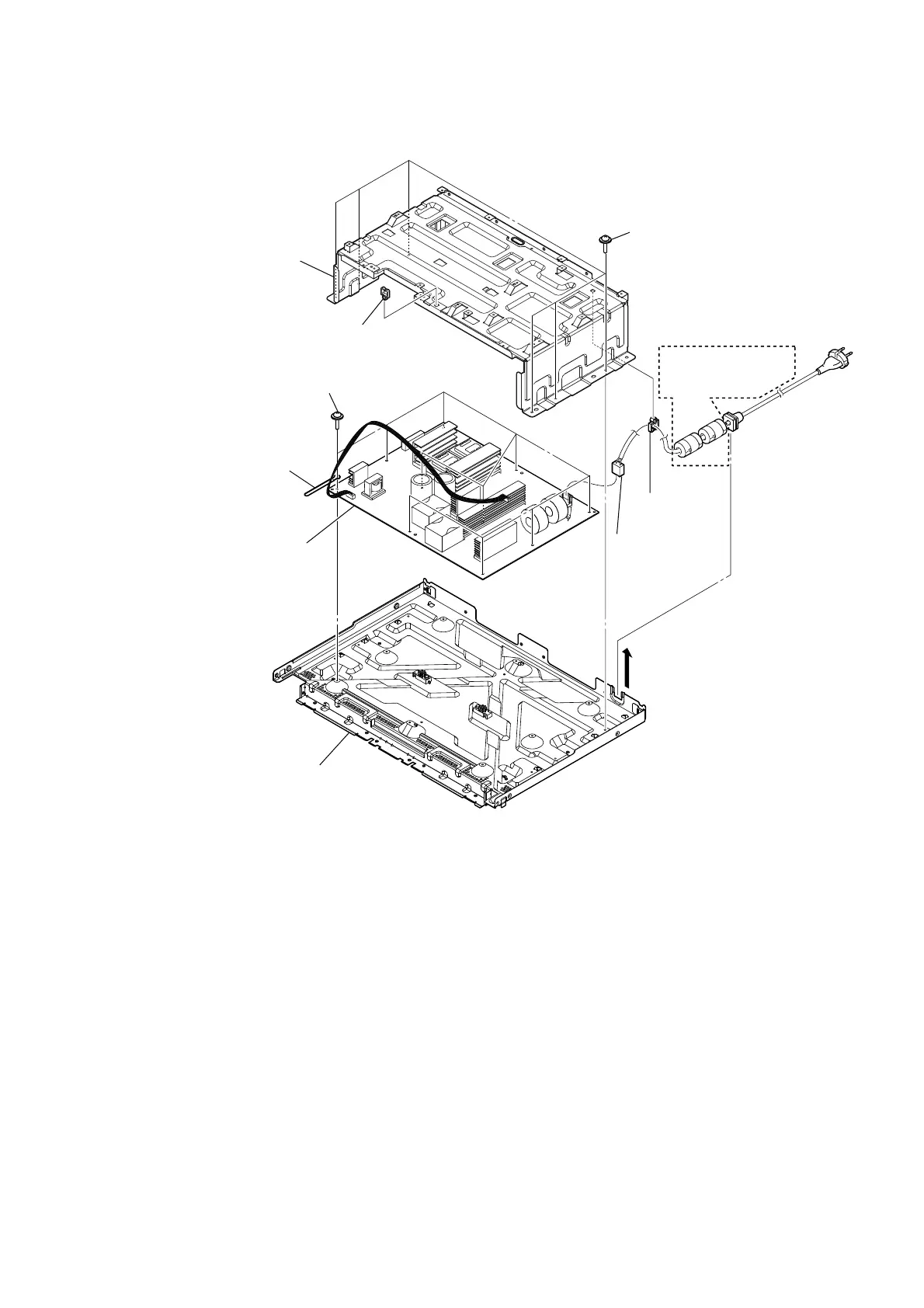

2-8. SWITCHING REGULATOR
Ver. 1.2
• Abbreviation
AUS : Australian model
EA : Saudi Arabia model
MY : Malaysia model
SAF : South African model
