HCD-SHAKE99/HCDSHAKE100
SECTION 7
EXPLODED VIEWS
Note:
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Items marked “*” are not stocked since
they are seldom required for routine
service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Accessories are given in the last of this
parts list.
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.

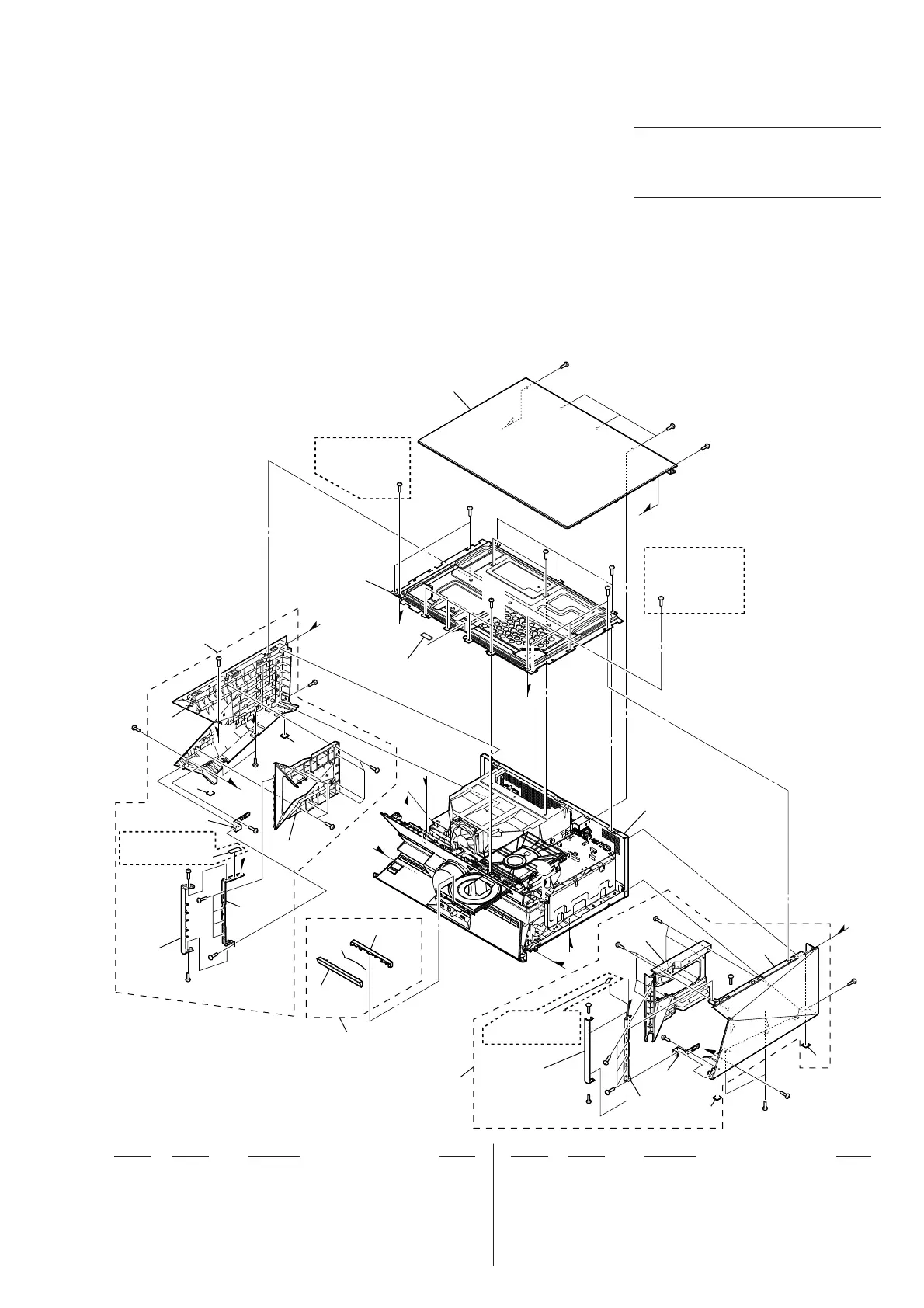

7-1. SIDE PANEL SECTION
1 4-449-853-11 PANEL, TOP
2 4-449-863-11 CASE, TOP
3 X-2588-433-2 PANEL, SIDE-L ASSY (EXCEPT US)
3 X-2588-738-2 PANEL, SIDE-L ASSY (US)
4 4-176-619-01 FOOT, RUBBER
5 X-2588-434-2 PANEL, SIDE-R ASSY (EXCEPT US)
5 X-2588-739-2 PANEL, SIDE-R ASSY (US)
6 X-2589-177-1 PANEL, LOADING ASSY
7 4-295-431-01 SPRING, LOADING
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
• Abbreviation
AR : Argentina model
AUS : Australian model
E2 : 120 V AC area in E model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
MX : Mexican model
MY : Malaysia model
SAF : South African model
B
A
C
G
F
J
J
G
H
I
I
H
B
A
#2
#2
#2
#2
#1
#2
#2
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
1
5
4
4
not
supplied
not supplied
not
supplied
not
supplied
not
supplied
not
supplied
not supplied
back panel section
D
C
E
F
E
D
#2
#1
#2
#2
#1
#1
#1
#1
#1
#1
3
2
4
4
not supplied
not supplied
not
supplied
not
supplied
not
supplied
not
supplied
7
not
supplied
not supplied
6
(EXCEPT
SHAKE99: US)
(EXCEPT
SHAKE99: US)
(SHAKE99: US)
(SHAKE99: US)
Ver. 1.2
