Sony SHAKE-99D - MOTHERBOARD Board Section

84
HCD-SHAKE99/HCDSHAKE100
#1
#1
#1
#1
#1
not supplied
not supplied
not
supplied
chassis section
153
154
156
155
152
151
not supplied

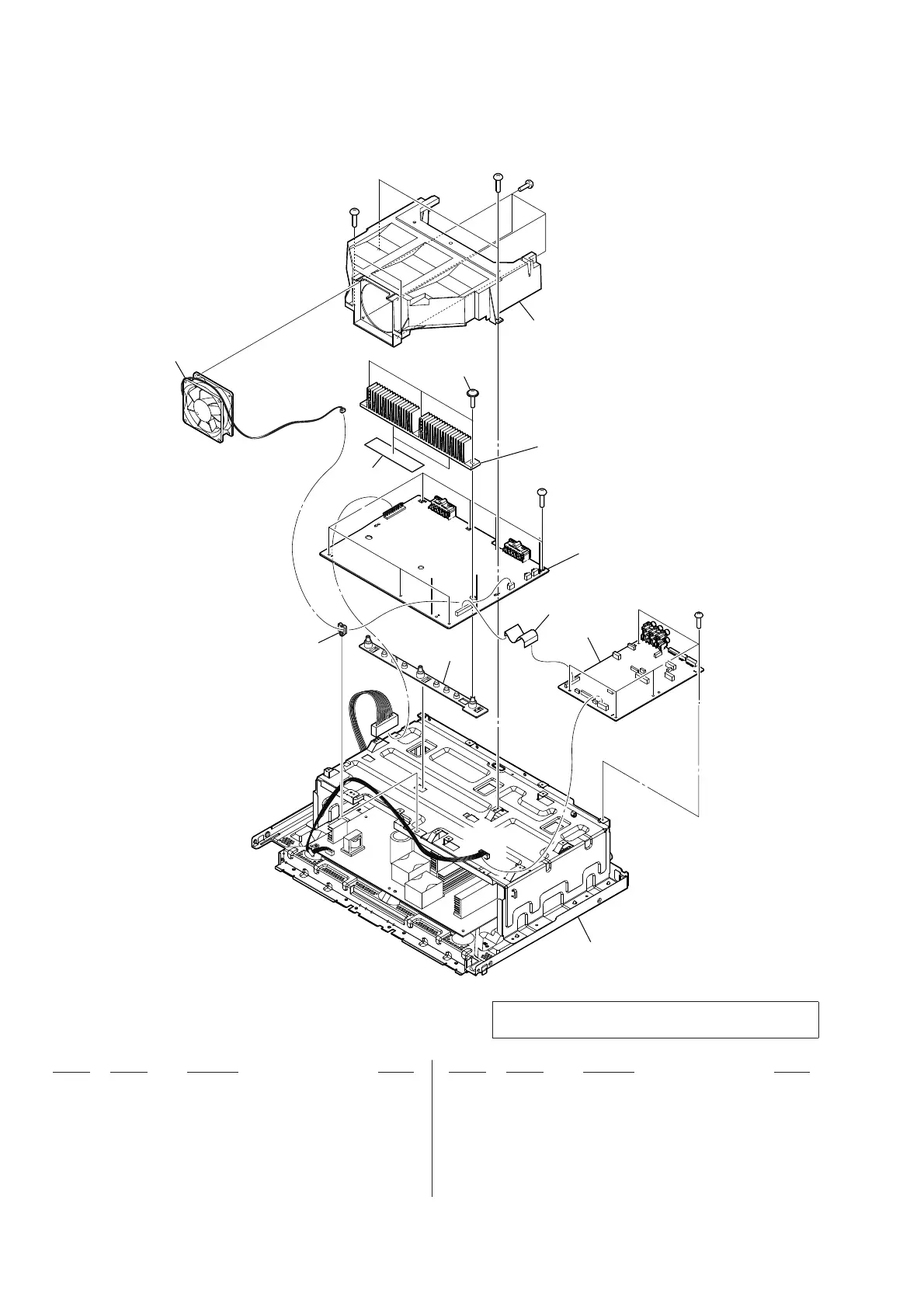

7-4. MOTHERBOARD BOARD SECTION
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
151 A-2041-023-A MOTHERBOARD BOARD, COMPLETE
(E2, E51, AR)
151 A-2041-024-A MOTHERBOARD BOARD, COMPLETE (US)
151 A-2041-025-A MOTHERBOARD BOARD, COMPLETE (MX)
151 A-2041-026-A MOTHERBOARD BOARD, COMPLETE (AUS)
151 A-2041-028-A MOTHERBOARD BOARD, COMPLETE (EA)
151 A-2041-029-A MOTHERBOARD BOARD, COMPLETE (MY)
151 A-2041-030-A MOTHERBOARD BOARD, COMPLETE (SAF)
152 1-828-396-21 WIRE (FLAT TYPE) (27 CORE)
0 153 1-855-006-51 DC FAN
154 4-435-965-01 SCREW+PTPWH 2.6XL (DIA8.0)
155 4-488-053-01 THERMAL SHEET
156 A-1977-063-A 10CH DAMP BOARD, COMPLETE
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.1
