HCD-SHAKE99/HCDSHAKE100

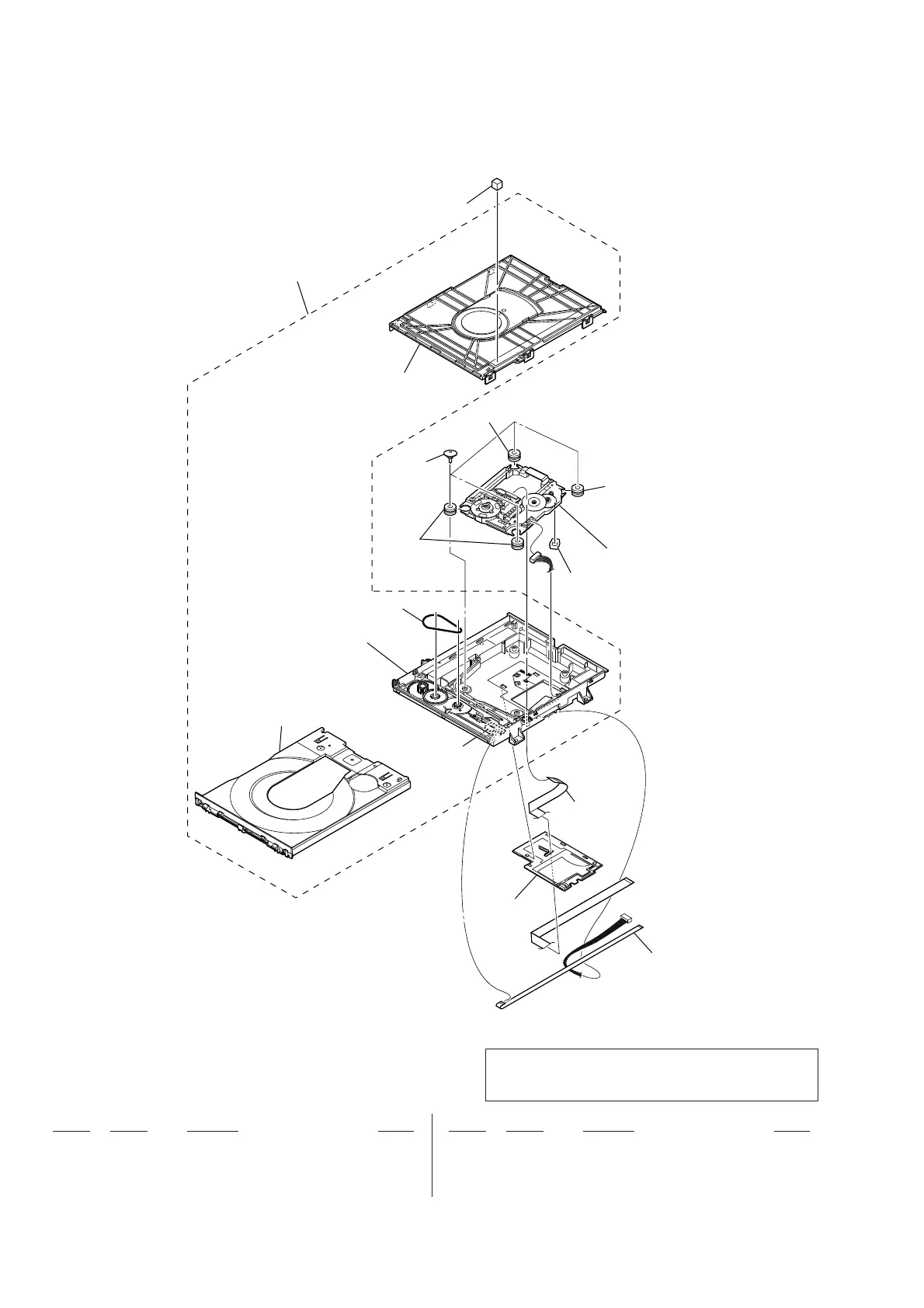

7-6. CD MECHANISM SECTION
(CDM90-DVBU202//M)
251 A-1896-391-B LOADING COMPLETE ASSY (T)
(including MS-476 board)
252 3-087-599-01 INSULATOR SCREW
253 2-634-618-21 INSULATOR
0
254 A-2046-956-A SERVICE, OPTICAL DEVICE(7G)
255 1-828-293-21 WIRE (FLAT TYPE) (5 CORE)
256 1-836-504-11 CABLE, FLEXIBLE FLAT (24 CORE)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
not supplied
not supplied
not supplied
not supplied
(MS-476 board)
not supplied
not supplied
not supplied
251 (including MS-476 board)
252
253
253
253
254
256
255
Note: If cable, fl exible fl at and wires (fl at type) is replaced,
install it after bending it in the same form as that
before replacement.
