Sony SHAKE-99D - Front Panel Section

83
HCD-SHAKE99/HCDSHAKE100

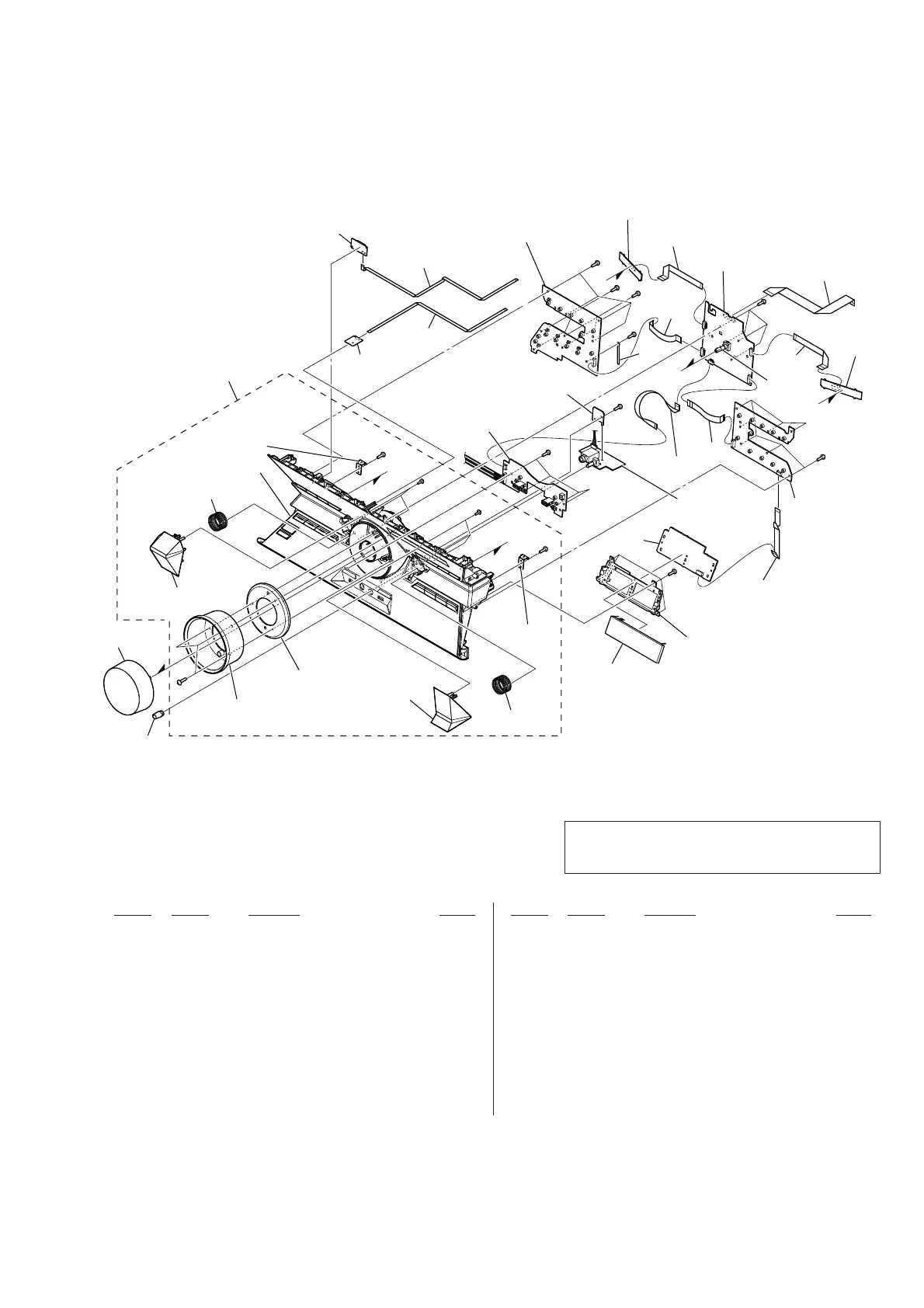

7-3. FRONT PANEL SECTION
101 4-449-856-12 KNOB, VOL
102 1-848-364-21 FLEXIBLE FLAT CABLE (23 CORE)
103 1-848-363-21 FLEXIBLE FLAT CABLE (10 CORE)
104 1-848-362-21 FLEXIBLE FLAT CABLE (10 CORE)
105 1-828-316-21 WIRE (FLAT TYPE) (11 CORE)
* 106 3-703-150-11 CLAMP
107 1-828-298-21 WIRE (FLAT TYPE) (7 CORE)
108 4-411-587-01 KNOB (MIC)
109 A-1977-052-A DISPLAY BOARD, COMPLETE
110 8-989-470-00 RC-S801/A (WW)
111 1-848-367-61 FFC 8P (8 CORE)
112 1-492-699-11 BLUETOOTH MODULE
113 1-848-366-61 FLEXIBLE FLAT CABLE (10 CORE)
114 X-2588-432-2 PANEL, FRONT ASSY (E51) (EXCEPT US)
114 X-2588-737-2 PANEL, FRONT ASSY (U2) (US)
114 X-2589-264-2 PANEL, FRONT ASSY (EA3) (HCDSHAKE100)
FL2212 1-483-465-11 VACUUM FLUORESCENT DISPLAY
S2000 1-786-417-11 ENCODER, ROTARY (VOLUME / DJ CONTROL)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-647-71 SCREW +BVTP 3X10 TYPE2 IT-3
#4 7-685-000-12 TAPPING +PWH 2X4 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If fl exible fl at cable, wires (fl at type) and ffc 8P
is replaced, install it after bending it in the same
form as that before replacement.
O
O
P
P
Q
Q
#3
#3
#3
#4
#4
not supplied
not supplied
101
#1
#1
#1
#1
#1
#1
#1
#1
#1
not supplied
(VOLUME board)
not supplied
(BUTTON LEFT board)
not supplied
(BUTTON RIGHT
board)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(LED BAR LEFT board)
not supplied
(LED BAR
RIGHT board)
S2000
102
103
104
105
106
FL2212
105
107
108
109
107
110
112
113
114
111
not supplied
(MIC SUPPORT board)
not supplied
(MIC board)
not supplied
(USB board)
Ver. 1.1
