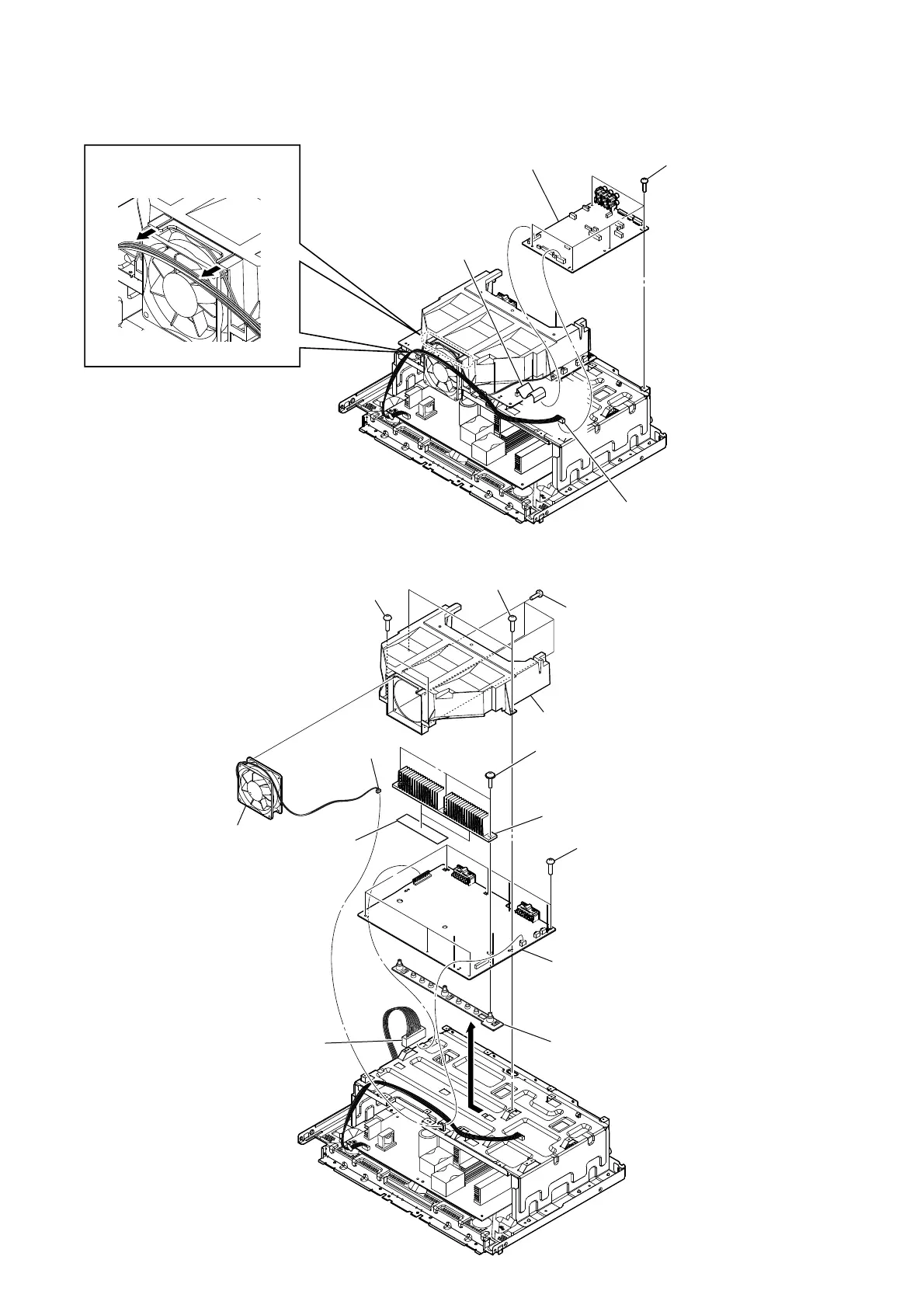

Sony SHAKE-99D - MOTHERBOARD Board; 10 CH DAMP Board

HCD-SHAKE99/HCDSHAKE100
12
qd bracket, heat sink (M9)
9 CN1000 (10P)
1 CN1001
(3P)
qa 10CH DAMP board
qs
2 two screws
(+BVTP 3 u 8)
3 four screws
(+BVTP 3 u 8)
2 two screws
(+BVTP 3 u 8)
5 bracket, tunnel (M9)
4 DC fan
6 three screws
(+PTPWH 2.6 u L (DIA8.0))
8 heat sink (M9)
7 thermal
sheet
0 six screws
(+BVTP 3 u 8)
4 five screws
(+BVTP 3 u 8)
5 MOTHERBOARD board
2 CN001 (6P)
3 wire (flat type)
(27 core) (CN110)
1 Remove the wire from the hook.
2-6. MOTHERBOARD BOARD
2-7. 10CH DAMP BOARD
