Sony SHAKE-99D - Service, Optical Device(7 G), Cable, Flexible Flat

HCD-SHAKE99/HCDSHAKE100
14
8 four insulator screws
7 connector
qa insulator
6 belt
3 Insert the thin
wire (clip etc.).
5 tray
qs service,
optical device(7G)
qa insulator
qa insulator
qh
qk cable, flexible flat
(24 core)
qg tape
1 six claws
4
9
0
2 chuck holder assy (T)
2 Solder the short-land.
qf wire (flat type)
(5 core)
– Bottom view –
loading assy (T)
qd base, lo assy
qj holder, FFC
Note 2: When assembling the optical
pick-up block, remove the solder of
short-land after connecting the
cable, flexible flat (24 core).

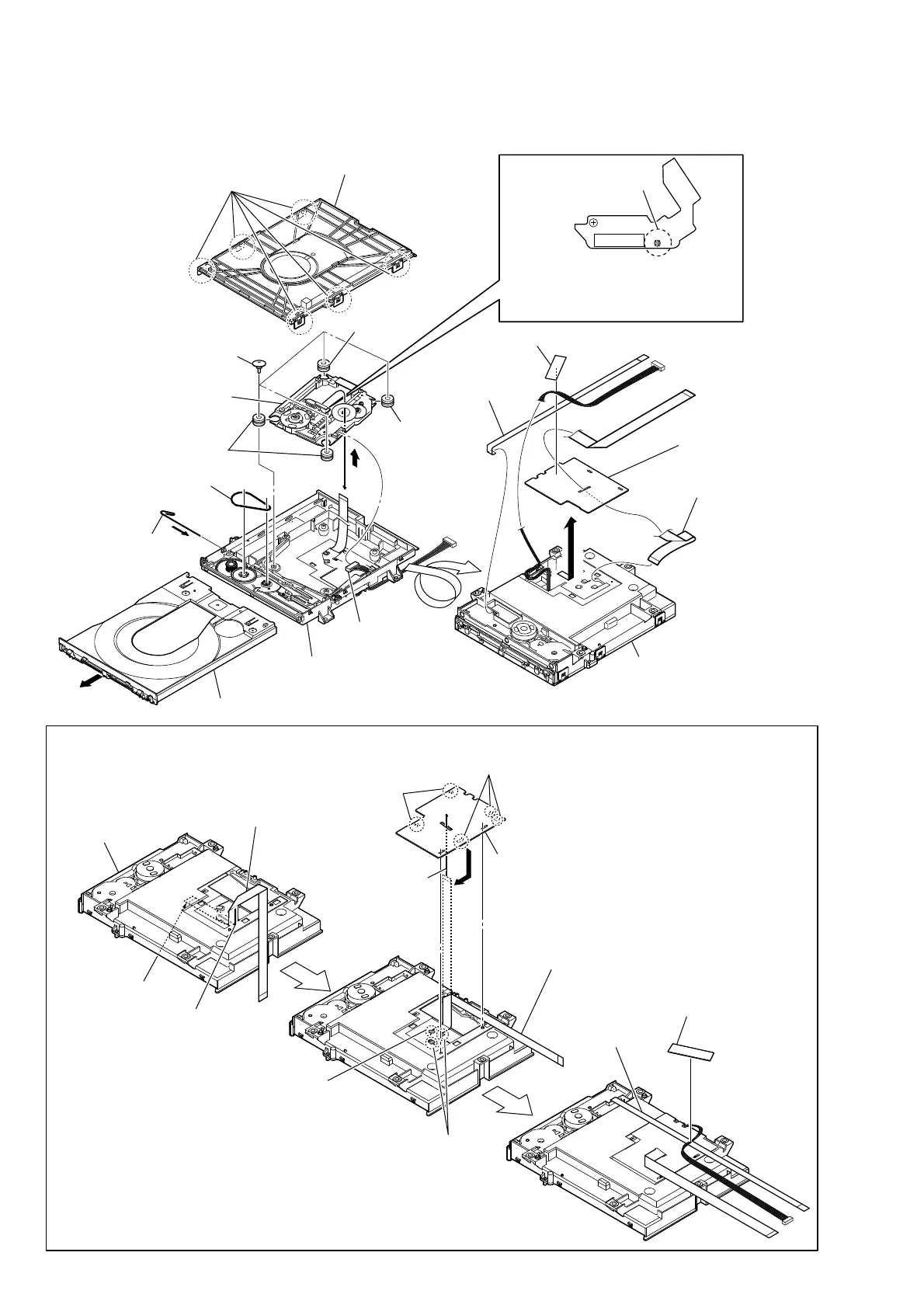

2-9. SERVICE, OPTICAL DEVICE(7G), CABLE, FLEXIBLE FLAT
Note 1 : Before disconnecting the cable, fl exible fl at (24 core) of optical pick-up block, solder the short-land.
Under the guide
Under the guide
(Fold area)
,QVWDOODWLRQRIFDEOHIOH[LEOHIODWFRUHDQGZLUHIODWW\SHFRUH
Note:
This illustration sees the loading assy (T) from bottom side.
1 cable, flexible flat (24 core)
2 Through the hole
3 Through the hole
4
terminal face
loading assy (T)
7 cable, flexible flat
(24 core)
6 holder, FFC
5 three claws
5 two claws
8 wire (flat type)
(5 core)
9 tape
Ver. 1.1
