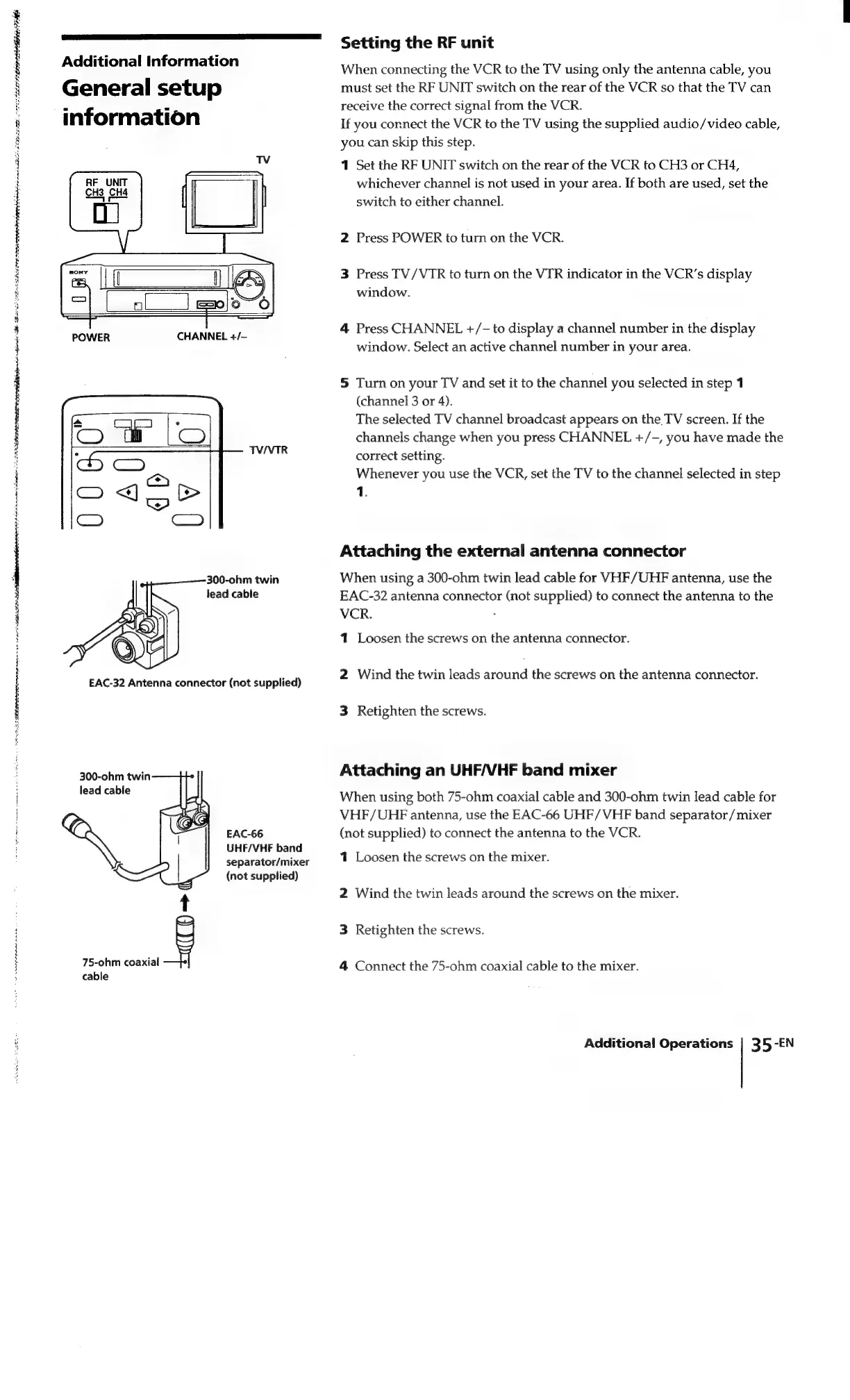

Additional information
General setup
information
TV/VTR
300-ohm twin
lead cable
EAC-32 Antenna connector (not supplied)
300-ohm twin
lead cable
75-ohm coaxial
cable
EAC-66
UHF/VHF band
separator/mixer
(not supplied)
Setting the RF unit
When connecting the VCR to the TV using only the antenna cable, you
must set the RF UNIT switch on the rear of the VCR so that the TV can
receive the correct signal from the VCR.
If you connect the VCR to the TV using the supplied audio/video cable,
you can skip this step.
1 Set the RF UNIT switch on the rear of the VCR to CH3 or CH4,
whichever channel is not used in your area. If both are used, set the
switch to either channel.
2 Press POWER to turn on the VCR.
3 Press TV/VTR to turn on the VTR indicator in the VCR’s display
window.
4 Press CHANNEL +/- to display a channel number in the display
window. Select an active channel number in your area.
5 Turn on your TV and set it to the channel you selected in step 1
(channel 3 or 4).
The selected TV channel broadcast appears on the TV screen. If the
channels change when you press CHANNEL +/-, you have made the
correct setting.
Whenever you use the VCR, set the TV to the channel selected in step
1.
Attaching the external antenna connector
When using a 300-ohm twin lead cable for VHF/UHF antenna, use the
EAC-32 antenna connector (not supplied) to connect the antenna to the
VCR. :
1 Loosen the screws on the antenna connector.
2 Wind the twin leads around the screws on the antenna connector.
3 Retighten the screws.
Attaching an UHF/VHF band mixer
When using both 75-ohm coaxial cable and 300-ohm twin lead cable for
VHF/UHF antenna, use the EAC-66 UHF/VHF band separator/mixer
(not supplied) to connect the antenna to the VCR.
4 Loosen the screws on the mixer.
2 Wind the twin leads around the screws on the mixer.
3 Retighten the screws.
4 Connect the 75-ohm coaxial cable to the mixer.
Additional Operations | 35 -EN
