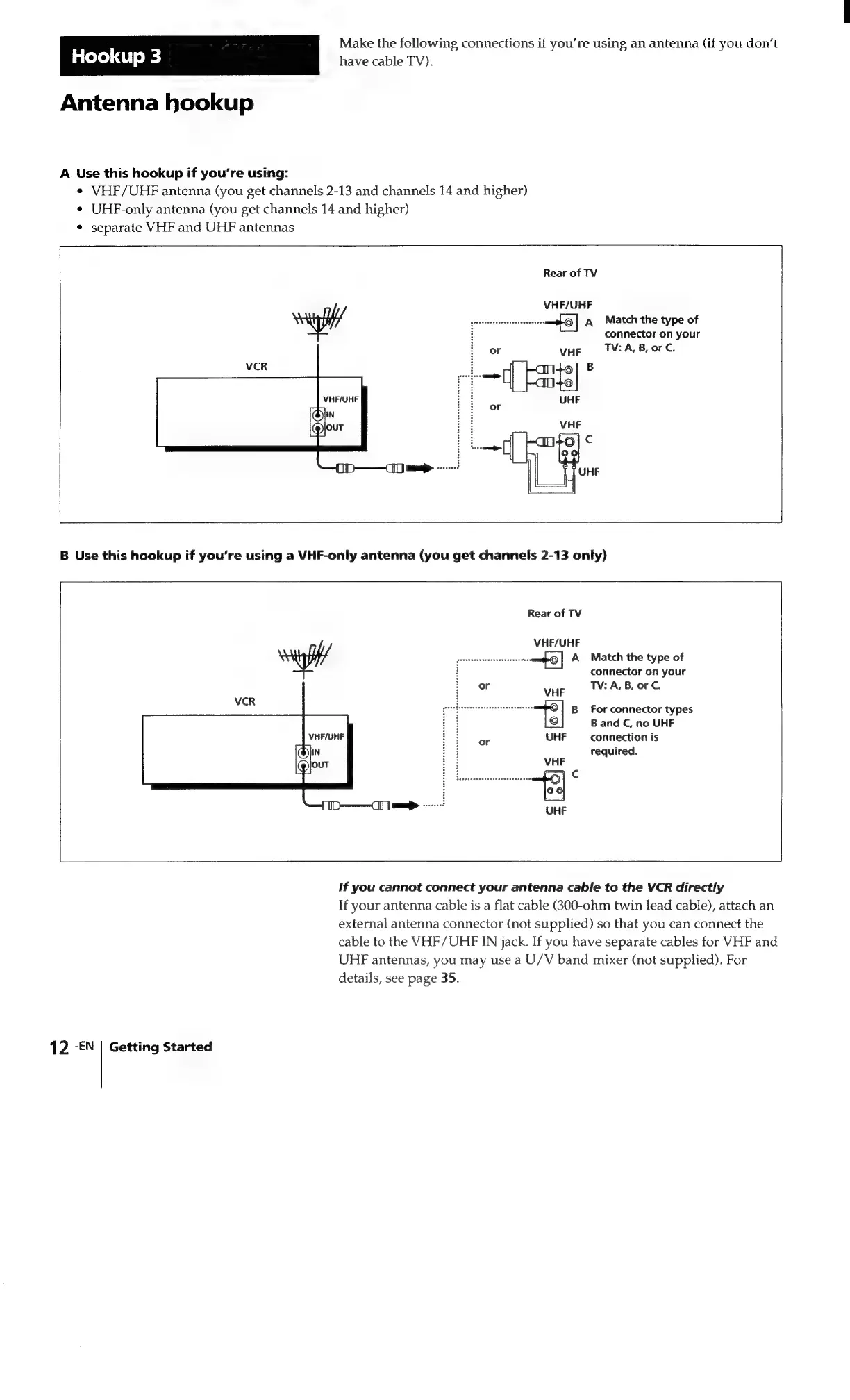

Antenna hookup
A Use this hookup if you're using:
Make the following connections if you’re using an antenna (if you don’t
have cable TV).
¢ VHF/UHF antenna (you get channels 2-13 and channels 14 and higher)
¢ UHF-only antenna (you get channels 14 and higher)
* separate VHF and UHF antennas
wy
VHF/UHF
@®jin
@Jout
Rear of TV
VHF/UHF
aceite lie snag —o| A. Match the type of
i connector on your
TV: A, B, or C.
i or VHF
—({ ESE] °
ii UHF
Sym 3e or
VHF
Cc
Ci) —_- advoased UHF
B Use this hookup if you‘re using a VHF-only antenna (you get channels 2-13 only)
@lin
@JouT
VHF/UHF
Rear of TV
VHF/UHF
Match the type of
connector on your
TV: A, B, or C.
For connector types
B and C, no UHF
or UHF connection is
required.
VHF
Eacdeluctatechabbaceeceess fe C
CD) em «+--+:
12 -EN | Getting Started
If you cannot connect your antenna cable to the VCR directly
If your antenna cable is a flat cable (300-ohm twin lead cable), attach an
external antenna connector (not supplied) so that you can connect the
cable to the VHF/UHF IN jack. If you have separate cables for VHF and
UHF antennas, you may use a U/V band mixer (not supplied). For
details, see page 35.
