Error Messages/Warning Messages/Condition Messages
Appendix
Only one message will be displayed even if there are
multiple messages. The number of errors appears at the
lower right, and you can check the messages using the R
and r buttons.
A history of errors is kept in the error log menu.
For more information about warning messages, refer to
the Maintenance Manual.
Use the displayed warning information to eliminate the
cause of the warning.
For more information about eliminating the cause of
warning, refer to the Maintenance Manual.
To automatically display a warning message
Whenever a warning occurs, change the setting of the VTR
SETUP menu item 120 “WARNING DISPLAY” to “on”.
To clear a warning message
To cancel the display of a warning message, see “Clearing
warning messages” on page 147.
Item number Display Meaning
01 NO EXTERNAL REFERENCE There is no reference signal on the selected REF. INPUT
connector. The VTR is using an internal reference signal.
02 LOST LOCK Capstan servo lock was lost during playback, recording, or editing.
03 NO EXTERNAL REFERENCE ON
FC
When the VTR SETUP menu item A05 “PD EXT SD REF LOCK
MODE” is set to “lock1” or “lock2”, no external SD reference signal
is input.
04 HD & SD REF ASYNCHRONOUS When the VTR SETUP menu item A05 “PD EXT SD REF LOCK
MODE” in is set to “lock1” or “lock2”, HD reference signal and
external SD reference signal are not synchronized.
05 PLL UNLOCK ON FC The PLL of the HKSR-5001 is not locked on the reference signal.
08 NO SDI INPUT An SDI input signal cannot be detected.
10 VITC NOT READ VITC cannot be correctly read from the tape.
11 AUDIO PLL UNLOCKED Audio lock generator PLL not locked to the video reference signal.
14 NO PB RF SIGNAL Playback heads cannot correctly read digital data from the tape.
15 INCONSISTENT EMPHASIS Emphasis information on the tape is inconsistent with the system
emphasis status.
16 INCONSISTENT FORMAT OF META
DATA
The meta data being input and the meta data recorded on the tape
have different formats.
17 PB FREQUENCY IS UNSUITABLE The cassette is ejected automatically in line with the setting of the
VTR SETUP menu item 018 “AUTO EJECT LEVEL” because the
system frequency of the VTR and the frequency of the signal
recorded on the tape do not match.
19 NO A1/A2 INPUT No carrier detected on digital audio input on channels 1 and 2
1A NO A3/A4 INPUT No carrier detected on digital audio input on channels 3 and 4
1B NO A5/A6 INPUT No carrier detected on digital audio input on channels 5 and 6.
1C NO A7/A8 INPUT No carrier detected on digital audio input on channels 7 and 8.
1D NO A9/A10 INPUT No carrier detected on digital audio input on channels 9 and 10.
Warning message
INS
AUDIO
INS
CUE
off
HOME
STANDBY OFF
PB/EE
RECINH
off
ASSEM-
BLE
off
INS
TC
off
INS
VIDEO
off

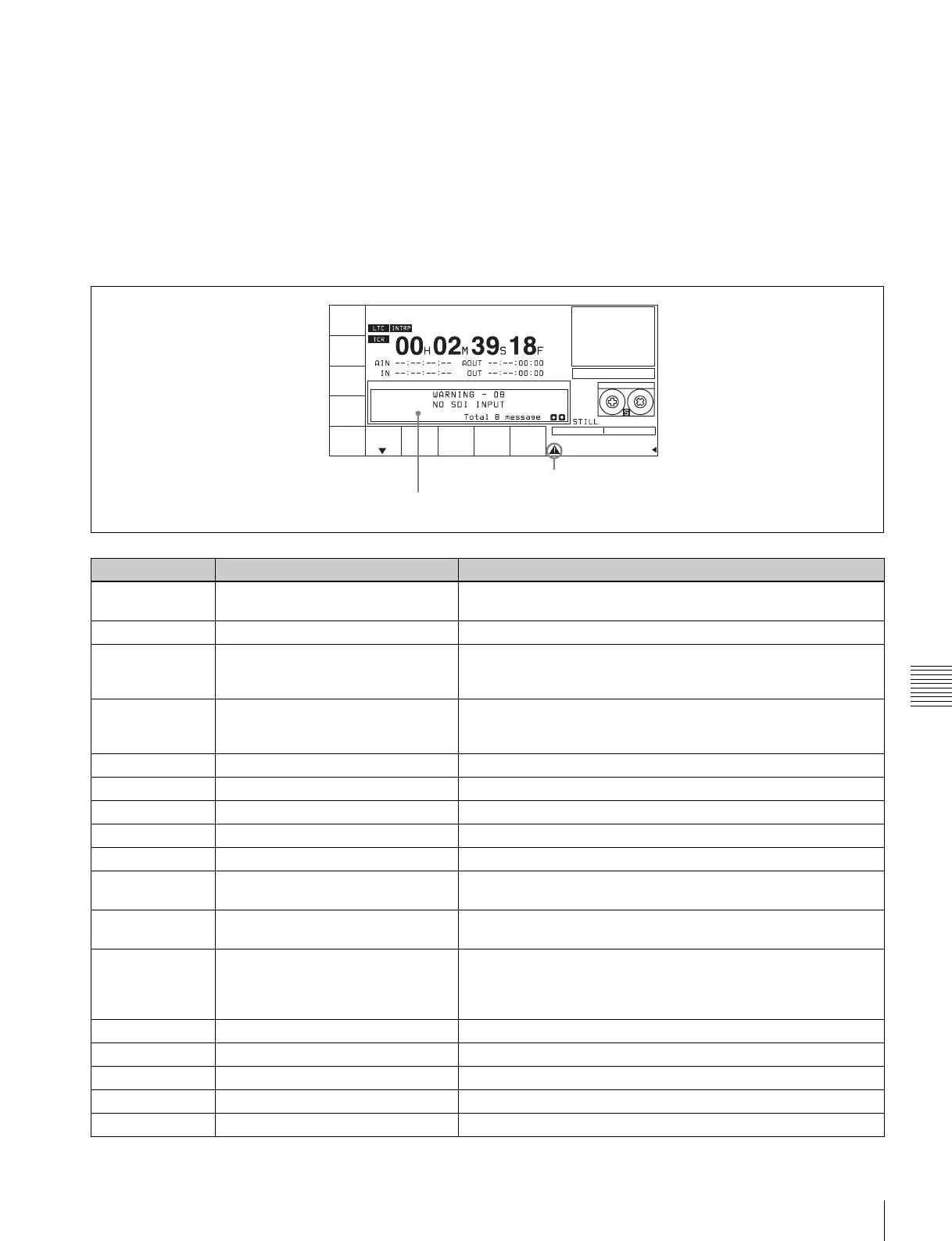

Warning mark
