SSC-DC593/DC593P/DC598P (E)
Section 3
Adjustment
3-1. Preparations
3-1-1. Adjusting Fixtures and Measurement
Equipment
..
..

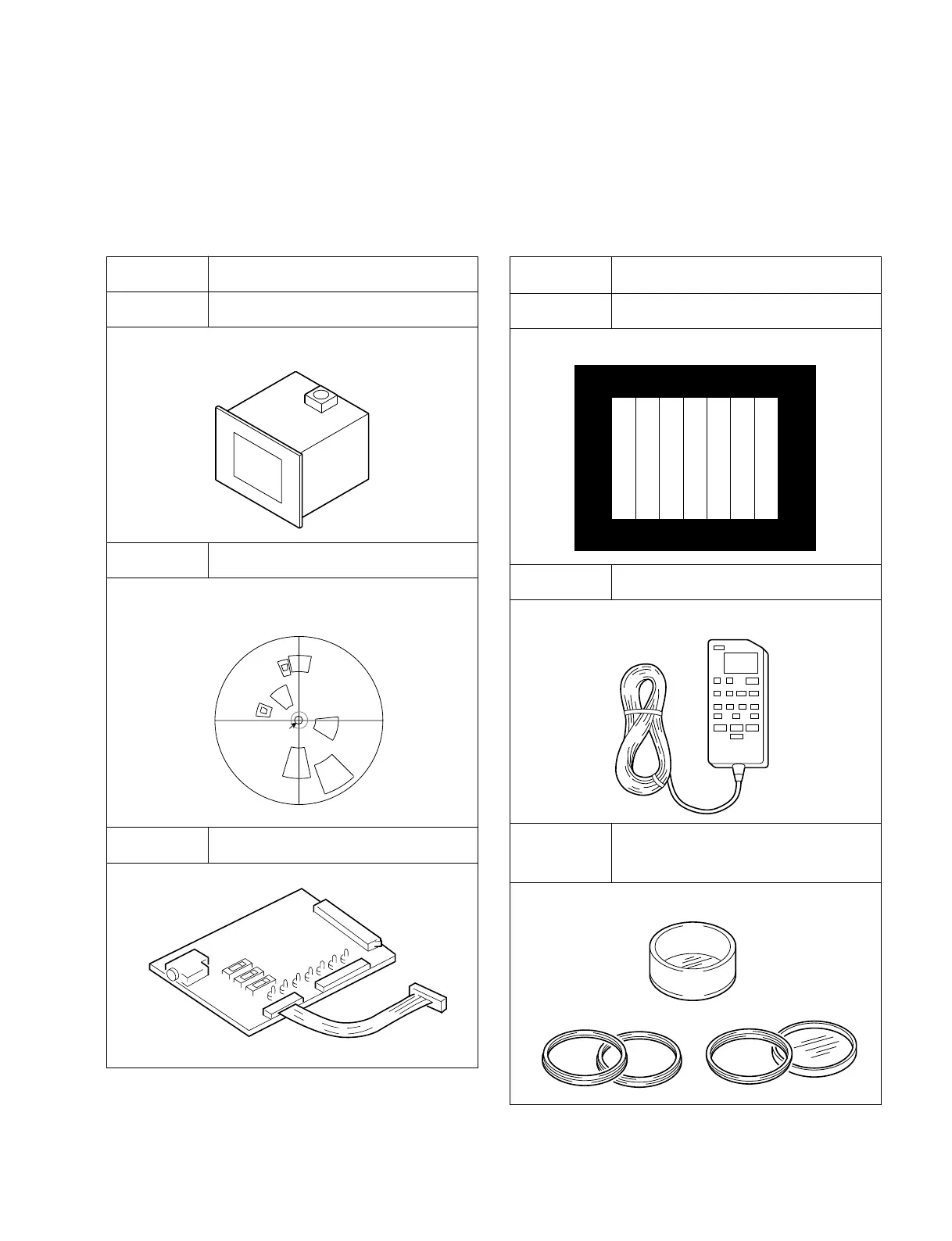

. Light source for adjustment chart
J-6029-250-A Color bar chart (For PTB-500)
J-6027-100-A Color bar chart (For PTB-700)
J-6082-053-B Camera adjustment commander
J-6080-058-A Color temperature correction filter
(C14 filter)
..
..
. For color reproduction adjustment
This scale is printed on the back cover paper.
..
..
. For color reproduction adjustment
..
..
. Partial remodeling of RM-95
..
..
. Used for checking after adjustment.
R
YL
G
B
WB
CB
CY
MG
R-Y
B-Y
5600K
J-6431-100-A
. ND Filter
ND25 (25%) 50 mm square (manufactured by Kenko)
* Overlap the two sheets of filter to set the
transmittance at 6.25%.
WGC Y YI M g RB
. Oscilloscope . Vectorscope
. Frequency counter . Waveform monitor
. Digital voltmeter . Color monitor
J-6029-140-B Pattern Box (For PTB-500)
J-6431-850-A Pattern Box (For PTB-700)
J-6432-100-A Vectorscope scale
J-6432-830-A Adjustment commander relay tool
