SSC-DC593/DC593P/DC598P (E)
3-3-7. WB Adjustment (3200K Preset and
WB Data Reading)
1. Press the step forward button of the commander one
time. Then, “1E” appears on the mode display.
2. Set the lens aperture of the VIDEO OUT image level
to the following specification.
Subject: 100% white pattern
Measuring point: Image level of VIDEO OUT
Measuring equipment: Waveform monitor
Mode display: 1E
Specification: 65 ±3 IRE
(SSC-DC593)
455 ±20 mV
(SSC-DC593P/DC598P)
3. While changing the mode display between “1E” and
“1F” alternately using the mode display change button,
adjust so that the white luminescent spot matches with
the Vectorscope starting point using the data change
button.
Subject: 100% white pattern
Measuring point: White luminescent spot of
VIDEO OUT
Measuring equipment: Vectorscope
Mode display: 1E, 1F
Specification: White luminescent spot
matches with the Vectorscope
starting point.

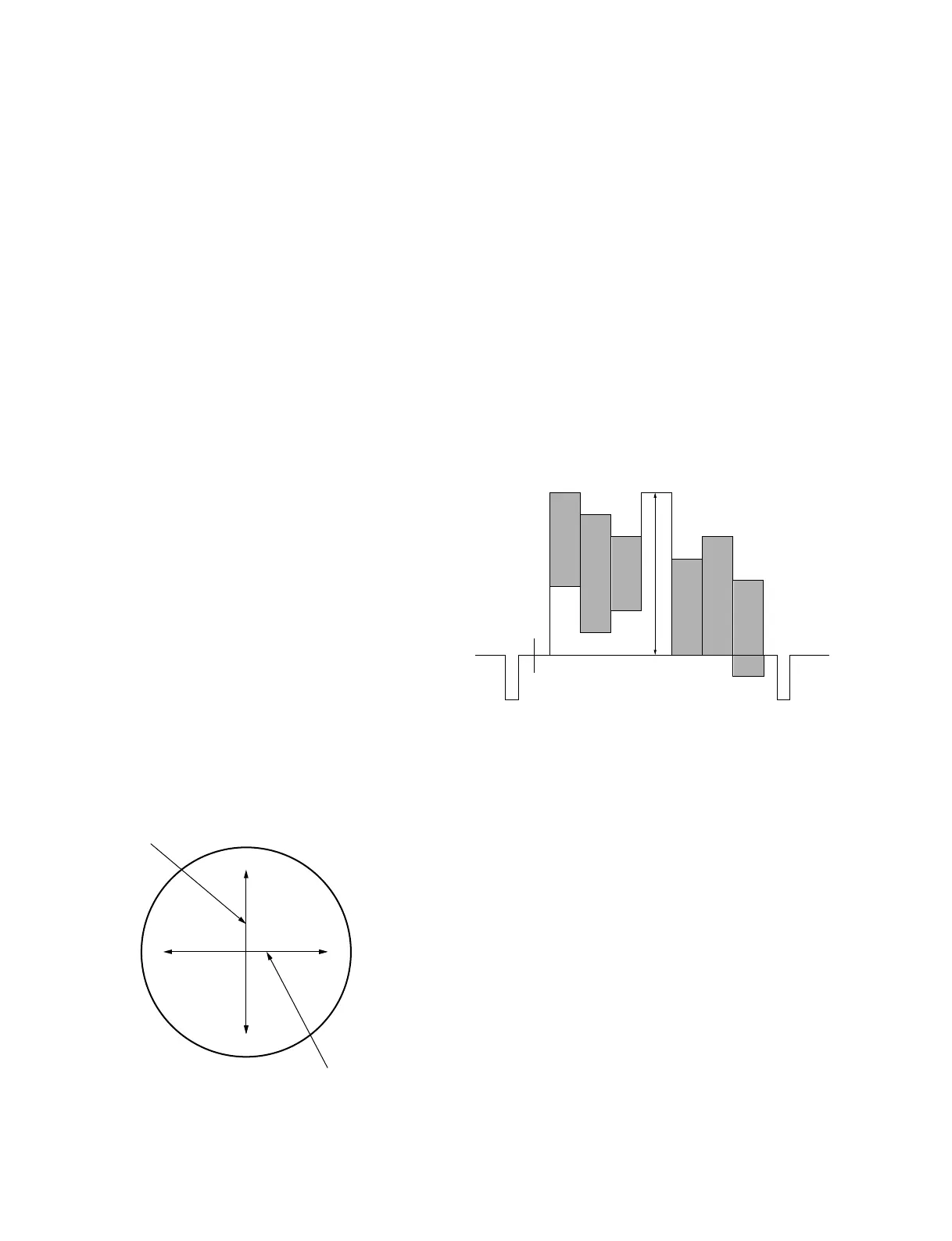

Moving direction of white
luminescent spot when “1E” is
displayed on the mode display.
Moving direction of white
luminescent spot when “1F” is
displayed on the mode display.
White image level
3-3-8. Color Reproduction Adjustment
1. Press the step forward button of the commander one
time. Then, “0C” appears on the mode display.
2. Shoot the image of color bar chart.
3. Set the lens aperture of the VIDEO OUT white level to
the following specification.
Subject: Color bar chart
Measuring point: Image level of VIDEO OUT
Measuring equipment: Waveform monitor
Mode display: 0C
Specification: 90 ±2.5 IRE
(SSC-DC593)
630 ±15 mV
(SSC-DC593P/598P)
To Next Page
